Description

Price

1

BOLT,8X45

92001-1449

$6.57

2

BOLT,8X50

92001-1439

Unavailable

3

HOLDER,STEP,R,H

34003-1077

Unavailable

4

STEP,FOOTREST,L.H.

34028-1011

Unavailable

5

STEP,FOOTREST,R.H.

34028-1012

Unavailable

6

SPRING,L.H FOOTREST

92081-1288

Unavailable

7

SPRING,R.H FOOTREST

92081-1289

Unavailable

8

PIN,8X35.5

92043-115

$9.51

9

PIN COTTER 2.5X16

550D2516

$2.79

10

NUT,8MM

92015-1143

$0.65

11

STAND-SIDE

34024-1053

Unavailable

12

SPRING,STAND

34025-005

$7.58

13

BOLT-UPSET,10X30

112G1030

Unavailable

14

NUT-HEX-FINE,10MM

315B1000

$0.58

15

GUARD,BRAKE ROD

55020-1058

Unavailable

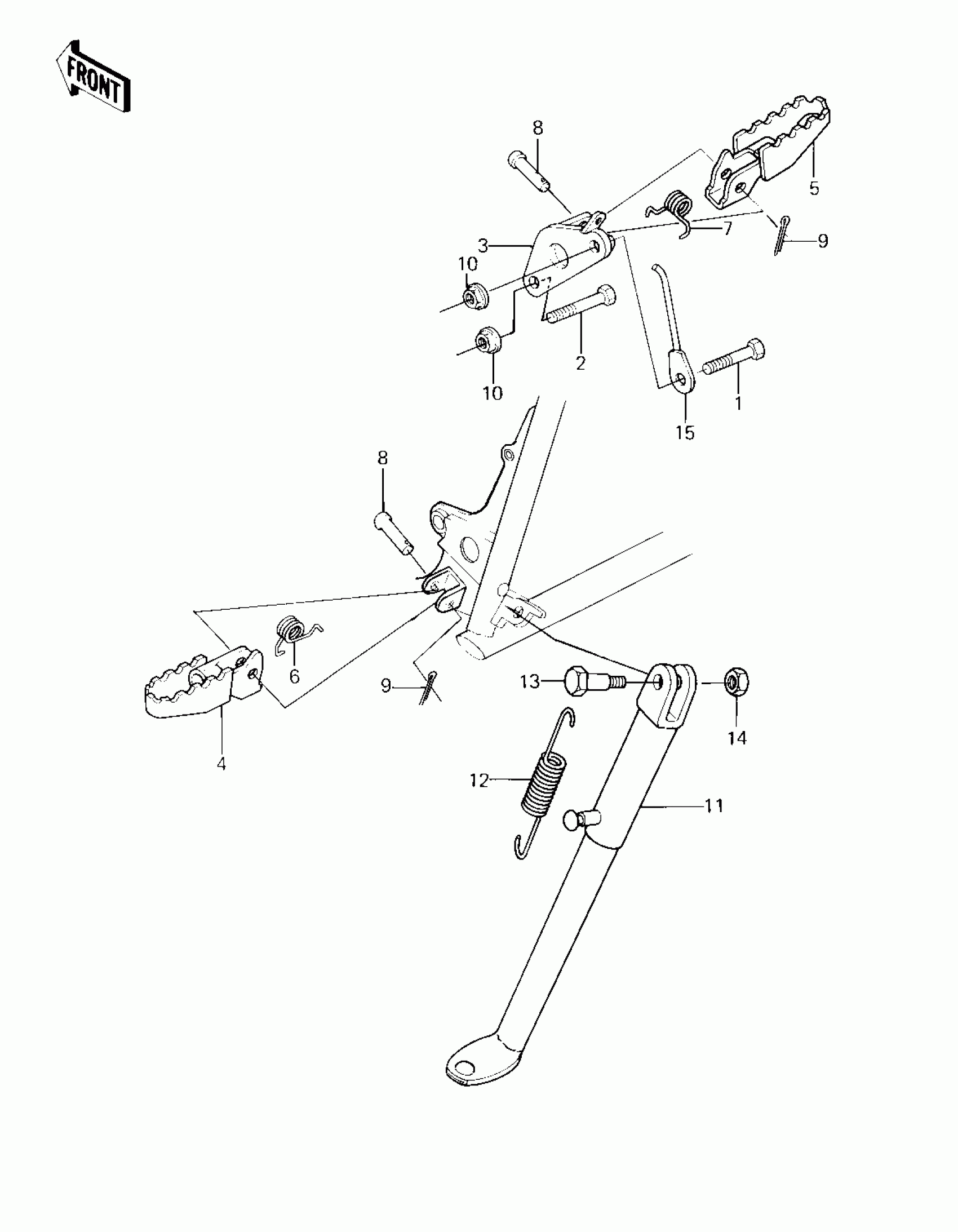

Kawasaki KX80 FOOTRESTS/STAND Diagram

BOLT,8X45

BOLT,8X50

HOLDER,STEP,R,H

STEP,FOOTREST,L.H.

STEP,FOOTREST,R.H.

SPRING,L.H FOOTREST

SPRING,R.H FOOTREST

PIN,8X35.5

PIN COTTER 2.5X16

NUT,8MM

STAND-SIDE

SPRING,STAND

BOLT-UPSET,10X30

NUT-HEX-FINE,10MM

GUARD,BRAKE ROD
