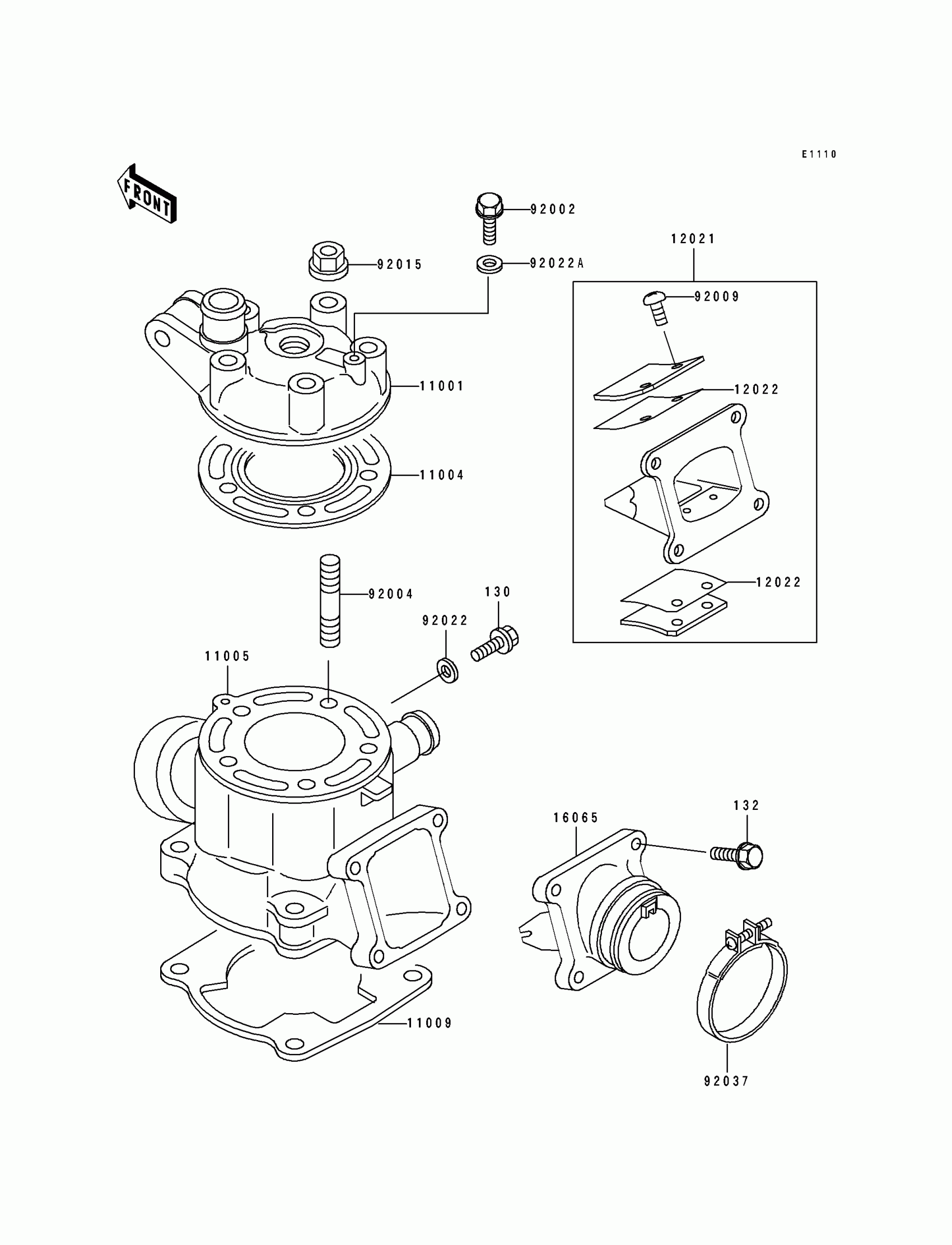

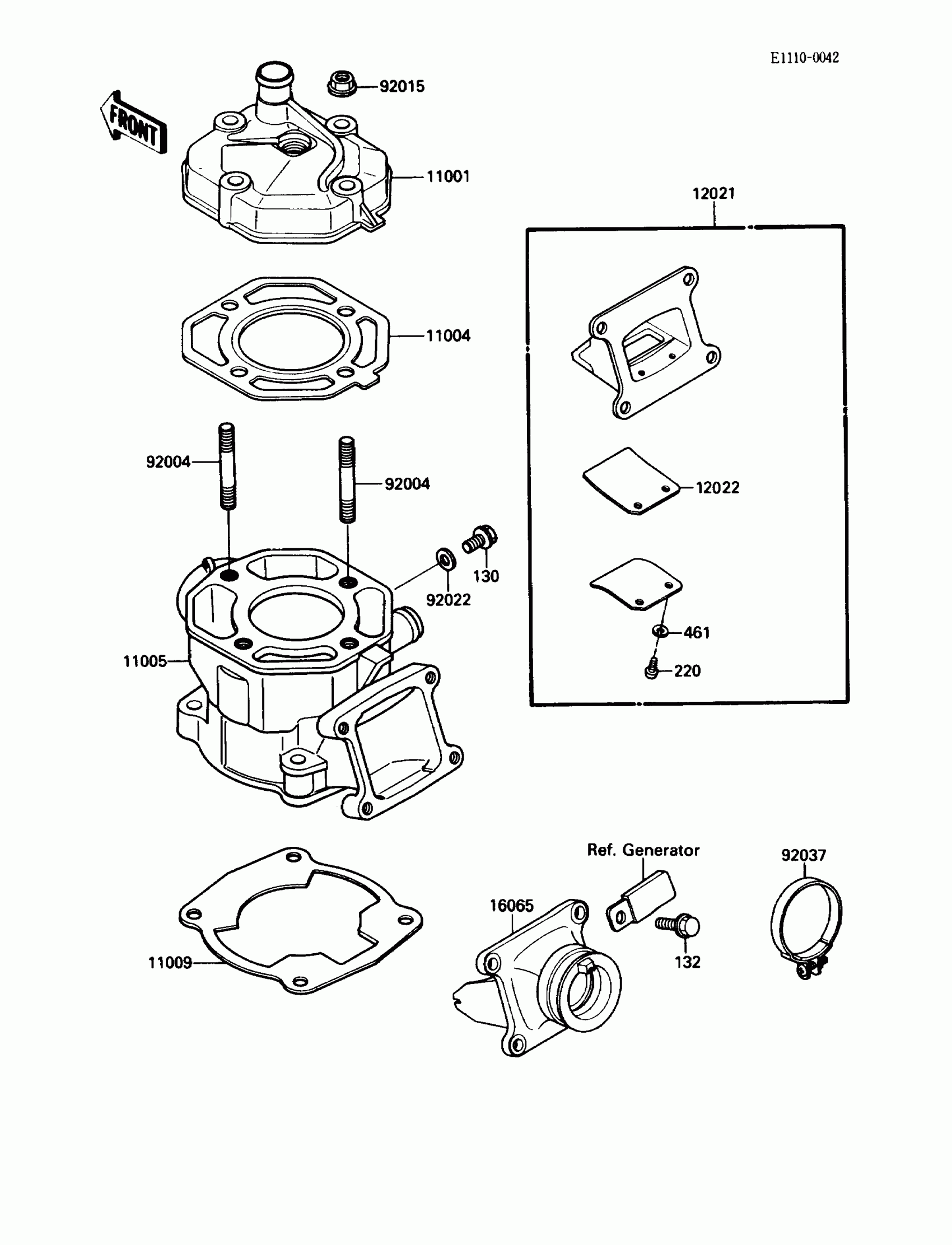

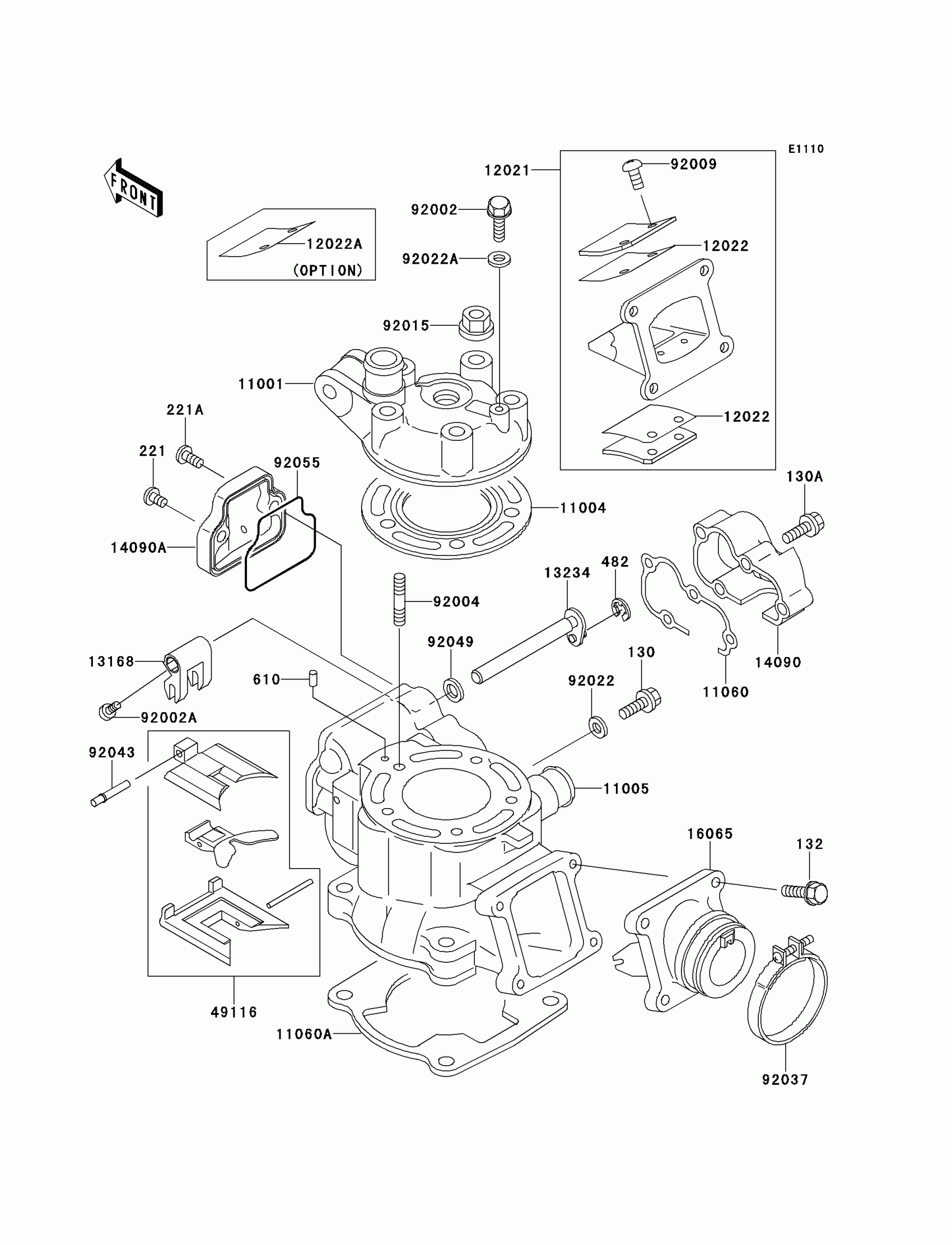

Kawasaki KX80 Cylinder Head/Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED

130G0525

$0.64

132

BOLT-FLANGED-SMALL

132G0620

$2.33

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

221A

SCREW-CSK-CROS,6X20

221B0620

$2.40

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

610

ROLLER,4X8

610A0408

$4.31

11001

HEAD-CYLINDER

11001-1460

Unavailable

11004

GASKET-HEAD

11004-1213

$41.12

11005

CYLINDER-ENGINE

11005-1844

$595.14

11060

GASKET,GOVERNOR COVER

11060-1778

$5.85

11060A

GASKET,CYLINDER BASE

11060-1779

$7.55

12021

VALVE-ASSY-REED

12021-1114

$108.89

12022

VALVE-REED,T=0.42

12022-1054

$19.45

12022A

VALVE-REED,T=0.37,CARBON

12022-1086

Unavailable

13168

LEVER,MAIN VALVE

13168-1499

$91.49

13234

SHAFT-COMP

13234-1105

$36.31

14090

COVER

14090-1811

$32.00

14090A

COVER

14090-1812

$25.14

16065

HOLDER-CARBURETOR

16065-1224

$78.78

49116

VALVE-ASSY

49116-1162

$132.05

92002

BOLT,6X10

92002-1222

$8.10

92002A

BOLT,SOCKET,4X8

92002-1403

$3.32

92004

STUD,8X33

92004-1253

$4.65

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,8MM

92015-1143

$0.65

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1843

$8.58

92043

PIN,MAIN VALVE

92043-1470

$4.92

92049

SEAL-OIL,SD088144

92049-1238

$10.46

92055

RING-O

92055-1566

$15.51
