Description

Price

220

SCREW PAN HEAD 5X8

220B0508

$0.46

311

NUT 6MM

311B0600

$0.93

11012

CAP

11012-1263

$16.53

12053

GUIDE-CHAIN,RR

12053-1436

$33.13

12053A

GUIDE-CHAIN,FR

12053-1456

$64.18

13070

GUIDE,CHAIN

13070-1347

$24.91

33001

ARM-COMP-SWING,P.SILVER

33001-1634-458

$249.77

33032

SHAFT-SWING ARM

33032-1194

$27.61

33040

ADJUSTER-CHAIN

33040-1188

$10.30

42036

SLEEVE,SWING ARM,L=34

42036-1067

$10.65

92001

BOLT,6X39

92001-1463

$4.69

92003

BOLT,FLANGED,6X48

92003-179

$1.03

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE

92046-1046

$27.88

92143

COLLAR

92143-1676

$6.22

92152

COLLAR

92152-1215

$7.36

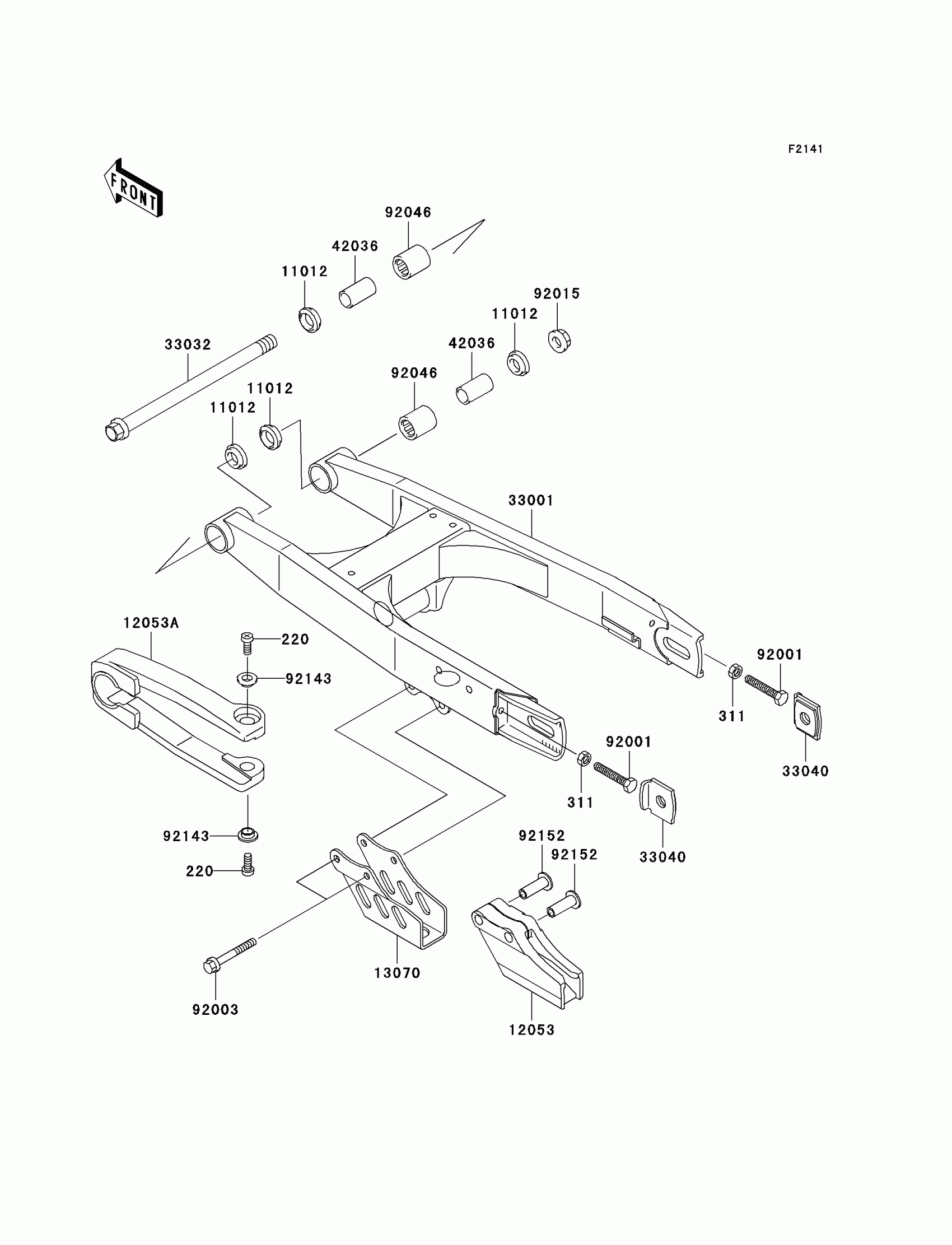

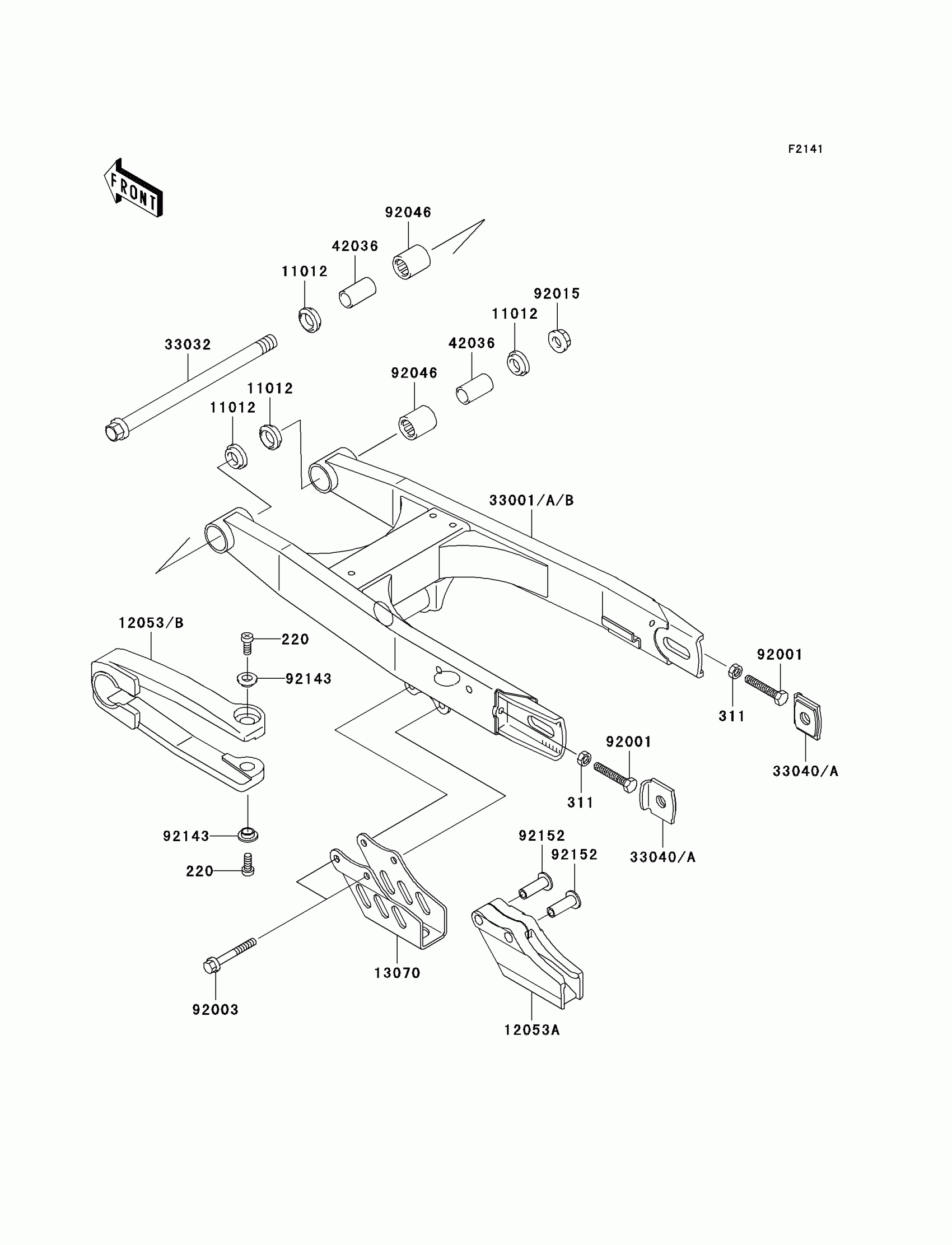

Kawasaki KX65 Swingarm Diagram

SCREW PAN HEAD 5X8

NUT 6MM

CAP

GUIDE-CHAIN,RR

GUIDE-CHAIN,FR

GUIDE,CHAIN

ARM-COMP-SWING,P.SILVER

SHAFT-SWING ARM

ADJUSTER-CHAIN

SLEEVE,SWING ARM,L=34

BOLT,6X39

BOLT,FLANGED,6X48

NUT,LOCK,FLANGED,12MM

BEARING-NEEDLE

COLLAR

COLLAR
