Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL

132G0614

$1.42

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

11060

GASKET,FUEL TANK CAP

11060-1340

$6.16

43049

PACKING,TAP VALVE

43049-1091

$7.26

51001A

TANK-COMP-FUEL,F.BLACK

51001-1676-6Z

$391.99

51023

TAP-ASSY,FUEL

51023-1339

Unavailable

51044

TUBE-ASSY

51044-1185

$17.39

51048

CAP-ASSY-TANK,FUEL

51048-1124

$54.33

59231

FILLER

59231-1096

$6.16

92022

WASHER,6.5X24X2

92022-1690

$3.92

92055

RING-O,FUEL TAP PACKING

92055-1348

$7.34

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92072

BAND,FUEL TANK

92072-1229

$12.74

92075

DAMPER

92075-1787

$6.57

92161

DAMPER,FUEL TANK,RR

92161-1077

$17.76

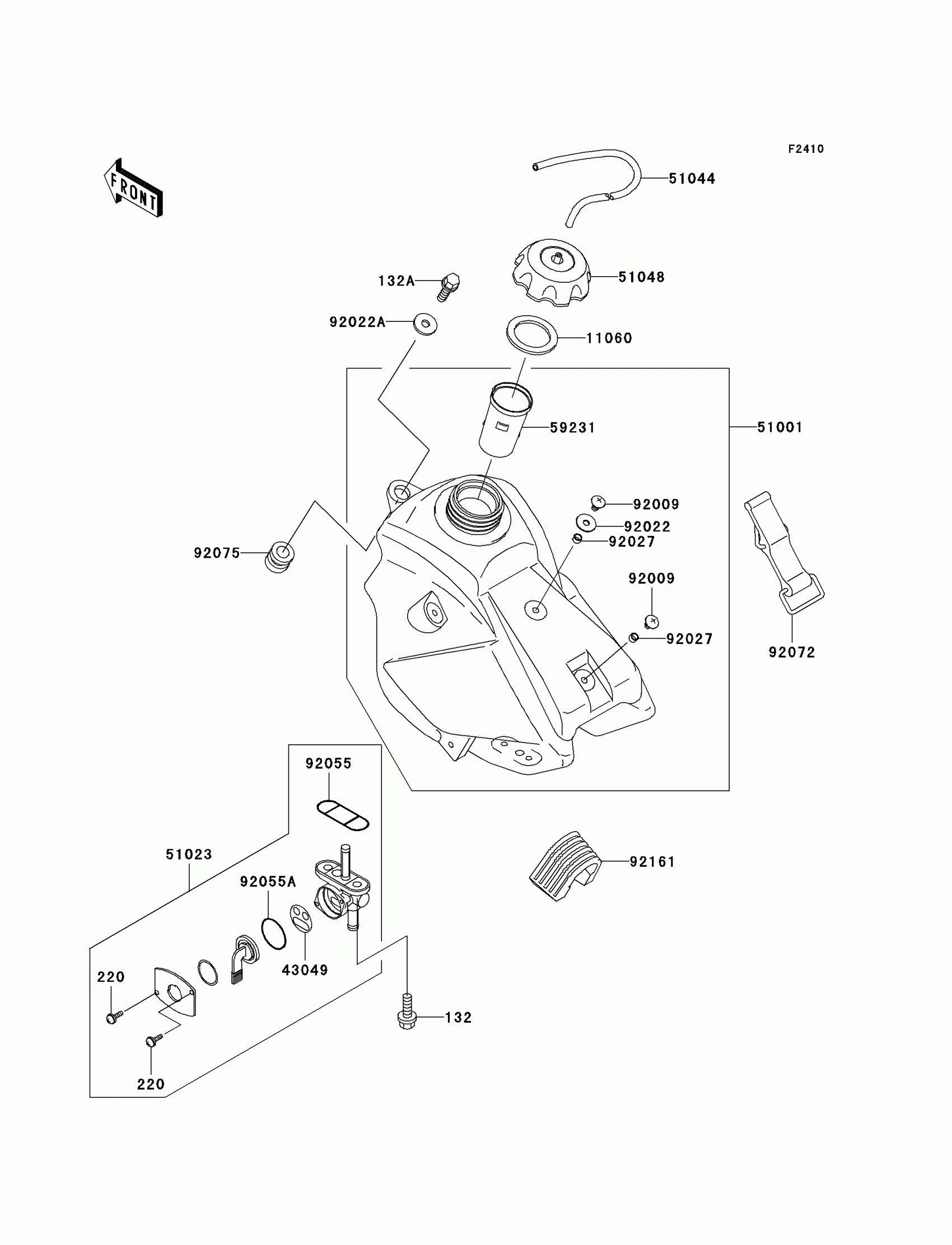

Kawasaki KX65 Fuel Tank Diagram

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL

SCREW-PAN-CROS,3X8

GASKET,FUEL TANK CAP

PACKING,TAP VALVE

TANK-COMP-FUEL,F.BLACK

TAP-ASSY,FUEL

TUBE-ASSY

CAP-ASSY-TANK,FUEL

FILLER

WASHER,6.5X24X2

RING-O,FUEL TAP PACKING

RING-O,TAP LEVER

BAND,FUEL TANK

DAMPER

DAMPER,FUEL TANK,RR
