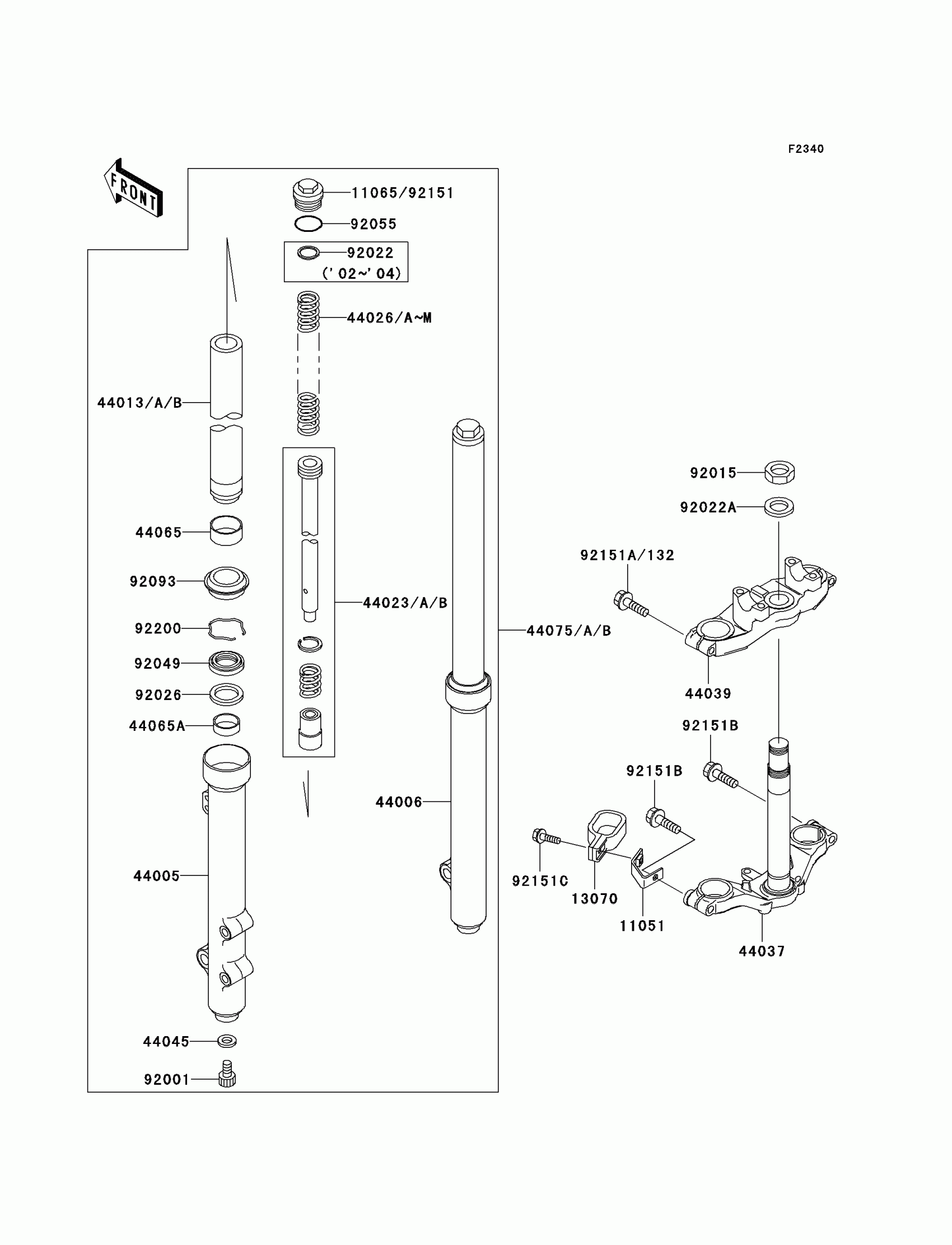

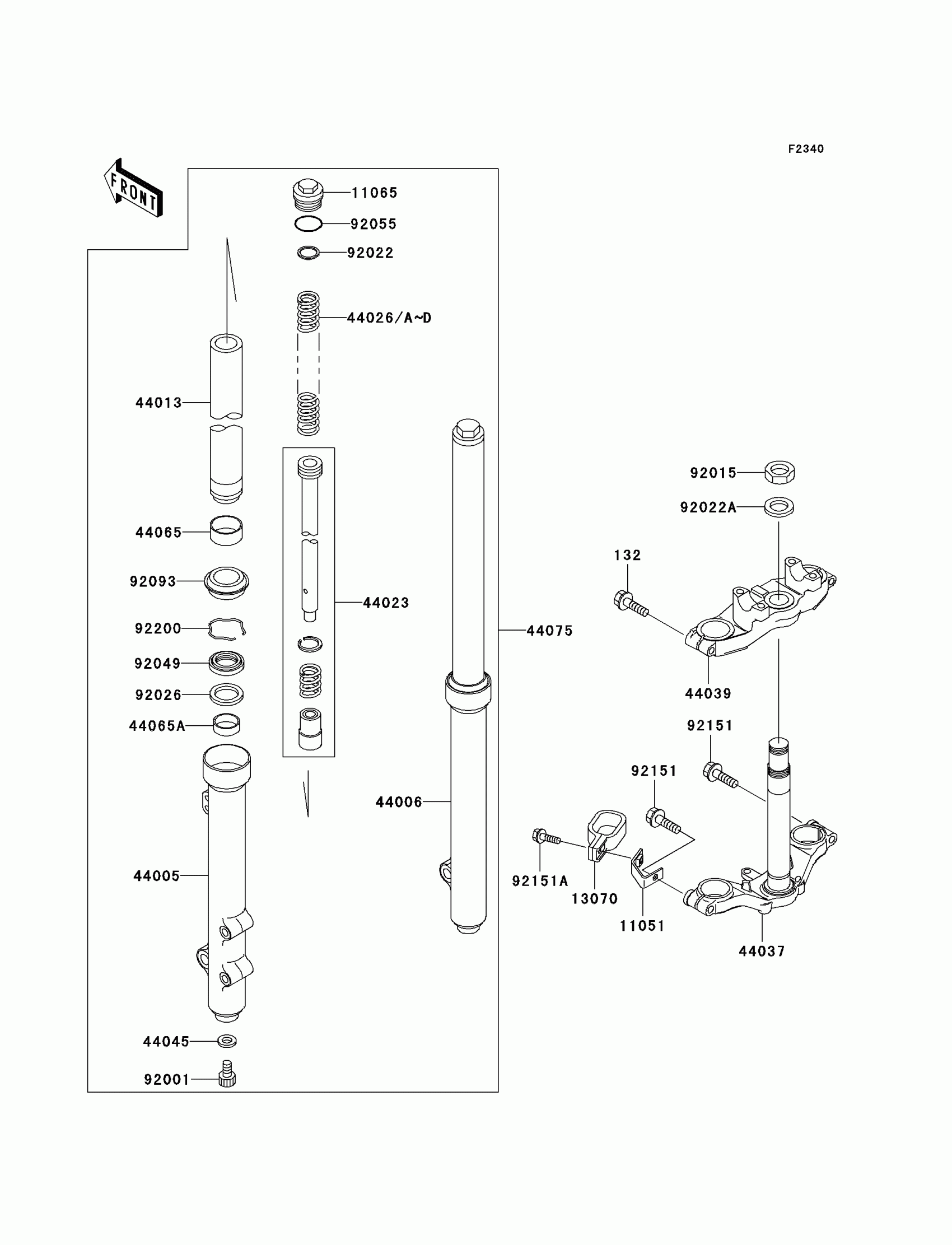

Kawasaki KX65 Front Fork Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL
132G0835
$4.44
11051
BRACKET,BRAKE HOSE GUIDE
11051-1892
$15.99
11065
CAP,FORK TOP
11065-1225
$72.01
13070
GUIDE,BRAKE HOSE
13070-1349
$9.11
44005
PIPE-LEFT FORK OUTER
44005-1404
$230.36
44006
PIPE-RIGHT FORK OUTER
44006-1402
$209.19
44013
PIPE-FORK INNER
44013-1496
$204.72
44023
CYLINDER-SET-FORK
44023-1161
$66.30
44026
SPRING-FRONT FORK,K=2.55N/MM
44026-1735
$46.06
44026A
SPRING-FRONT FORK,K=2.65N/MM
44026-1736
$46.06
44026B
SPRING-FRONT FORK,K=2.75N/MM
44026-1737
$46.06
44026C
SPRING-FRONT FORK,K=2.84N/MM
44026-1738
$46.06
44026D
SPRING-FRONT FORK,K=2.45N/MM
44026-1739
$46.06
44037
HOLDER-FORK UNDER,P.SILVER
44037-0023-458
$294.93
44039
HOLDER-FORK UPPER,P.SILVER
44039-0022-458
$222.86
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK,INNER PIPE
44065-1123
$17.32
44065A
BUSHING-FRONT FORK
44065-1133
$17.60
44075
DAMPER-SET-FORK
44075-1158
Unavailable
92001
BOLT,FORK CYLINDER
92001-1464
$6.22
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92022
WASHER,FORK SPRING
92022-1841
$10.16
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92026
SPACER
92026-1365
$9.73
92049
SEAL-OIL,FORK OUTER TUBE
92049-1524
$17.76
92055
RING-O,FORK TOP
92055-1367
$5.74
92093
SEAL,FORK OUTER TUBE
92093-1519
$17.32
92151
BOLT,FLANGED,10X35
92151-1636
$10.49
92151A
BOLT,FLANGED,5X16
92151-1637
$4.13
92200
WASHER
92200-1496
$6.00
