Description

Price

13127A

SHAFT-TRANSMISSION INPUT,13T

13127-1105

$128.85

13128

SHAFT-TRANSMISSION OUTPUT

13128-1028

$137.91

13129

GEAR,INPUT 2ND,16T

13129-1215

$65.22

13129A

GEAR,INPUT 3RD&4TH,18

13129-1342

Unavailable

13129B

GEAR,INPUT 5TH,23T

13129-1343

$75.08

13129C

GEAR,INPUT TOP,24T

13129-1344

Unavailable

13129D

GEAR,OUTPUT 2ND,34T

13129-1345

$81.44

13129E

GEAR,OUTPUT 3RD,31T

13129-1346

Unavailable

13129F

GEAR,OUTPUT 4TH,30T

13129-1347

Unavailable

13129G

GEAR,OUTPUT 5TH,28T

13129-1348

$78.57

13129H

GEAR,OUTPUT TOP,26T

13129-1349

$78.57

13129I

GEAR,OUTPUT LOW,37T

13129-1515

$75.08

13144

SPROCKET-OUTPUT,13T

13144-1023

Unavailable

92027

COLLAR,20X25X12.5

92027-1077

$20.77

92033

RING-SNAP,18MM

92033-029

$9.82

92033A

RING-SNAP,17MM

92033-1060

$4.26

92033B

RING-SNAP,18MM

92033-1079

$4.26

92055

RING-O,17.5X1.5

92055-022

$6.22

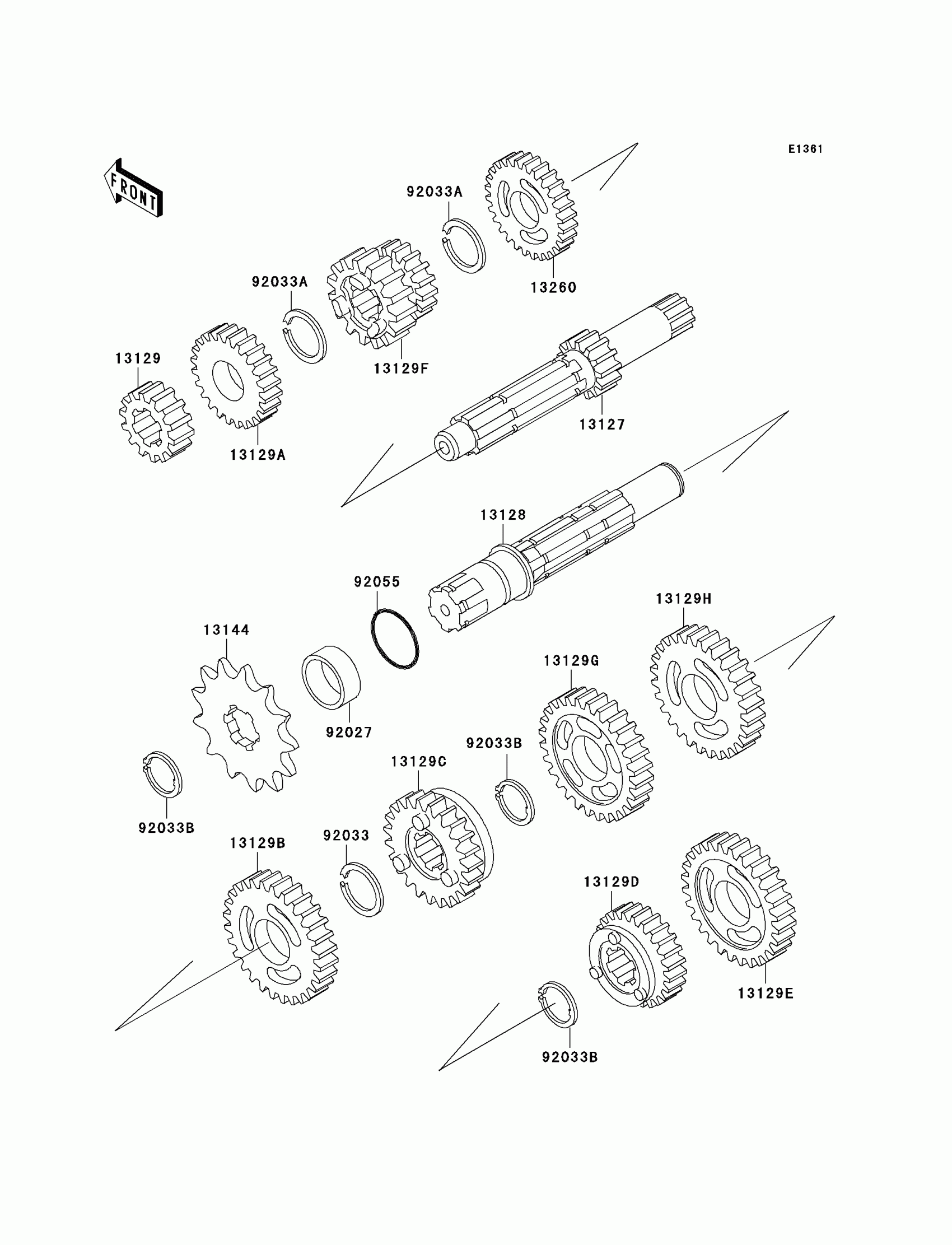

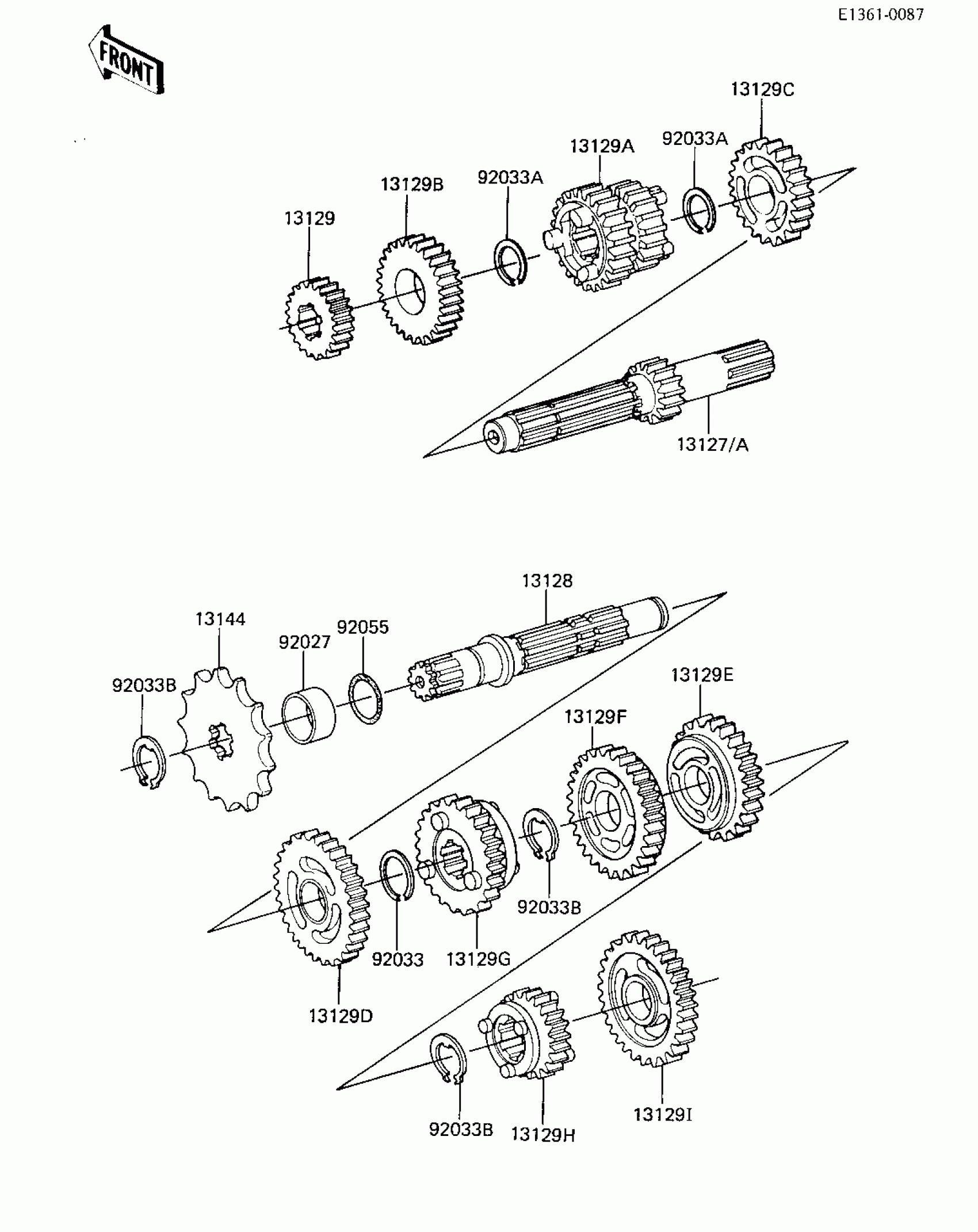

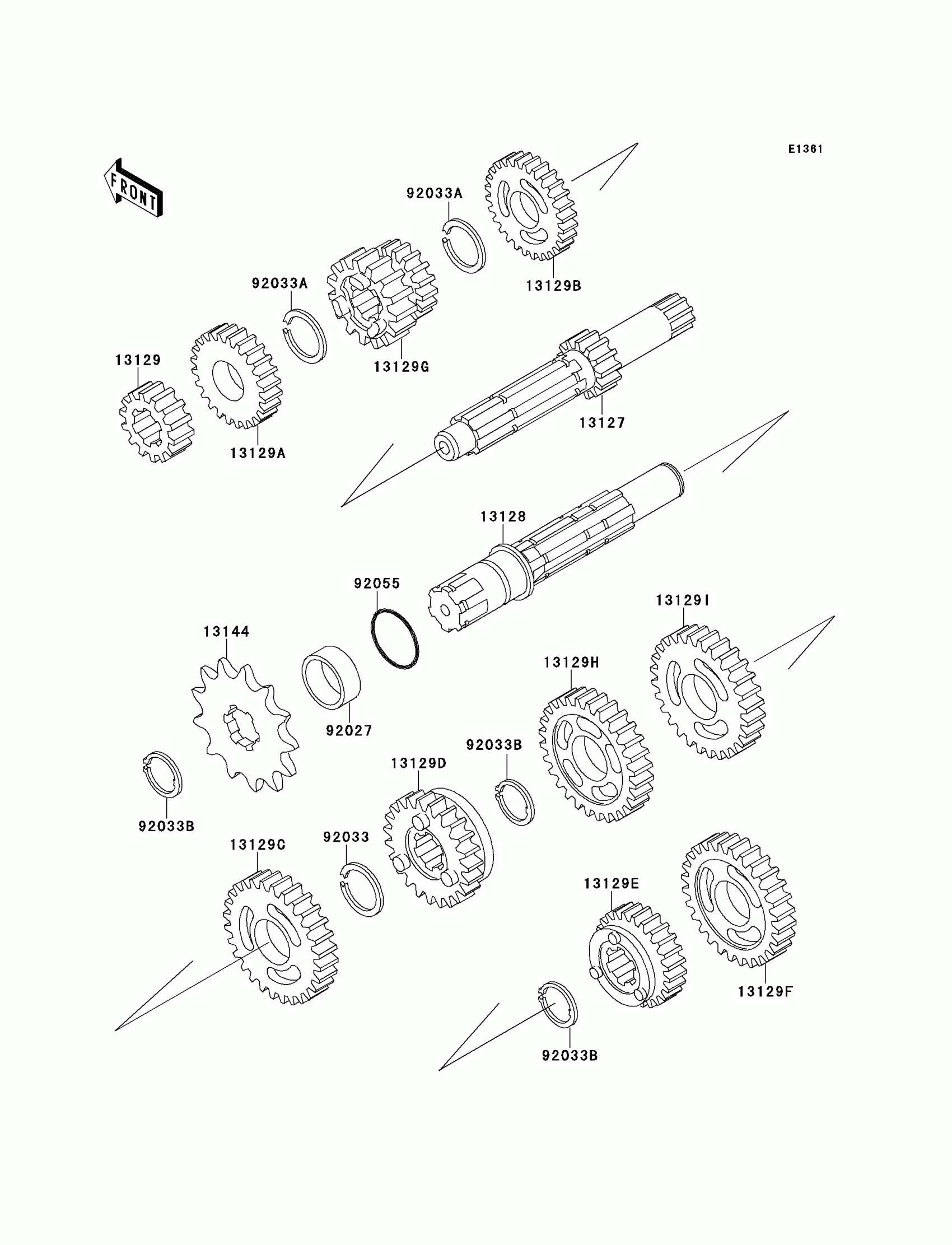

Kawasaki KX60 TRANSMISSION Diagram

SHAFT-TRANSMISSION INPUT,13T

SHAFT-TRANSMISSION OUTPUT

GEAR,INPUT 2ND,16T

GEAR,INPUT 3RD&4TH,18

GEAR,INPUT 5TH,23T

GEAR,INPUT TOP,24T

GEAR,OUTPUT 2ND,34T

GEAR,OUTPUT 3RD,31T

GEAR,OUTPUT 4TH,30T

GEAR,OUTPUT 5TH,28T

GEAR,OUTPUT TOP,26T

GEAR,OUTPUT LOW,37T

SPROCKET-OUTPUT,13T

COLLAR,20X25X12.5

RING-SNAP,18MM

RING-SNAP,17MM

RING-SNAP,18MM

RING-O,17.5X1.5
