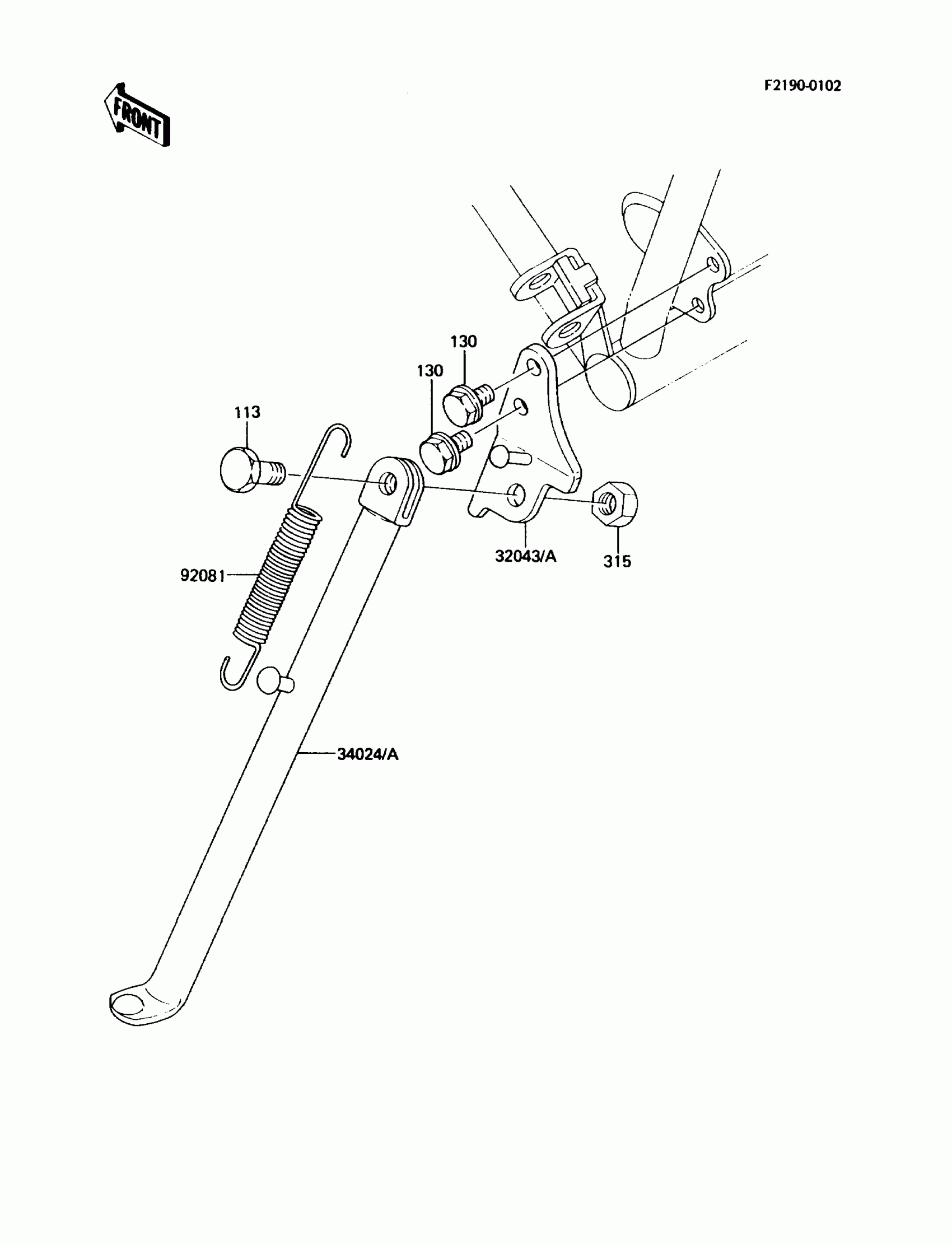

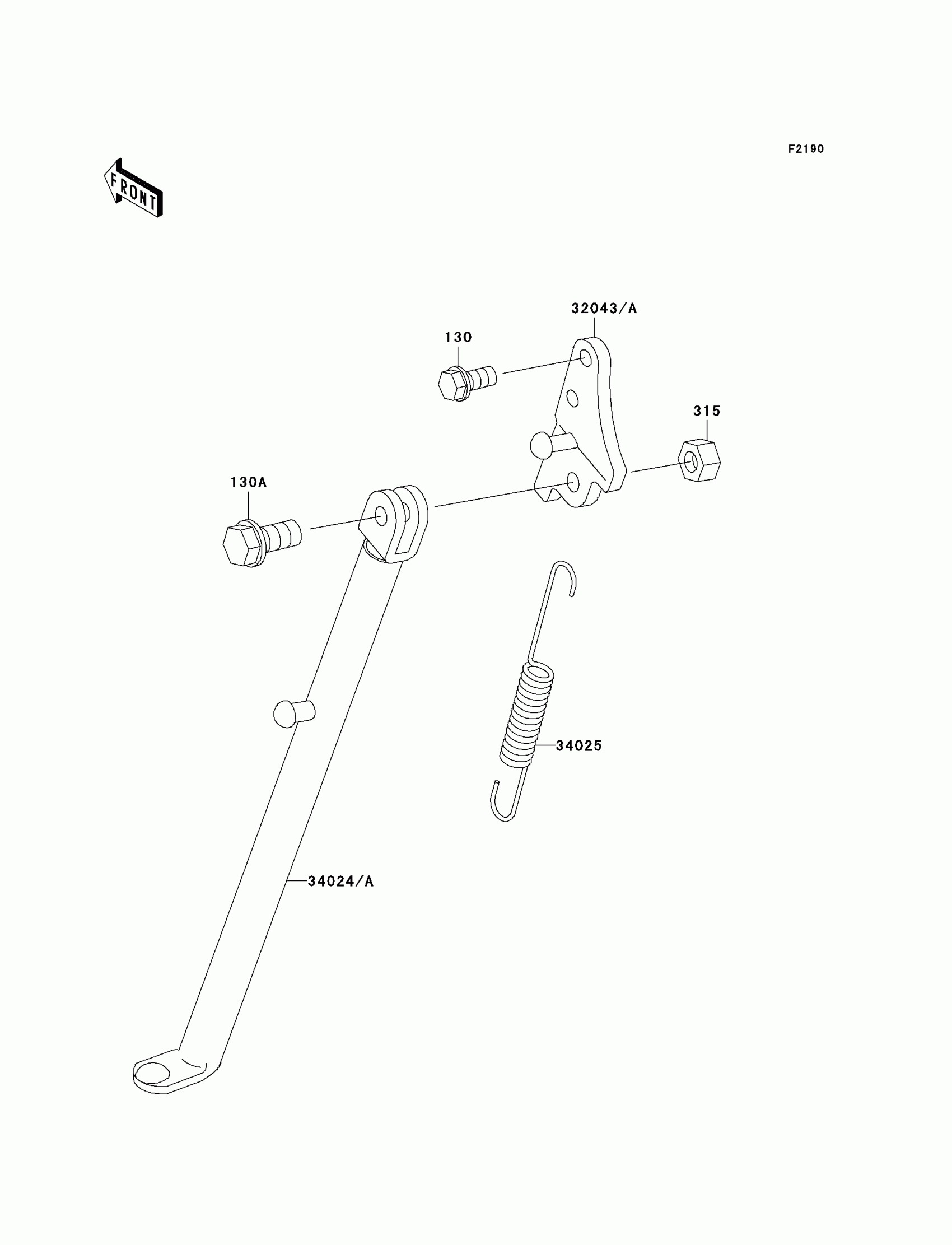

Kawasaki KX60 Stand(s) Diagram

#

Description

Price

130

BOLT-FLANGED,8X12

130G0812

$0.93

130A

BOLT-FLANGED,10X30

130V1030

$4.89

315

NUT-HEX-FINE,10MM,BLACK

315C1000

$4.20

32043A

BRACKET-STAND,SIDE,G.GRAY

32043-1483-GD

$37.70

34024A

STAND-SIDE,G.GRAY

34024-1405-GD

$77.56

34025

SPRING,STAND

34025-005

$7.58
