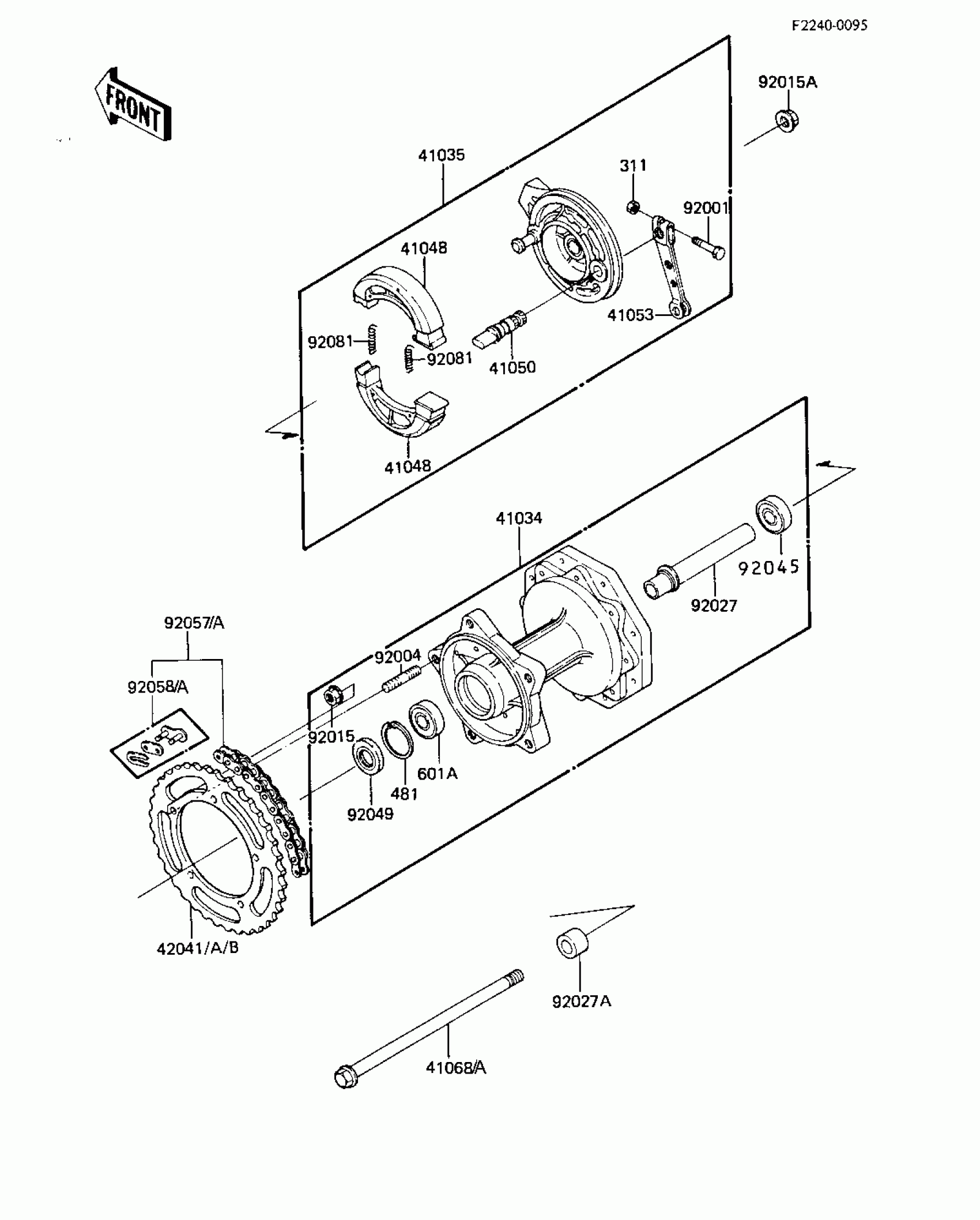

Kawasaki KX60 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1068

$390.21

41035

PANEL-ASSY-BRAKE,RR

41035-1099

$262.47

41048

SHOE-BRAKE

41048-1083

$22.01

41050

CAM-BRAKE

41050-1031

$25.72

41053

LEVER-BRAKE CAM,RR

41053-1058

$54.65

41068A

AXLE,L=206

41068-1167

Unavailable

42041

SPROCKET-HUB,44T

42041-1114

$67.22

42041A

SPROCKET-HUB,43T

42041-1116

$67.22

42041B

SPROCKET-HUB,45T

42041-1117

$67.22

42041C

SPROCKET-HUB,49T

42041-1121

$75.04

42041D

SPROCKET-HUB,48T

42041-1122

$67.22

42041E

SPROCKET-HUB,50T

42041-1123

$75.04

42041F

SPROCKET-HUB,47T

42041-1129

$75.04

42041G

SPROCKET-HUB,46T

42041-1178

$75.04

42041H

SPROCKET-HUB,51T

42041-1181

$75.04

92001

BOLT,5X25

92001-1695

$4.69

92004

STUD,8X16

92004-1053

Unavailable

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92027

COLLAR,REAR DRUM,L=115

92027-1471

$22.79

92027A

COLLAR,REAR AXLE,L=14.5

92027-1473

$20.77

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

$26.08

92049

SEAL-OIL,DD20377

92049-1096

$16.94

92057A

CHAIN,DID420M,104L

92057-1155

$50.64

92058A

JOINT-CHAIN

92058-1053

Unavailable

92081

SPRING,BRAKE SHOE

92081-1564

$5.46

311

NUT-HEX

311G0500

$4.31

481

CIRCLIP-TYPE-C,37MM

481J3700

$3.04

601

BEARING-BALL,#6301UUC3

601B6301UU

$25.54
