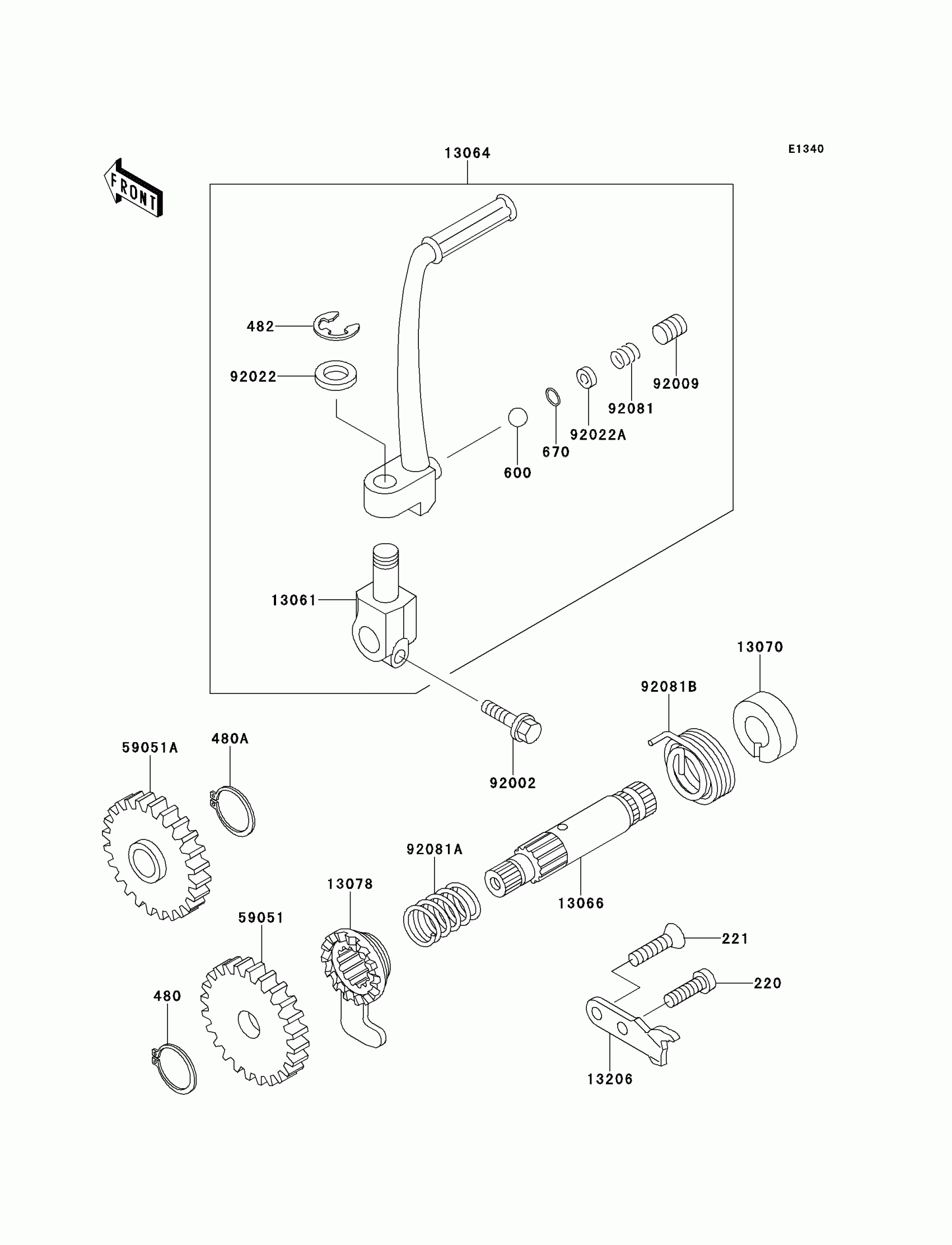

Kawasaki KX60 Kickstarter Mechanism Diagram

Description

Price

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

221

SCREW-CSK-CROS,6X18

221B0618

$3.41

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

480A

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

482

CIRCLIP-TYPE-E,8MM

482K8000

$2.93

600

BALL-STEEL,1/4

600A0800

$0.62

670

O RING,4MM

670B1504

$4.11

13061

BOSS,KICK LEVER

13061-1301

$48.88

13064

LEVER-ASSY-KICK,PEDAL

13064-1154

$99.40

13066

SHAFT-KICK

13066-1077

Unavailable

13070

GUIDE,KICK SPRING

13070-1034

$9.50

13078

RATCHET

13078-1004

$58.99

13206

GUIDE-KICK

13206-1053

Unavailable

59051

GEAR-SPUR,32T

59051-1026

$51.72

59051A

GEAR-SPUR,30T

59051-1027

$65.22

92002

BOLT,6X20

92002-1237

$4.31

92009

SCREW,SOCKET,8X8

92009-1312

$4.60

92022

WASHER,12.2X20X1.6

92022-1236

$4.90

92022A

WASHER

92022-1481

$6.45

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,RETURN

92081-1434

$16.93
