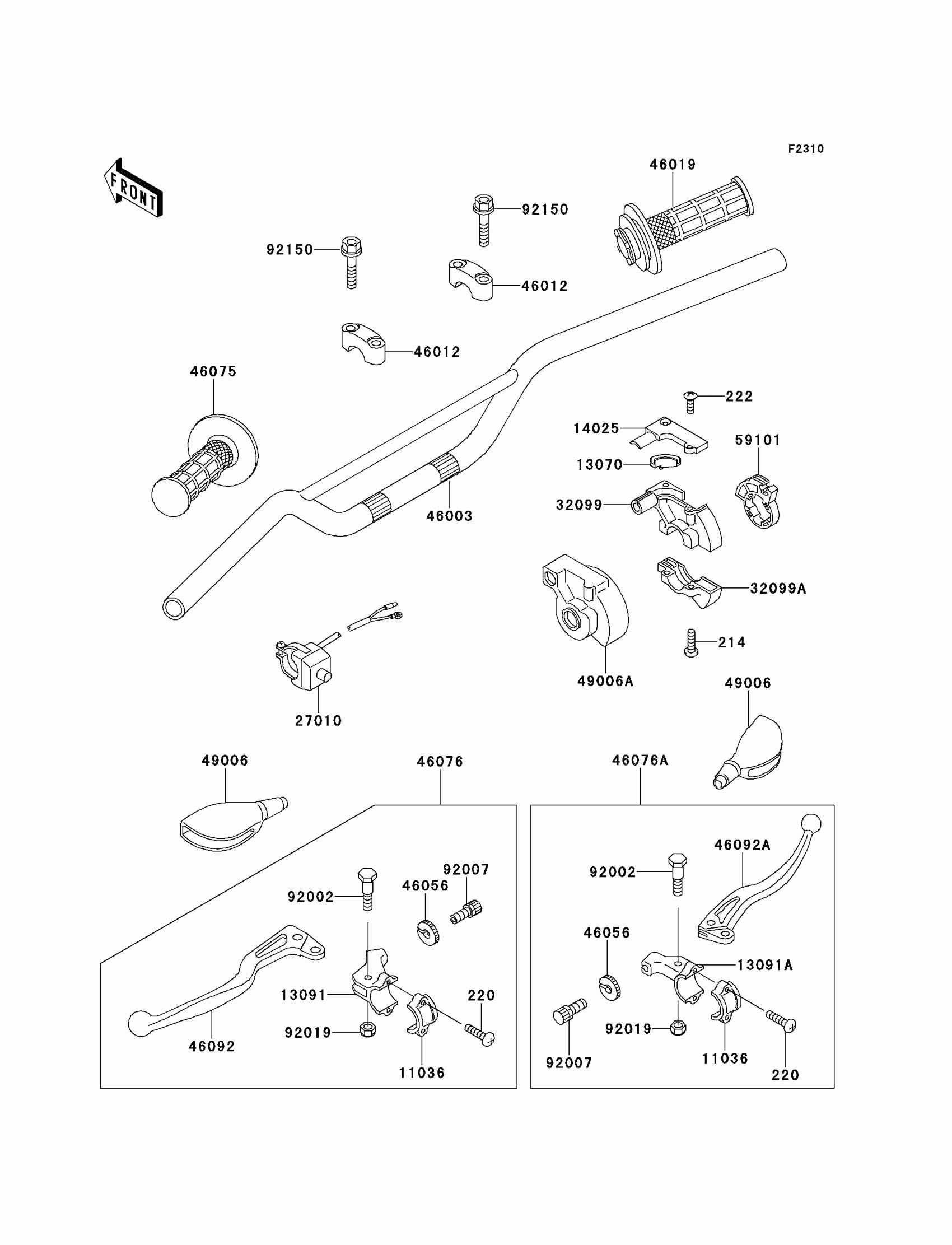

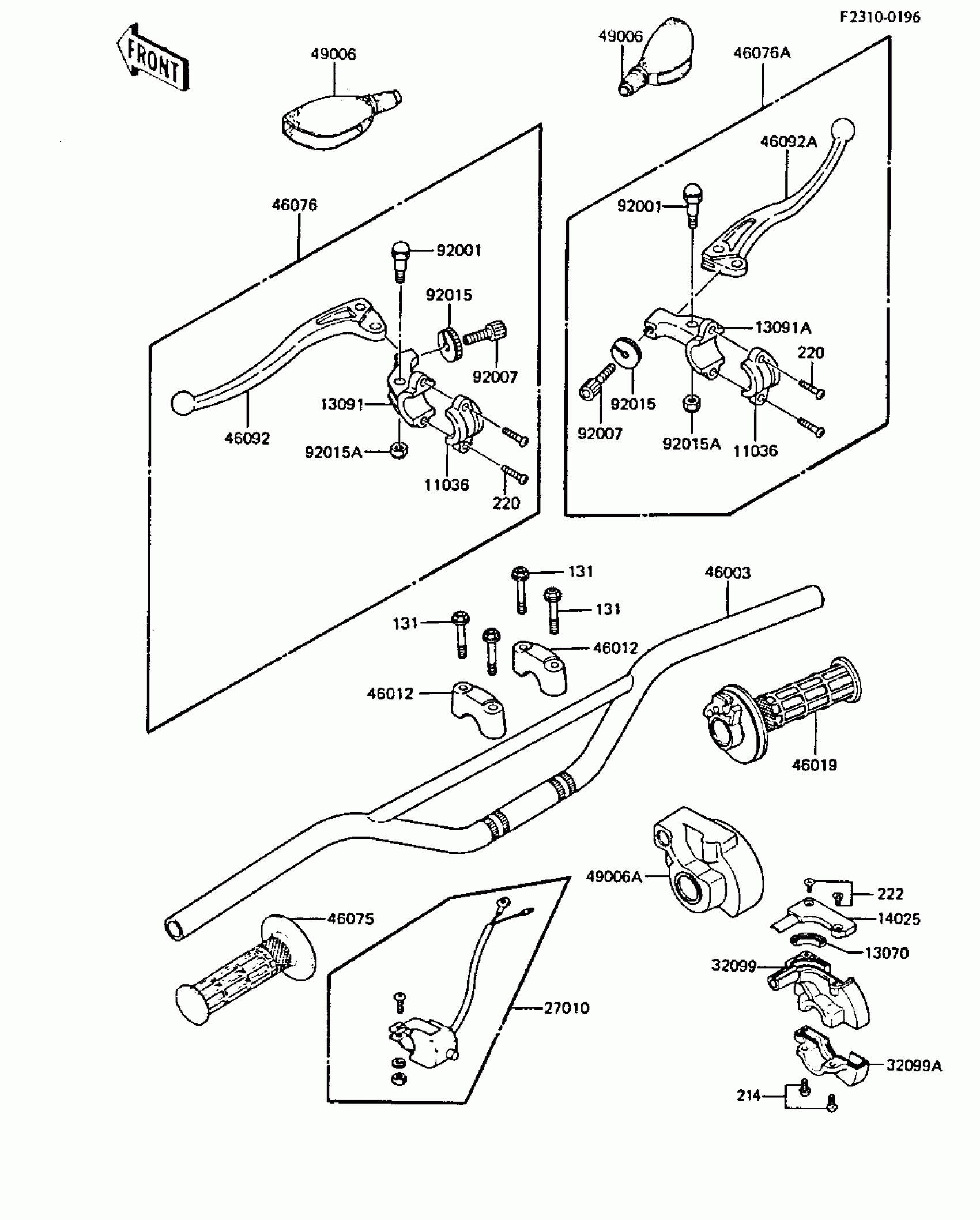

Kawasaki KX60 Handlebar Diagram
#
Description
Price
214
SCREW-PAN+-,5X18
214C0518
$3.69
220
SCREW-PAN-CROS
220C0514
$1.81
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
13091A
HOLDER,BRAKE LEVER
13091-1135
Unavailable
14025
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1161
$56.15
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE
46003-1309
Unavailable
46012
HOLDER-HANDLE,UPP
46012-1191
$33.90
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46056
NUT,CABLE ADJUST
46056-006
$8.94
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,LH
46076-1106
$46.32
46076A
LEVER-ASSY-GRIP,RH
46076-1107
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-1047
$20.11
46092A
LEVER-GRIP,BRAKE
46092-1048
Unavailable
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-1110
$11.27
92002
BOLT,LEVER SET
92002-1150
$7.62
92007
SCREW,CABLE ADJUST,7MM
92007-1143
$28.86
92019
NUT,LOCK,6MM
92019-008
$4.26
92150
BOLT,FLANGED,8X30
92150-1455
Unavailable
