1988 Kawasaki KX60 Generator Diagram

← All diagrams

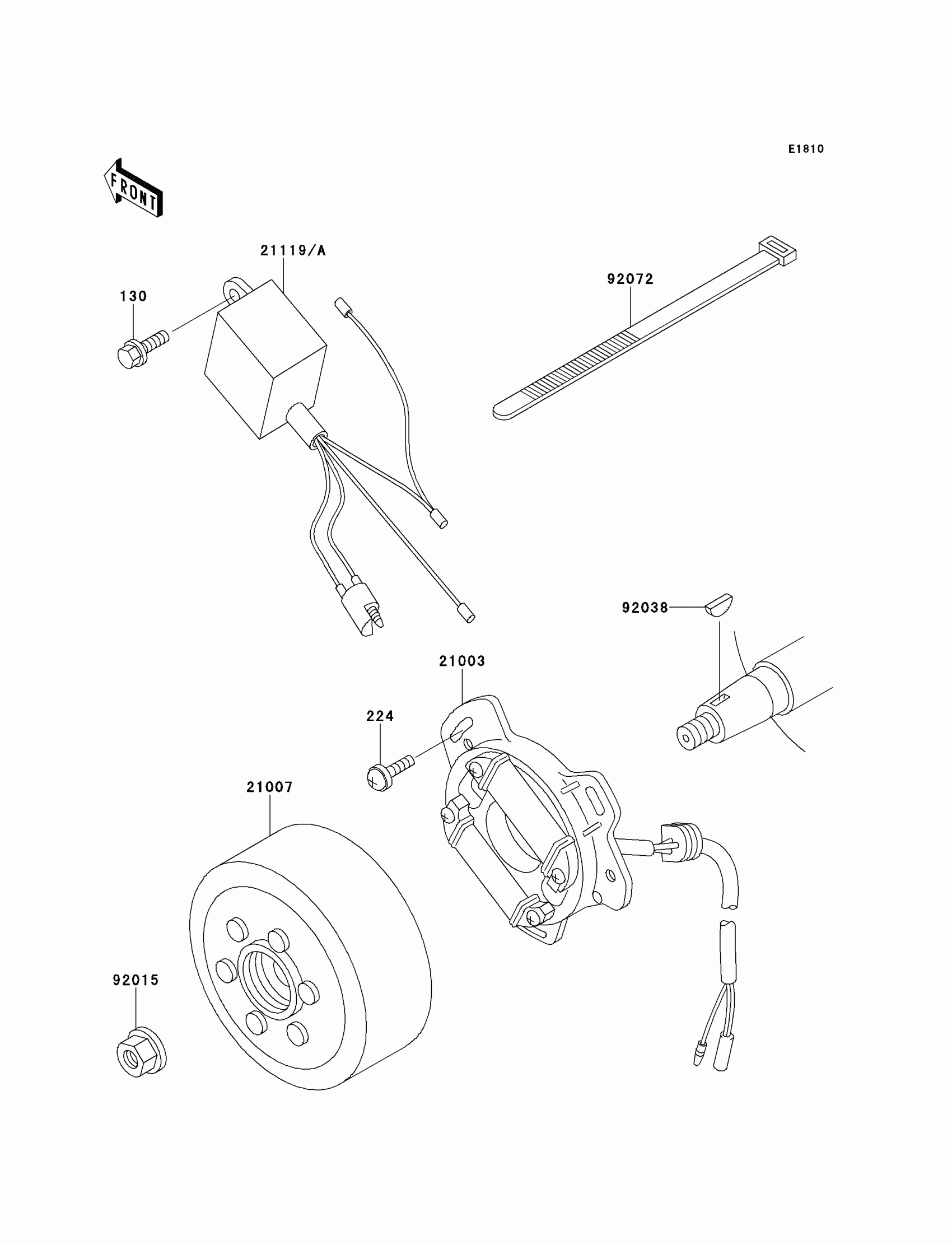

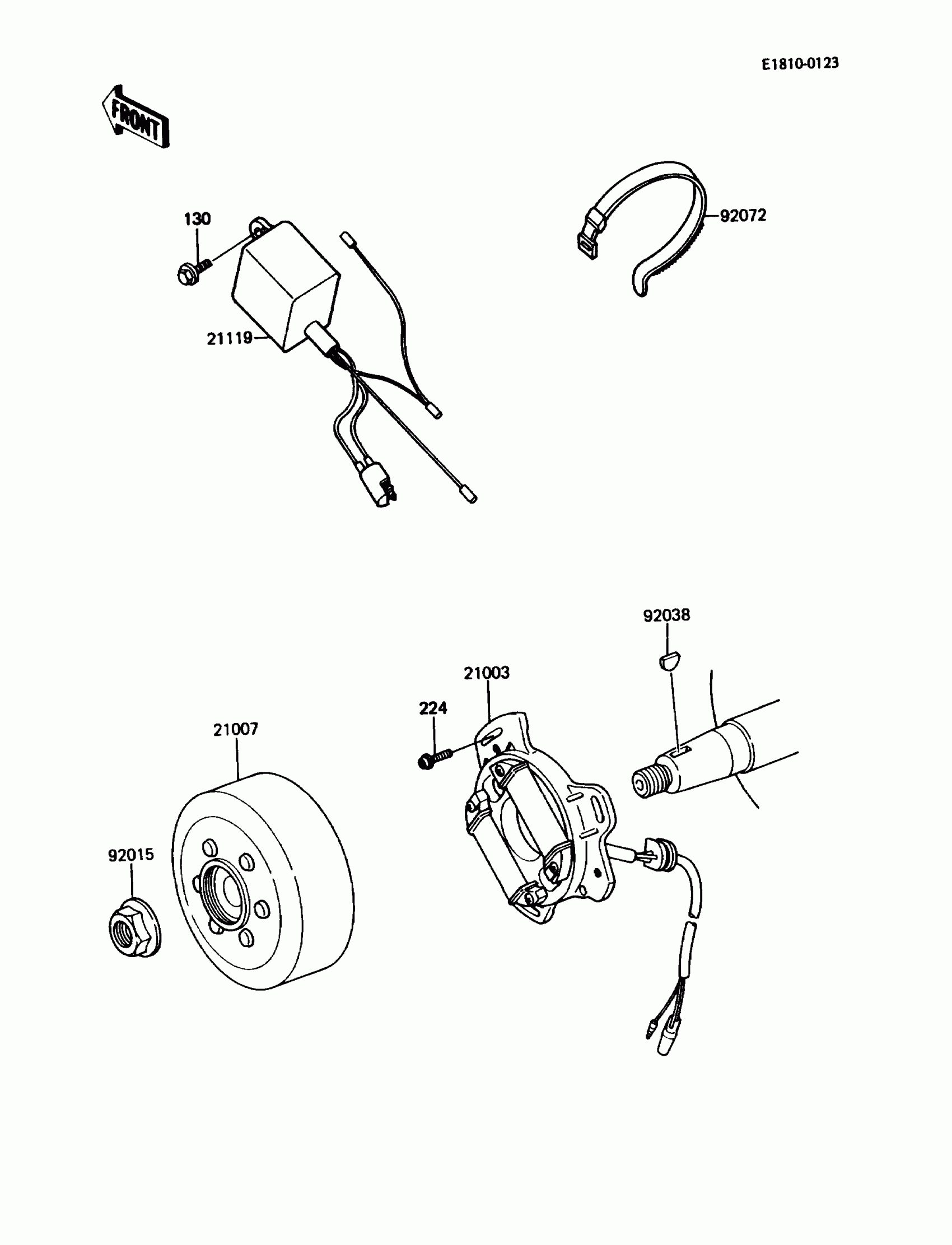

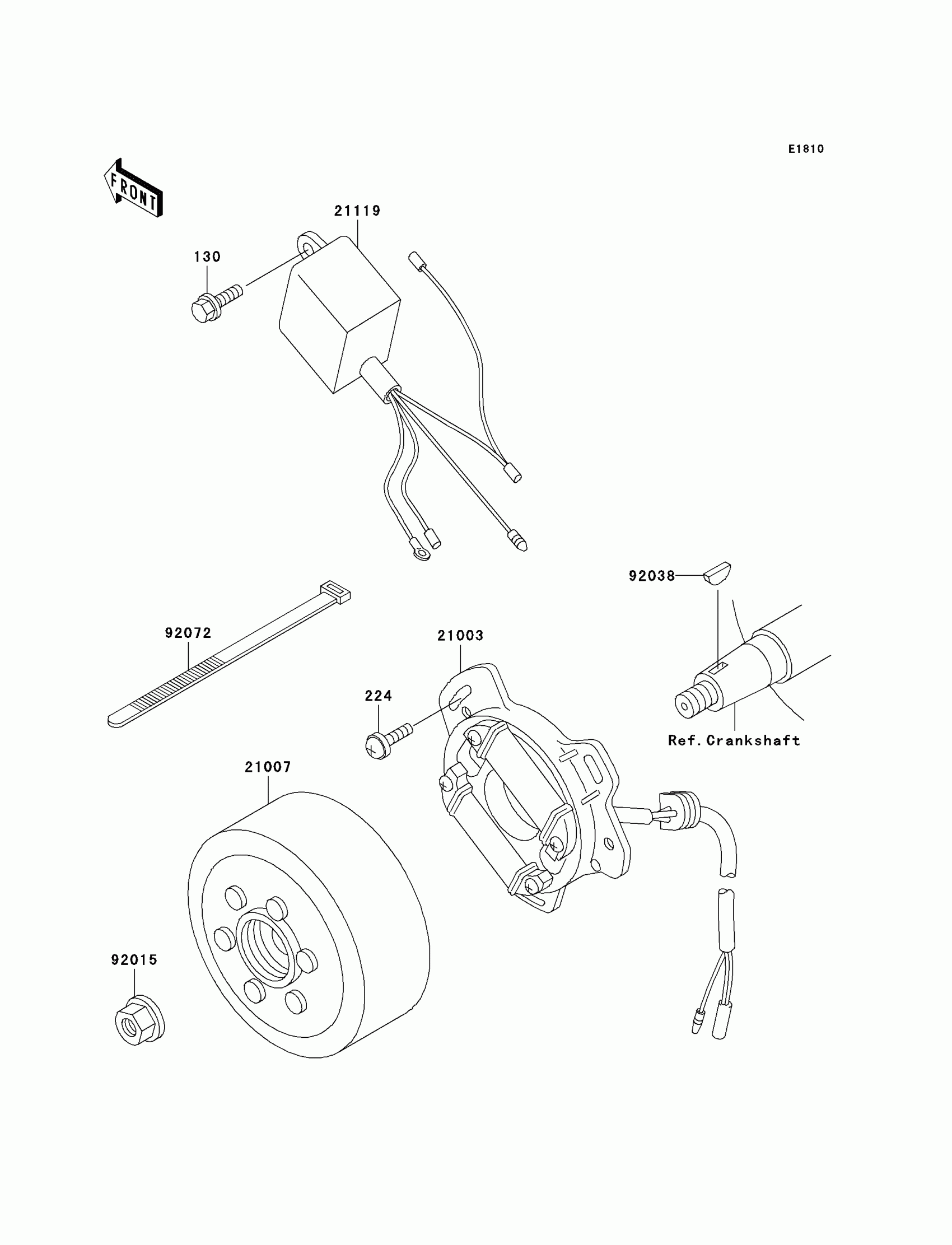

Find the part on the Generator diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX60 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR,MAGNETO

21003-1072

1

$305.56

In stock

21007

ROTOR,MAGNETO

21007-1018

1

$361.27

In stock

21119

IGNITER

21119-1115

1

$351.68

In stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

130

BOLT-FLANGED,6X16

130G0616

1
Out of stock

224

1

$3.28

In stock
