1984 Kawasaki KX60 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1984 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

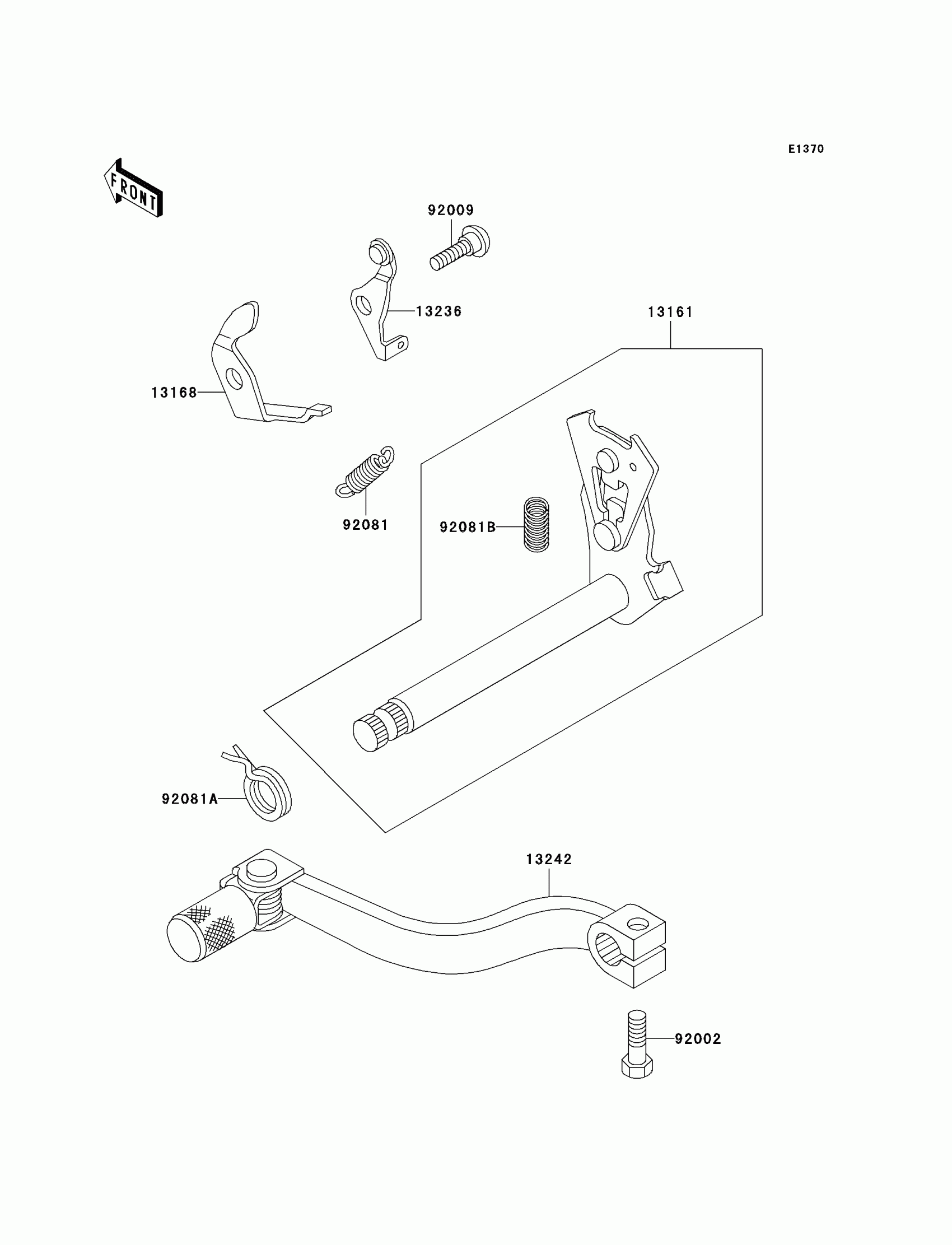

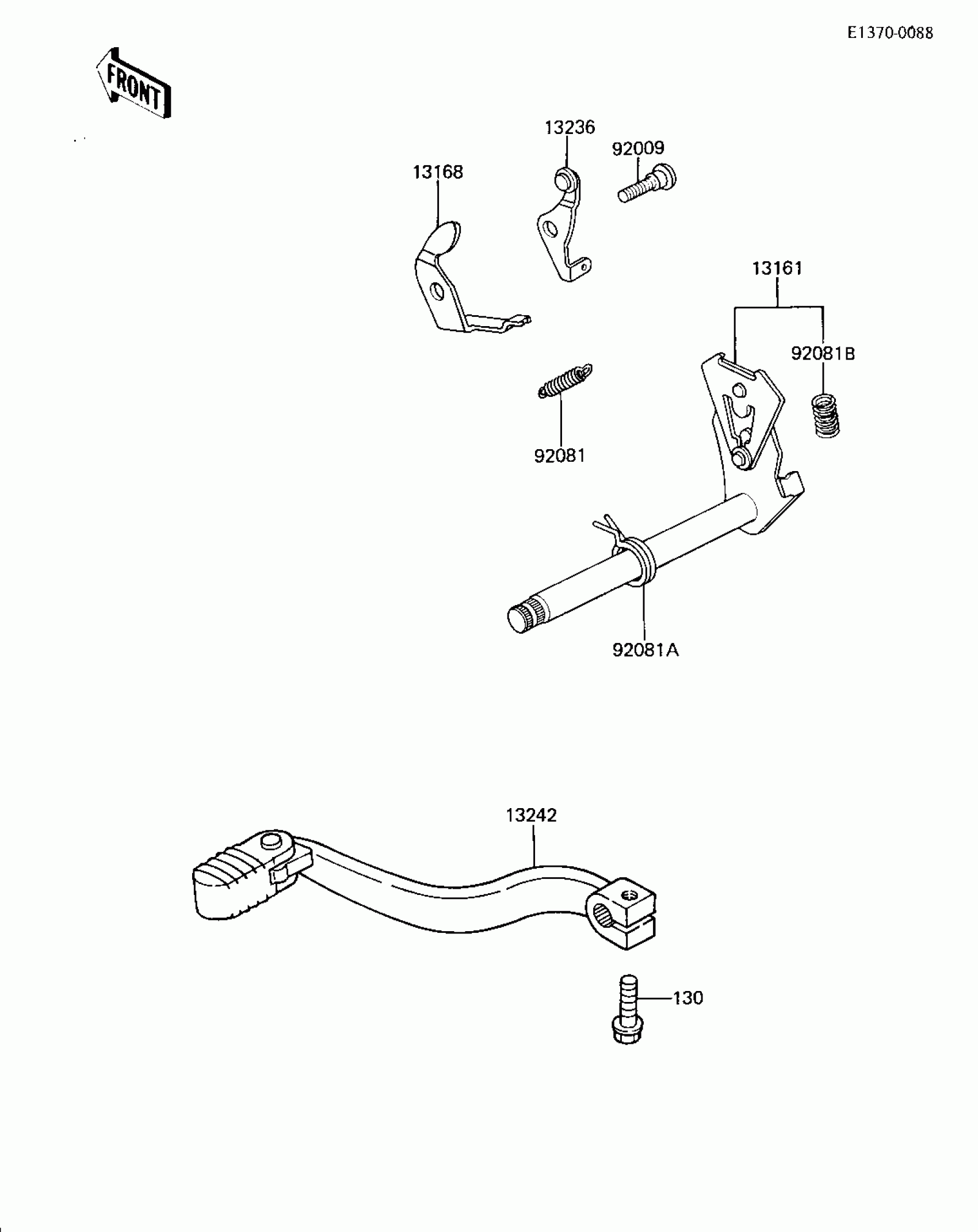

1984 Kawasaki KX60 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

13161-1108

1
Out of stock

13168

LEVER,GEAR SET

13168-1069

1
Out of stock

13236

1

$8.22

In stock

13242

LEVER-ASSY-CHANGE

13242-1157

1
Out of stock

92009

SCREW,CHANGE LEVER

92009-1102

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-1109

1

$4.39

In stock

92081A

SPRING,TENSION

92081-1129

1

$7.48

In stock

92081B

SPRING,CHANGE LEVER

92081-1275

1

$3.81

In stock

130

1

$1.41

In stock
