1984 Kawasaki KX60 Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1984 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

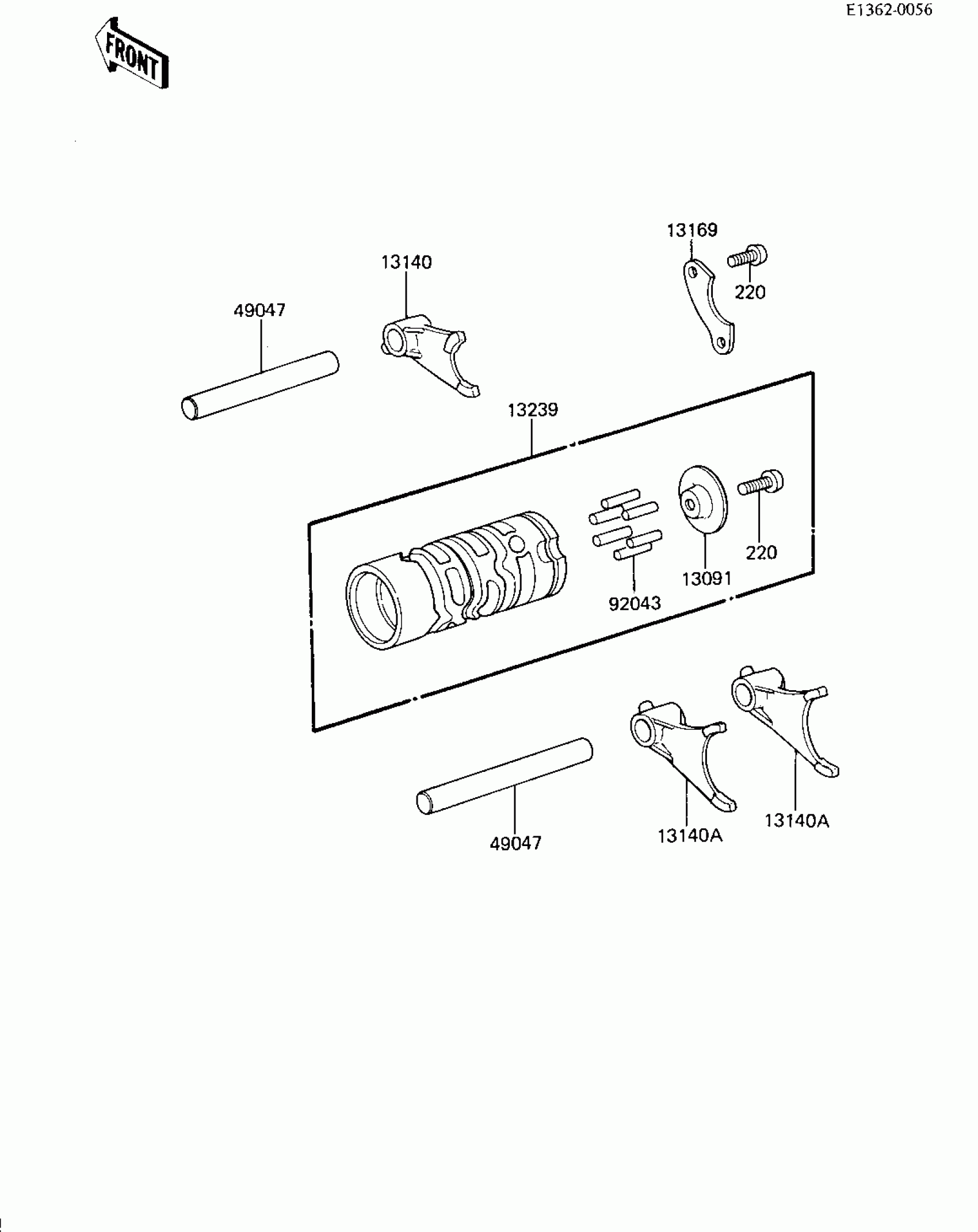

1984 Kawasaki KX60 Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM PIN

13091-1098

1
Out of stock

13140

FORK-SHIFT

13140-1060

1
Out of stock

13140A

FORK-SHIFT

13140-1061

1
Out of stock

13169

PLATE,CHANGE DRUM POSITION

13169-1309

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1065

1
Out of stock

49047

ROD-SHIFT,10X90

49047-1009

1
Out of stock

92043

PIN,DOWEL,4X16.8

92042-029

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock
