Description

Price

311

NUT-HEX

311G0500

$4.31

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

550

PIN-COTTER,2.5X20

550D2520

$1.36

601

BEARING-BALL,#6200UUC3

601B6200UU

$19.07

601A

BEARING-BALL,#6300UUC3

601B6300UU

$24.90

41034

DRUM-ASSY,FRONT BRAKE

41034-1168

$320.46

41035A

PANEL-ASSY-BRAKE,FR

41035-1285

$208.01

41048A

SHOE-BRAKE

41048-1083

$22.01

41050

CAM-BRAKE

41050-1031

$25.72

41053

LEVER-BRAKE CAM,FR

41053-1027

$47.49

41068

AXLE,FR

41068-1305

$21.79

92001

BOLT,5X25

92001-1695

$4.69

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92027

COLLAR,FRONT DRUM,L=54

92027-1470

$14.23

92027A

COLLAR,FRONT AXLE,L=14.5

92027-1472

$14.23

92049

SEAL-OIL,DD20357

92049-1095

$16.94

92081

SPRING,BRAKE SHOE

92081-1564

$5.46

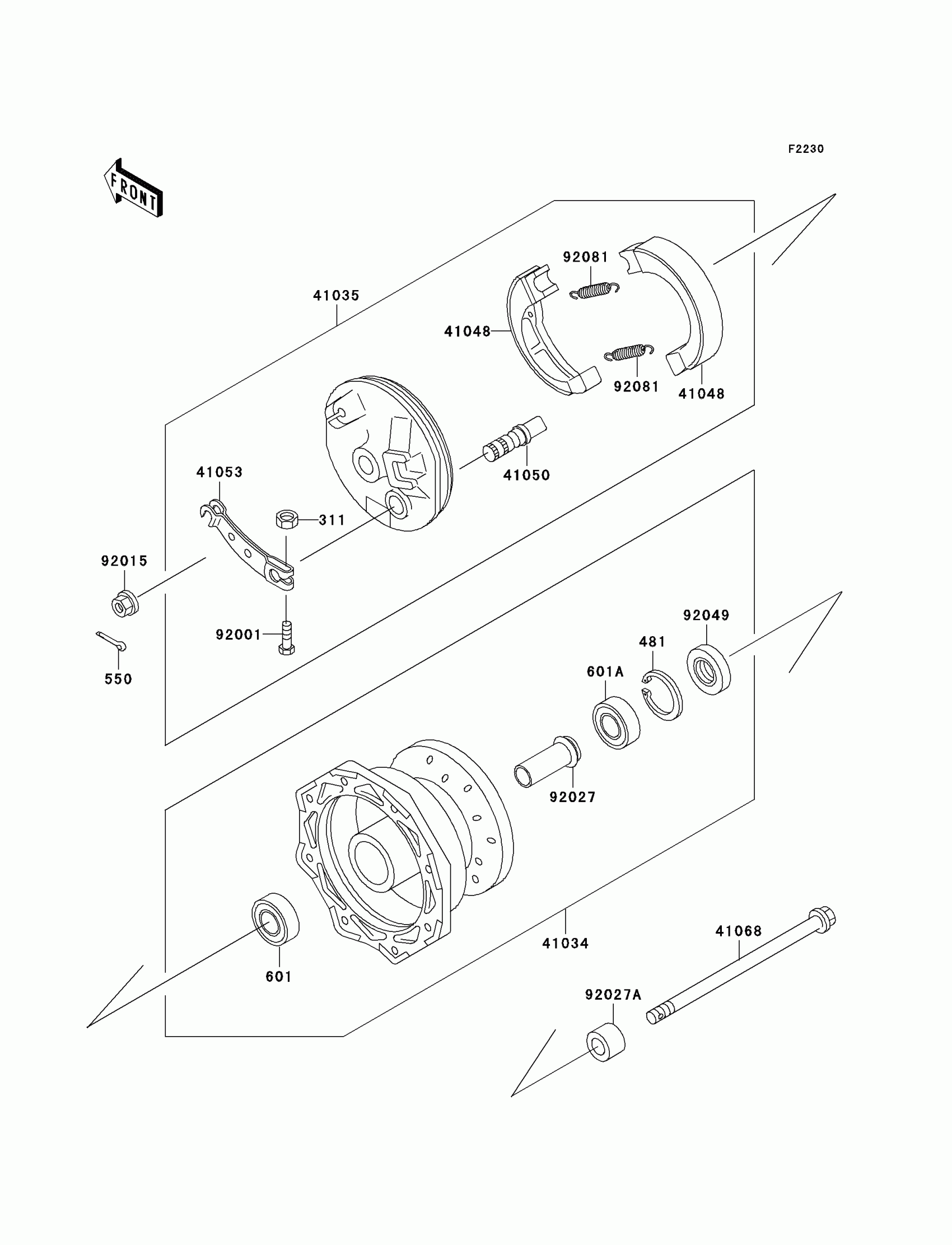

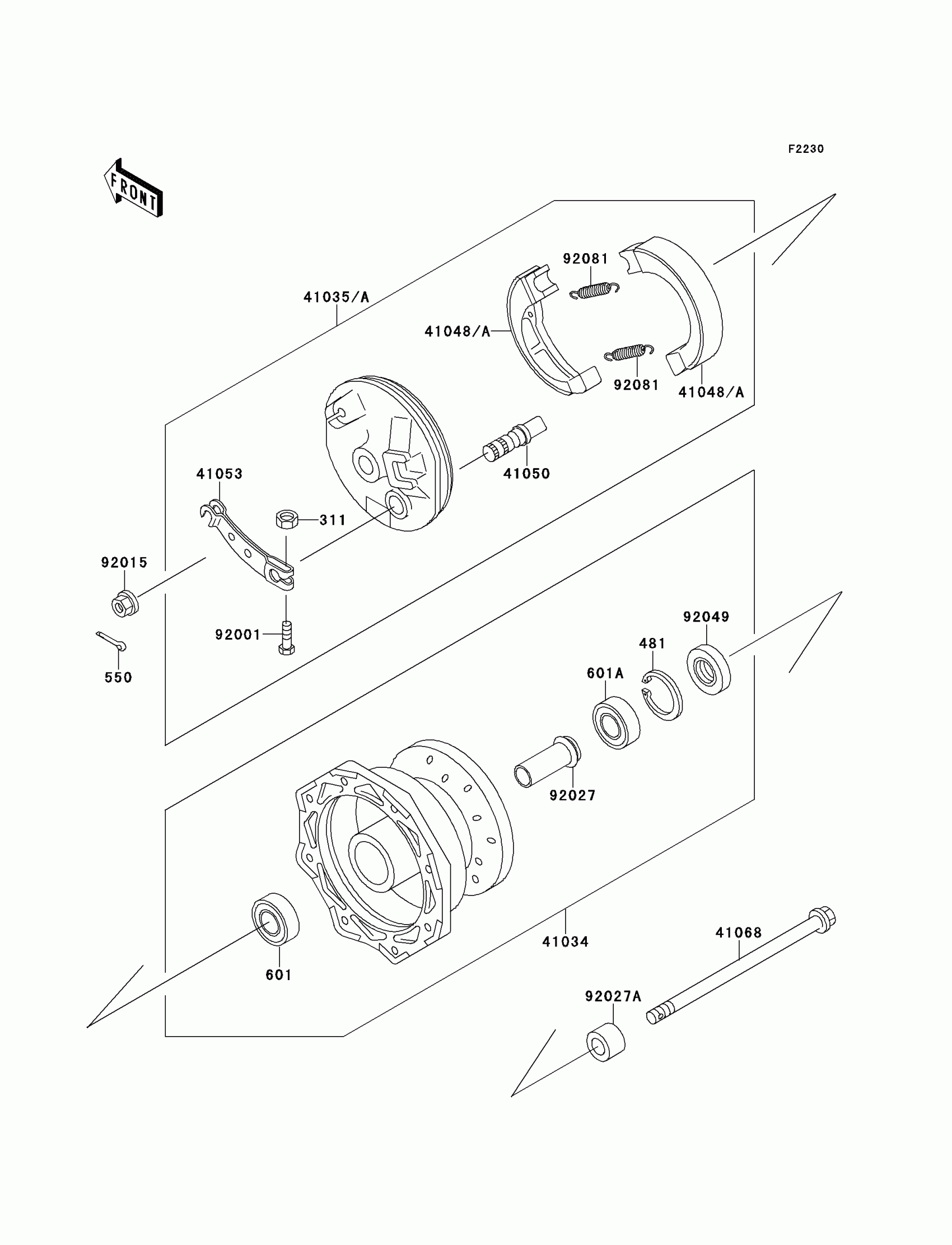

Kawasaki KX60 Front Hub Diagram
