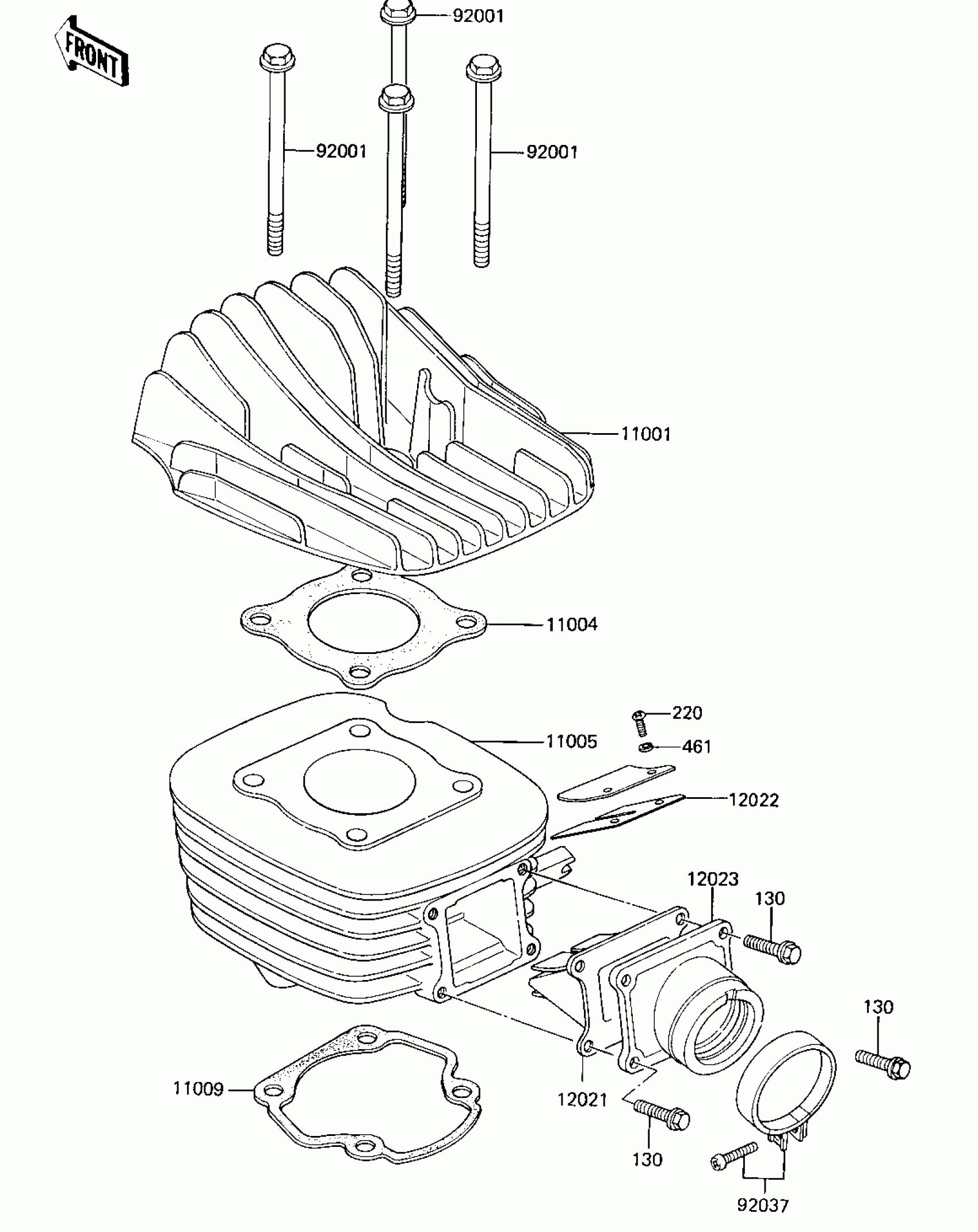

Kawasaki KX60 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1084

Unavailable

11004

GASKET-HEAD,CYLINDER

11004-1050

Unavailable

11005

CYLINDER-ENGINE,ELECT

11005-1236

Unavailable

11009

GASKET,CYLINDER BASE

11009-1975

$9.66

12021

VALVE-ASSY-REED

12021-1015

$134.42

12022

VALVE-REED,T=0.42

12022-1013

$19.09

12023

HOLDER-VALVE,REED

12023-1019

$75.54

92001

BOLT,FLANGED,8X105

92001-1989

Unavailable

92037

CLAMP

92037-1305

$9.06

130

BOLT-FLANGED,6X20

130G0620

$1.69

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

461

WASHER SPRING 3MM

461F0300

$0.46
