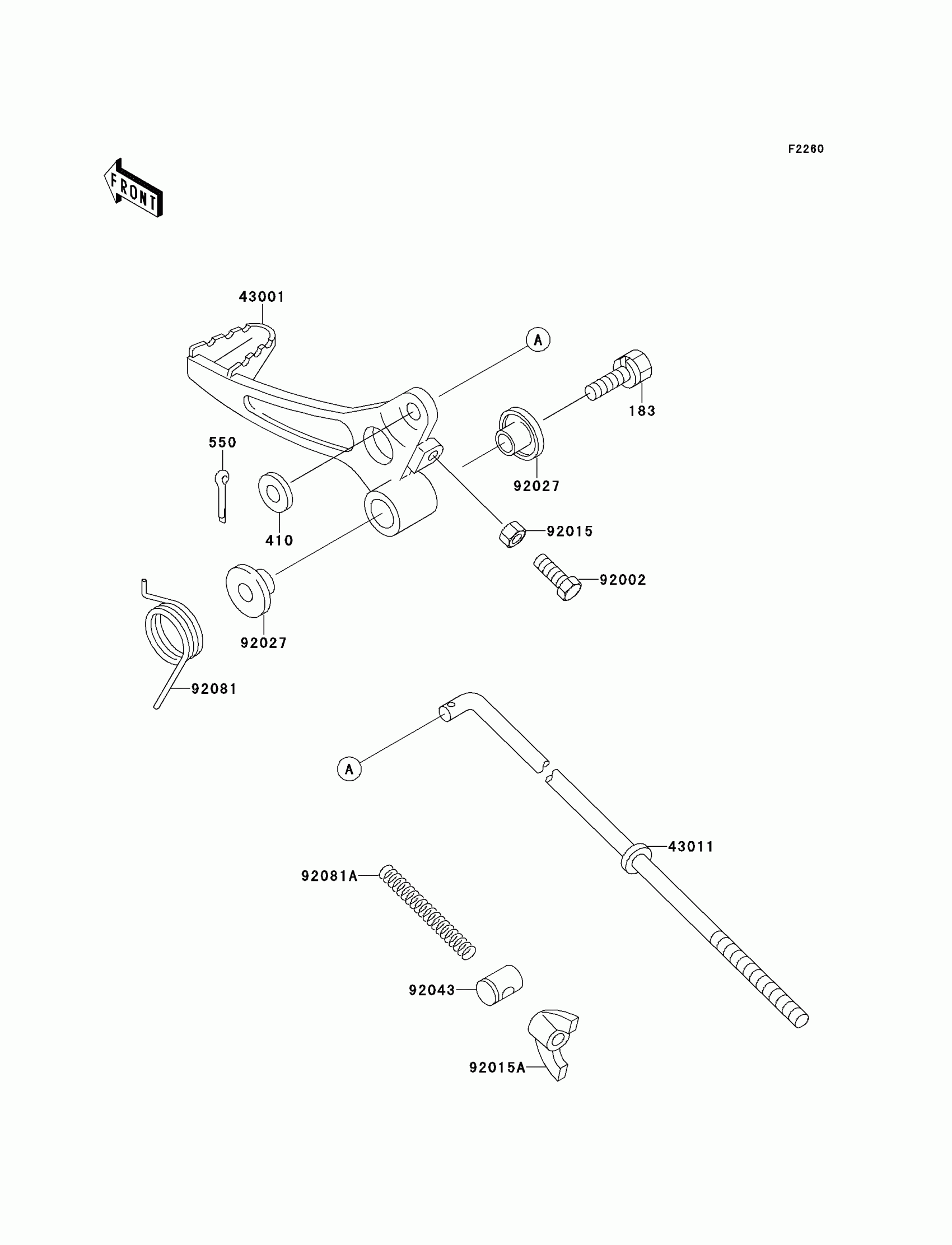

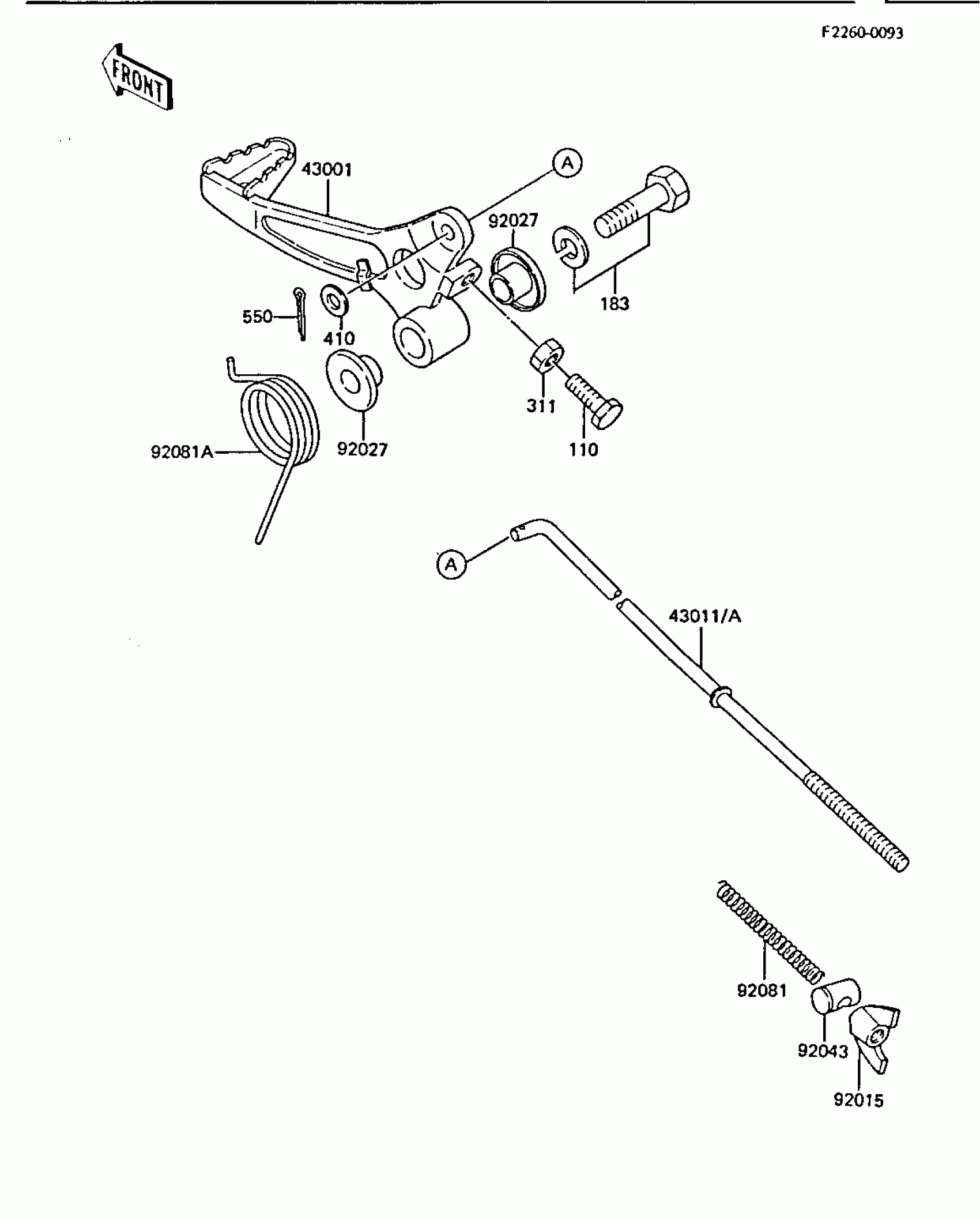

Kawasaki KX60 Brake Pedal Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL

183G0840

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

550

PIN COTTER 2.0X15

550D2015

$1.04

43001

LEVER-BRAKE,PEDAL

43001-1243

$60.55

43011

ROD-BRAKE

43011-1104

$16.13

92002

BOLT,6X20

92002-1373

$4.38

92015

NUT,6MM

92015-1391

$2.49

92015A

NUT,WING,6MM

92015-4004

$7.29

92027

COLLAR,BRAKE PEDAL

92027-1497

$13.38

92043

PIN,BRAKE ROD

92043-039

$6.38

92081

SPRING,BRAKE PEDAL

92081-1494

Unavailable

92081A

SPRING,BRAKE ROD

92081-1688

$4.65
