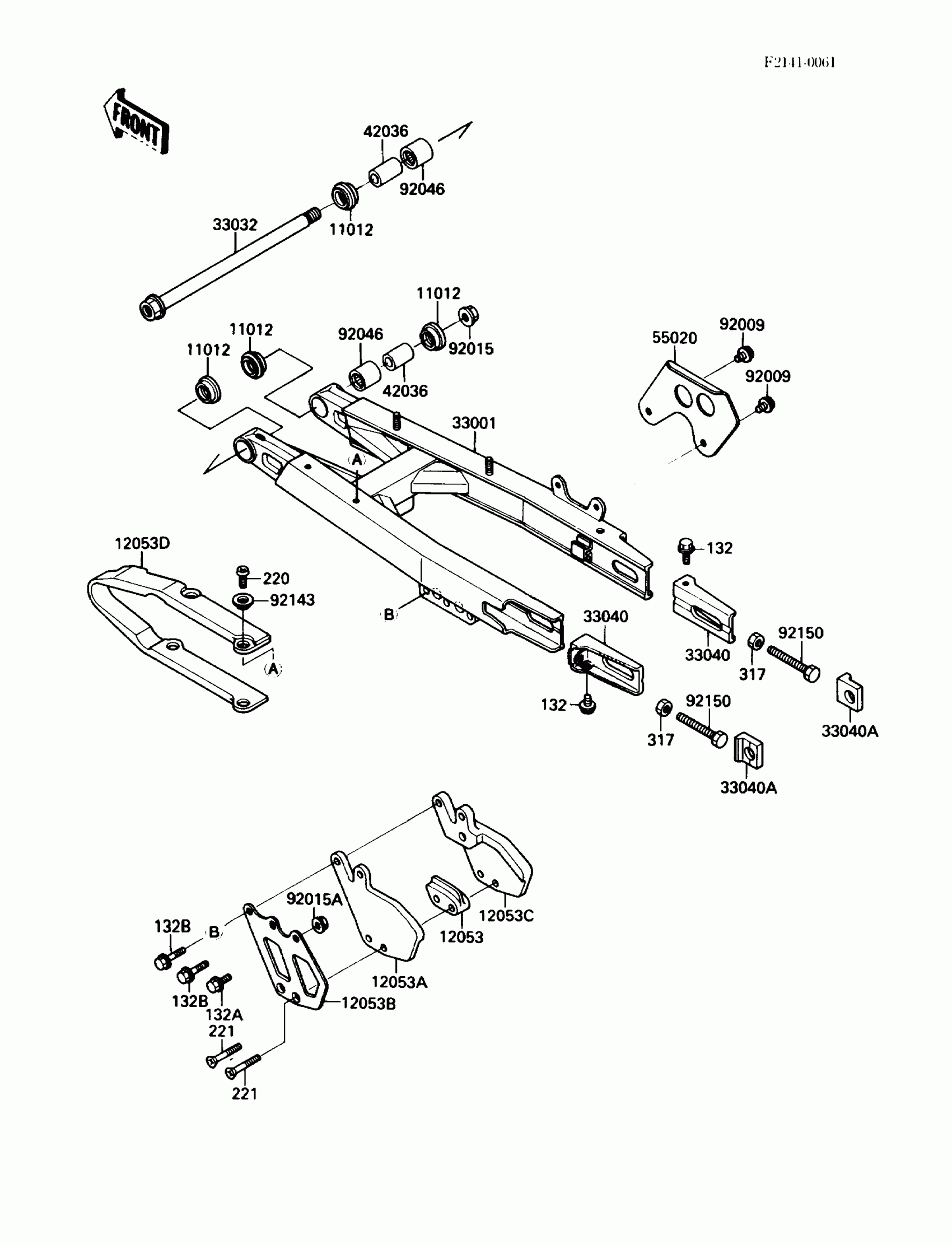

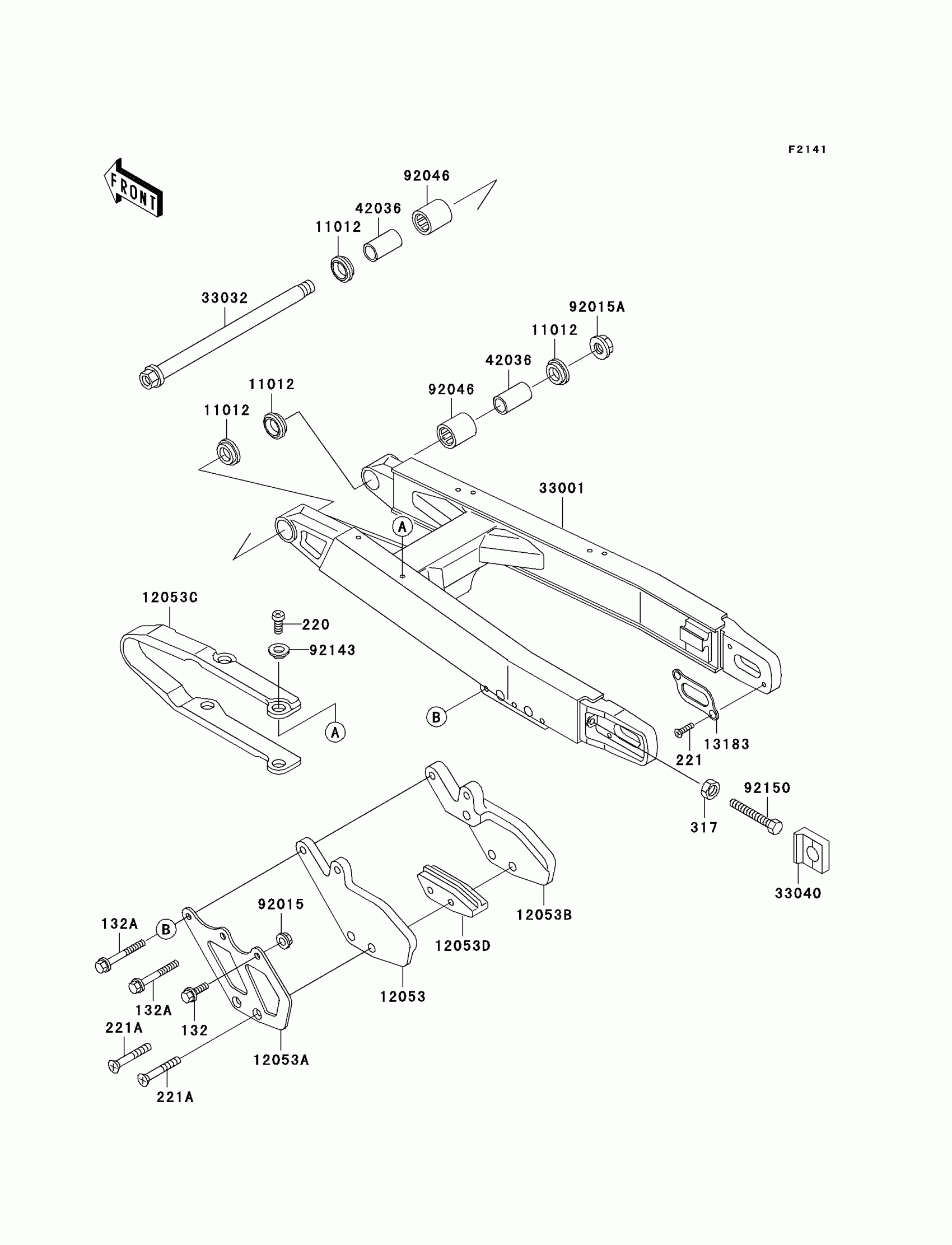

Kawasaki KX500 Swingarm Diagram

#

Description
Price

11012

CAP,SWING ARM

11012-1259

$21.80

12053

GUIDE-CHAIN,RR,INSIDE

12053-1105

Unavailable

12053A

GUIDE-CHAIN,RR,INSIDE

12053-1234

$32.95

12053B

GUIDE-CHAIN,RR,OUTSIDE

12053-1235

$35.90

12053C

GUIDE-CHAIN,RR,OUTSIDE

12053-1236

$42.14

12053D

GUIDE-CHAIN,FR

12053-1240

$70.58

33001

ARM-COMP-SWING,SILVER NO.15

33001-1306-X3

$510.99

33032

SHAFT-SWING ARM

33032-1137

$63.44

33040

ADJUSTER-CHAIN

33040-1084

Unavailable

33040A

ADJUSTER-CHAIN

33040-1085

Unavailable

42036

SLEEVE,SWING ARM

42036-1064

$21.29

55020

GUARD,CALIPER

55020-1247

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,14MM

92015-1032

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92046

BEARING-NEEDLE

92046-1128

$26.03

92143

COLLAR

92143-1156

$6.22

92150

BOLT,8X55

92150-1068

$6.45

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

132B

BOLT-FLANGED-SMALL,6X35

132G0635

$1.92

220

SCREW-PAN-CROS,6X8

220B0608

$0.59

221

SCREW-CSK-CROS,6X45

221B0645

$4.12

317

NUT-HEX-SMALL,8MM

317G0800

$1.63
