Description

Price

11012

CAP

11012-1276

$5.54

13070

GUIDE,SPRING

13070-1161

$23.01

13070A

GUIDE,SPRING

13070-1165

$35.42

13256

PISTON,SHOCKABSORBER

13256-1054

Unavailable

43089

CYLINDER-SHOCKABSORBER

43089-1125

$410.16

45014

SHOCKABSORBER

45014-1387

$864.88

46102

ROD,SHOCKABSORBER

46102-1235

$532.08

59266

JOINT-BALL

59266-1071

$139.66

92002

BOLT,DRAIN

92002-1955

$11.16

92015

NUT,SPRING ADJUST

92015-1703

$40.51

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$38.08

92033

RING-SNAP,SHOCKABSORBER

92033-1228

$4.96

92033A

RING-SNAP

92033-1244

Unavailable

92049

SEAL-OIL

92049-1306

$179.50

92055

RING-O,ROD

92055-1369

$10.14

92055A

RING-O

92055-1383

$4.11

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$28.82

92093

SEAL

92093-1253

Unavailable

92144

SPRING,SHOCKABSORBER,K=5.2

92144-1232

Unavailable

92144A

SPRING,SHOCKABSORBER,K=5.4

92144-1310

$265.78

92144B

SPRING,SHOCKABSORBER,K=5.6

92144-1311

$265.78

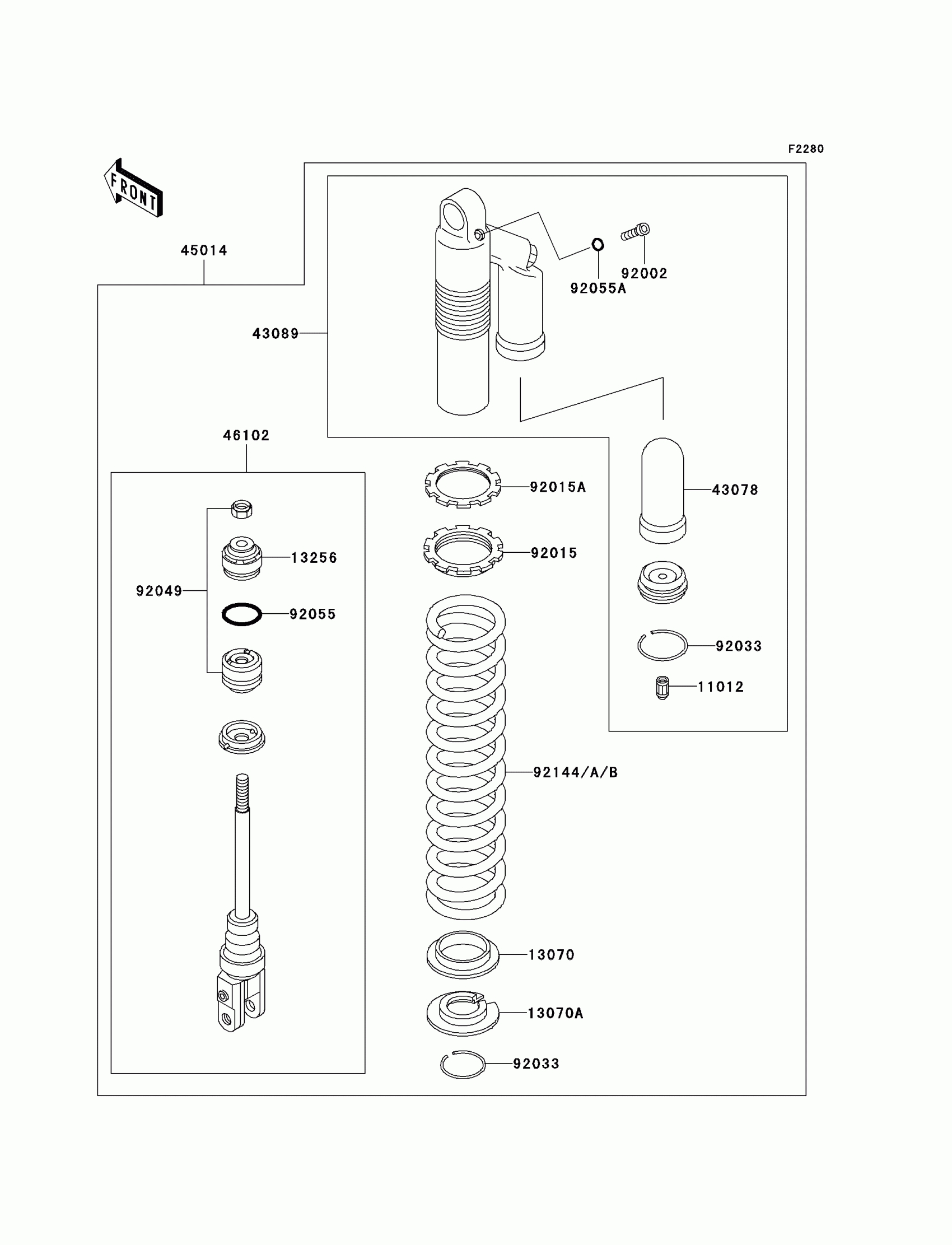

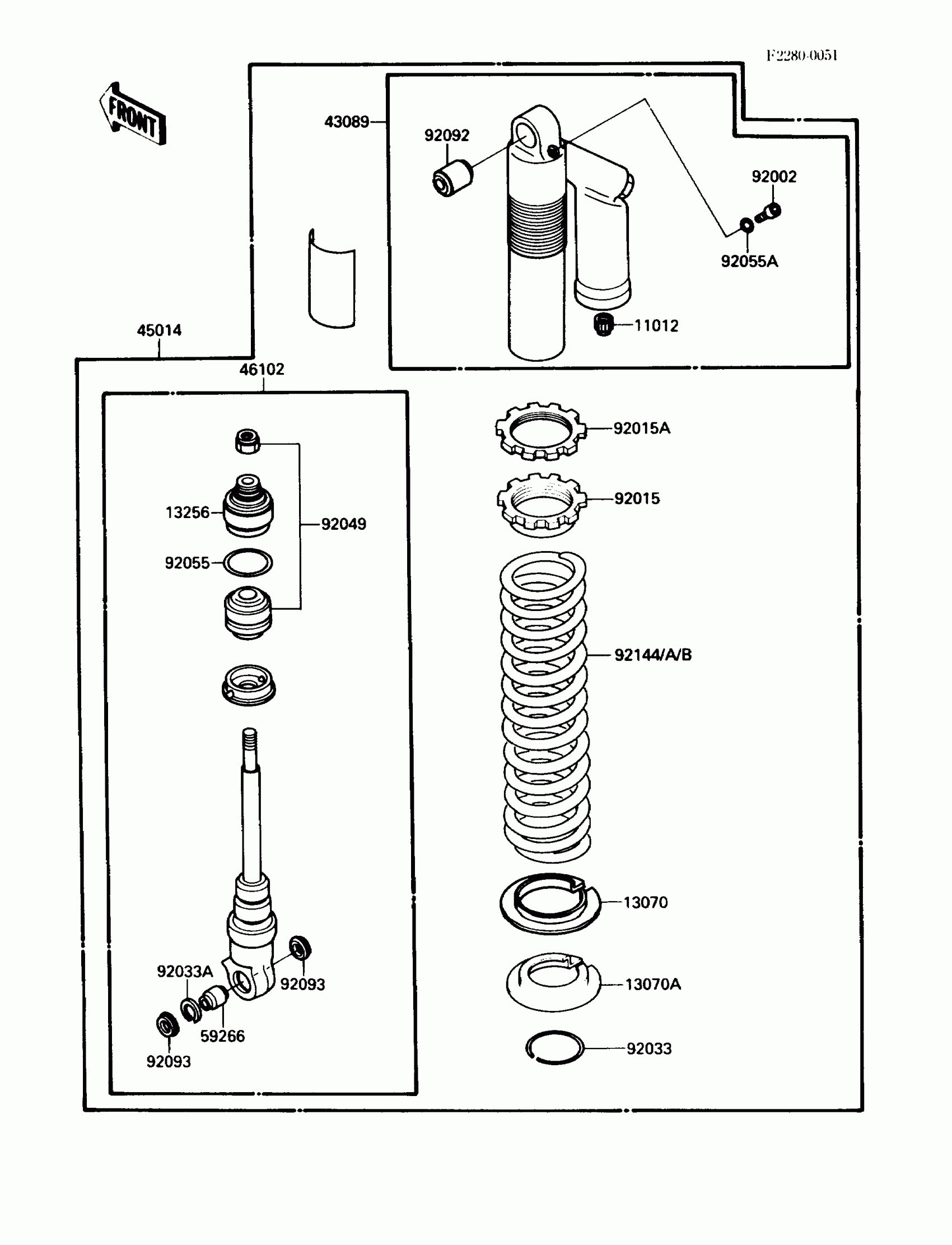

Kawasaki KX500 Shock Absorber(s) Diagram

CAP

GUIDE,SPRING

GUIDE,SPRING

PISTON,SHOCKABSORBER

CYLINDER-SHOCKABSORBER

SHOCKABSORBER

ROD,SHOCKABSORBER

JOINT-BALL

BOLT,DRAIN

NUT,SPRING ADJUST

NUT,SPRING ADJUST LOCK

RING-SNAP,SHOCKABSORBER

RING-SNAP

SEAL-OIL

RING-O,ROD

RING-O

BUSHING-RUBBER,SHOCKABSORBER

SEAL

SPRING,SHOCKABSORBER,K=5.2

SPRING,SHOCKABSORBER,K=5.4

SPRING,SHOCKABSORBER,K=5.6
