Description

Price

11009

GASKET

44045-057

$4.86

11012

CAP,REARSHOCK

11012-1278

Unavailable

13070

GUIDE,SPRING

13070-1075

$69.04

14025

COVER,SHOCKABSORBER

14025-1664

Unavailable

39093

PIPE-COMP-SUSP

39093-1083

$210.61

43089

CYLINDER-SHOCKABSORBE

43089-1049

$389.24

45014

SHOCKABSORBER,RR

45014-1188

$1,199.34

46102

ROD.SHOCKABSORBER

46102-1064

$504.17

52001

TANK-OIL,REARSHOCK

52001-1017

$283.75

59266

JOINT-BALL

59266-1014

Unavailable

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT,SPRING ADJUST LOC

92015-1238

Unavailable

92015A

NUT,SPRING ADJUST

92015-1239

$51.19

92027

COLLAR,REARSHOCK

92027-1534

Unavailable

92028

BUSHING,ROD

92028-1198

Unavailable

92033

RING-SNAP

92033-1090

$5.42

92033A

RING-SNAP,REARSHOCK

92033-1091

$4.96

92055

RING-O

92055-1156

$1.42

92055A

RING-O,ROD

92055-1181

Unavailable

92055B

RING-O,ROD

92055-1158

Unavailable

92081

SPRING,SHOCKABSORBER

92081-1517

$311.41

92081A

SPRING,SHOCKABSORBER,

92081-1558

$310.84

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$34.49

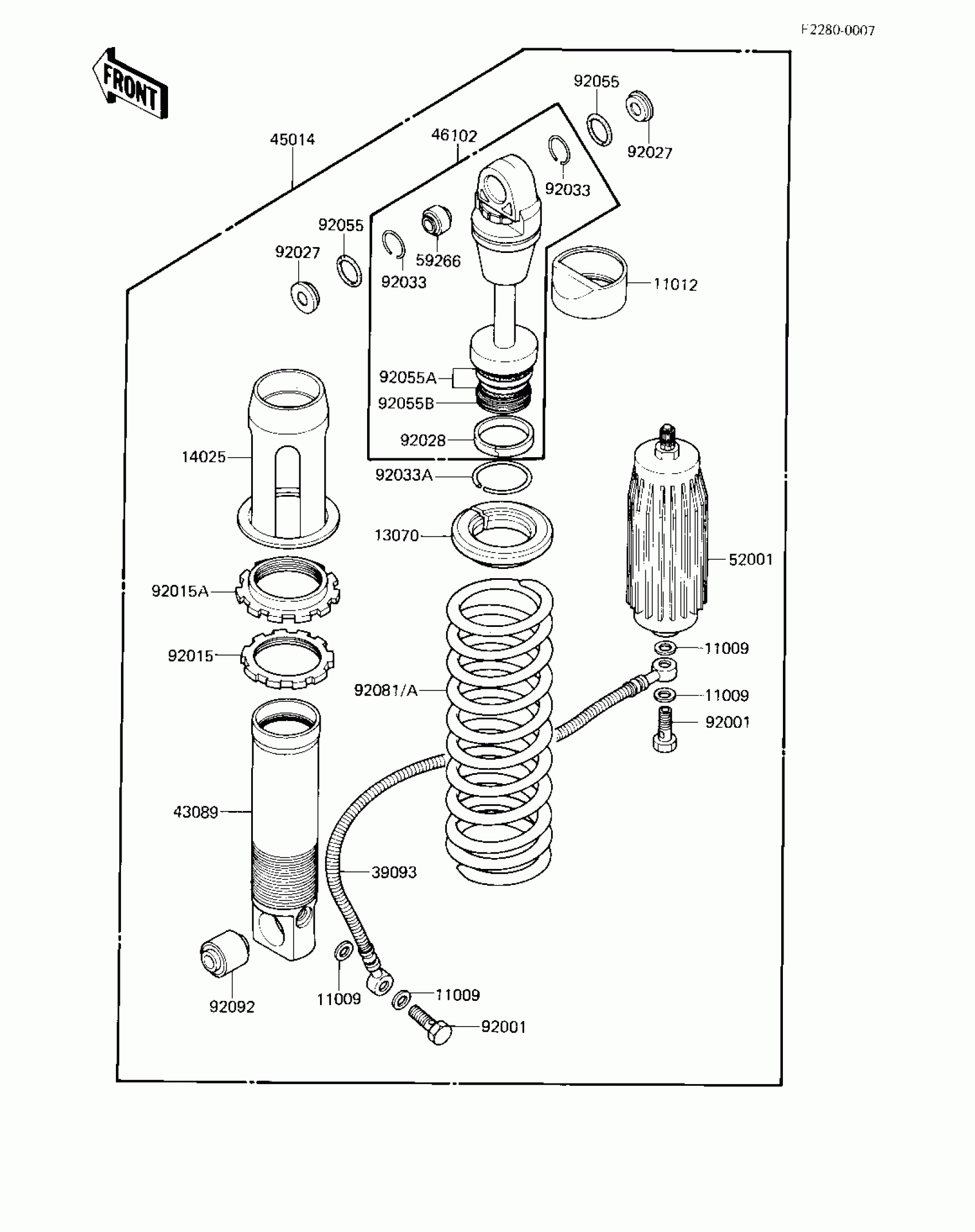

Kawasaki KX500 SHOCK ABSORBER ('83 A1) Diagram

GASKET

CAP,REARSHOCK

GUIDE,SPRING

COVER,SHOCKABSORBER

PIPE-COMP-SUSP

CYLINDER-SHOCKABSORBE

SHOCKABSORBER,RR

ROD.SHOCKABSORBER

TANK-OIL,REARSHOCK

JOINT-BALL

BOLT,BANJO

NUT,SPRING ADJUST LOC

NUT,SPRING ADJUST

COLLAR,REARSHOCK

BUSHING,ROD

RING-SNAP

RING-SNAP,REARSHOCK

RING-O

RING-O,ROD

RING-O,ROD

SPRING,SHOCKABSORBER

SPRING,SHOCKABSORBER,

BUSHING-RUBBER,SHOCKABSORBER
