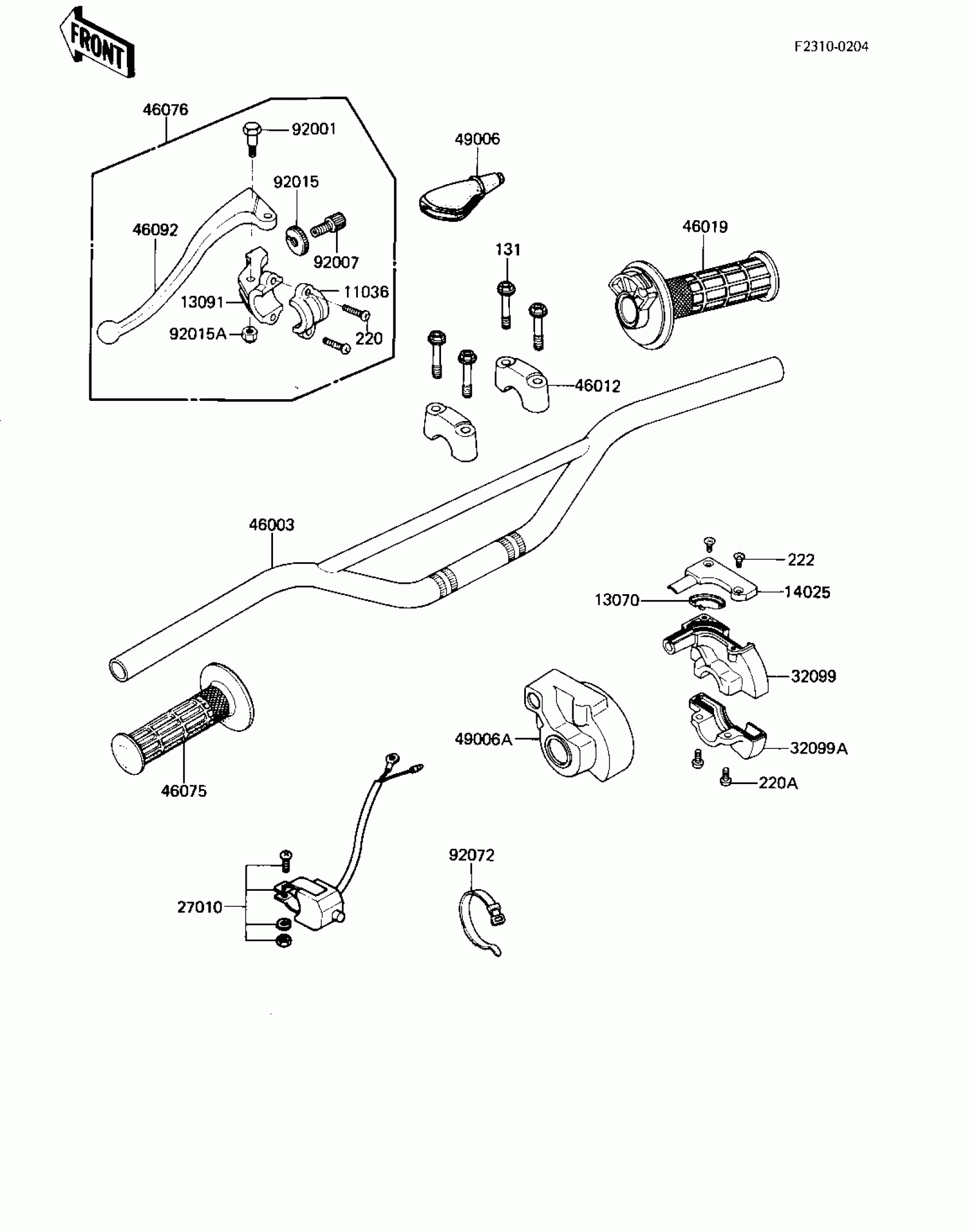

Kawasaki KX500 HANDLEBAR ('83 A1) Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
14025
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE
46003-1119
Unavailable
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46019
GRIP-ASSY,THROTTLE
46019-1027
Unavailable
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1118
$45.35
46092
LEVER-GRIP,CLUTCH
46092-1110
$26.28
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,DUST
49006-1067
$9.88
92001
BOLT,HEX HEAD,6MM
92001-140
Unavailable
92007
SCREW,CABLE ADJUST
46055-010
$28.86
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
92072
BAND,L=123
92072-030
$5.00
131
BOLT-FLANGED,8X40
131P0840
$1.44
220
SCREW-PAN-CROS
220B0514
$4.04
220A
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
