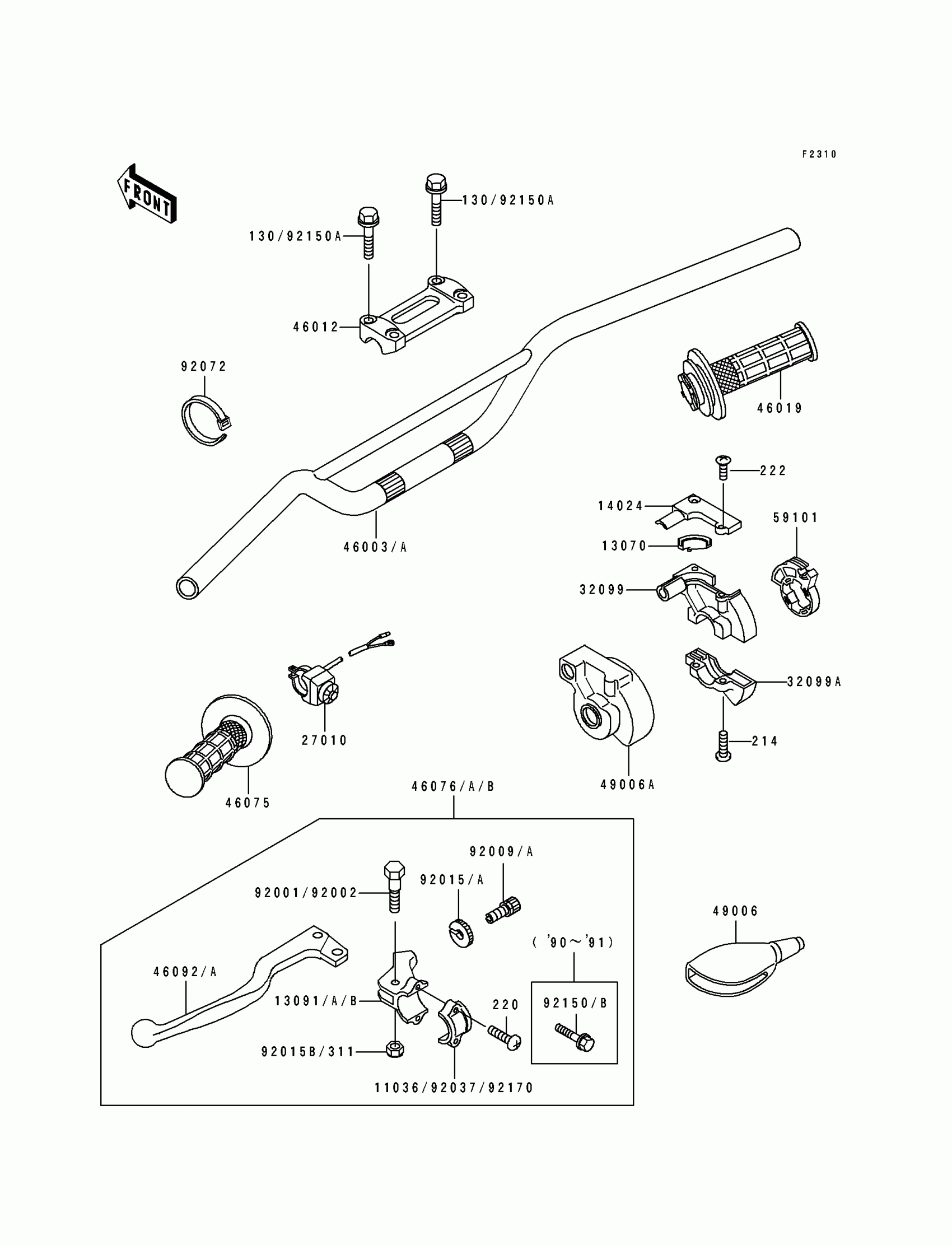

Kawasaki KX500 Handlebar Diagram
#
Description
Price
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091B
HOLDER,CLUTCH LEVER
13091-1728
$51.24
14024
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1161
$56.15
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003A
HANDLE
46003-1313
$121.09
46012
HOLDER-HANDLE,UPP
46012-1190
$68.49
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1024
$25.66
46076B
LEVER-ASSY-GRIP,CLUTCH
46076-1182
$38.15
46092A
LEVER-GRIP,CLUTCH
46092-1165
$15.95
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-1107
$16.50
92001
BOLT,5X22
92007-046
$7.62
92009A
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92015A
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92072
BAND,L=123
92072-030
$5.00
92150A
BOLT,FLANGED,8X30
92150-1455
Unavailable
92150B
BOLT
92150-1474
$5.00
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
214
SCREW-PAN+-,5X18
214C0518
$3.69
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
311
NUT-HEX
311C0500
$0.43
