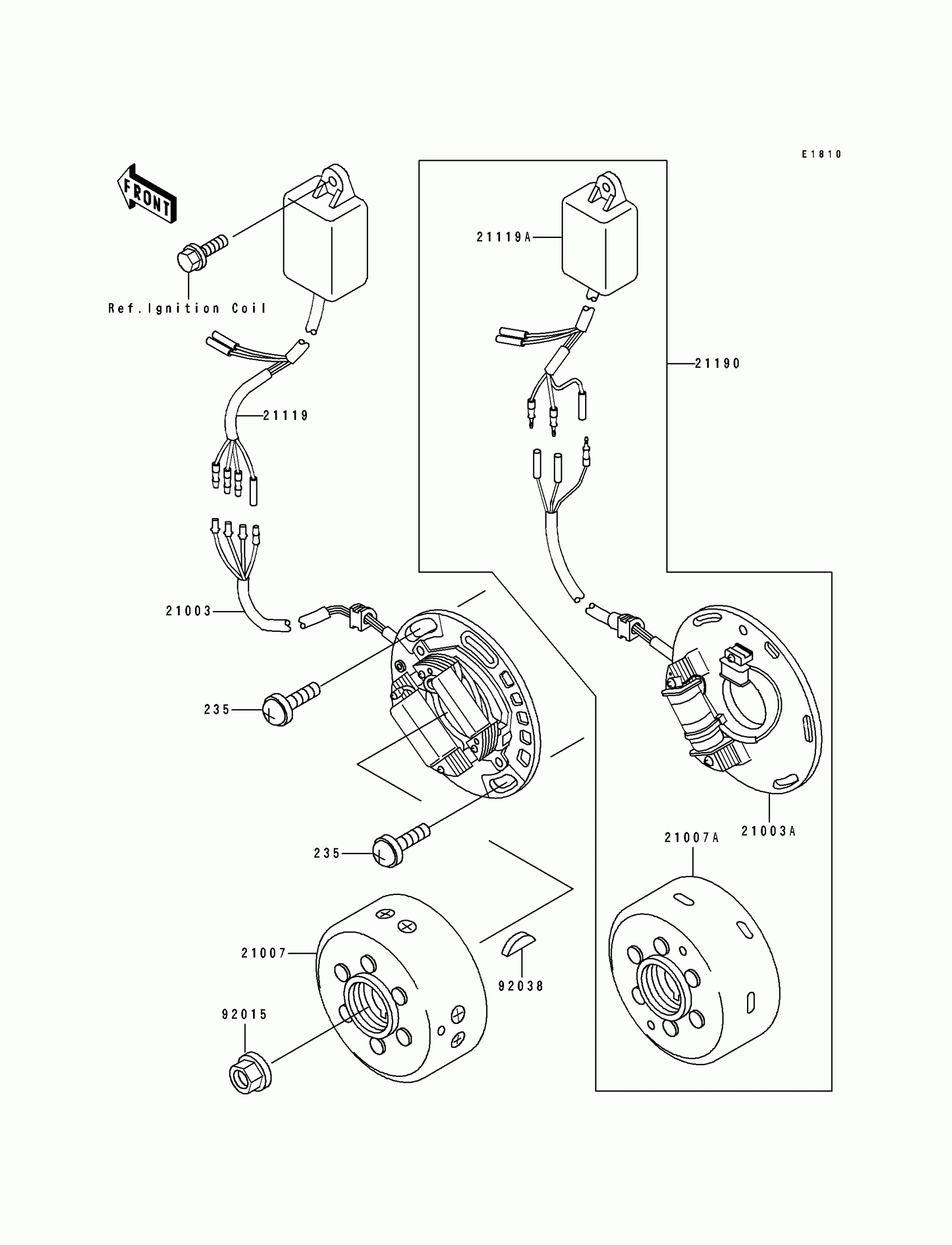

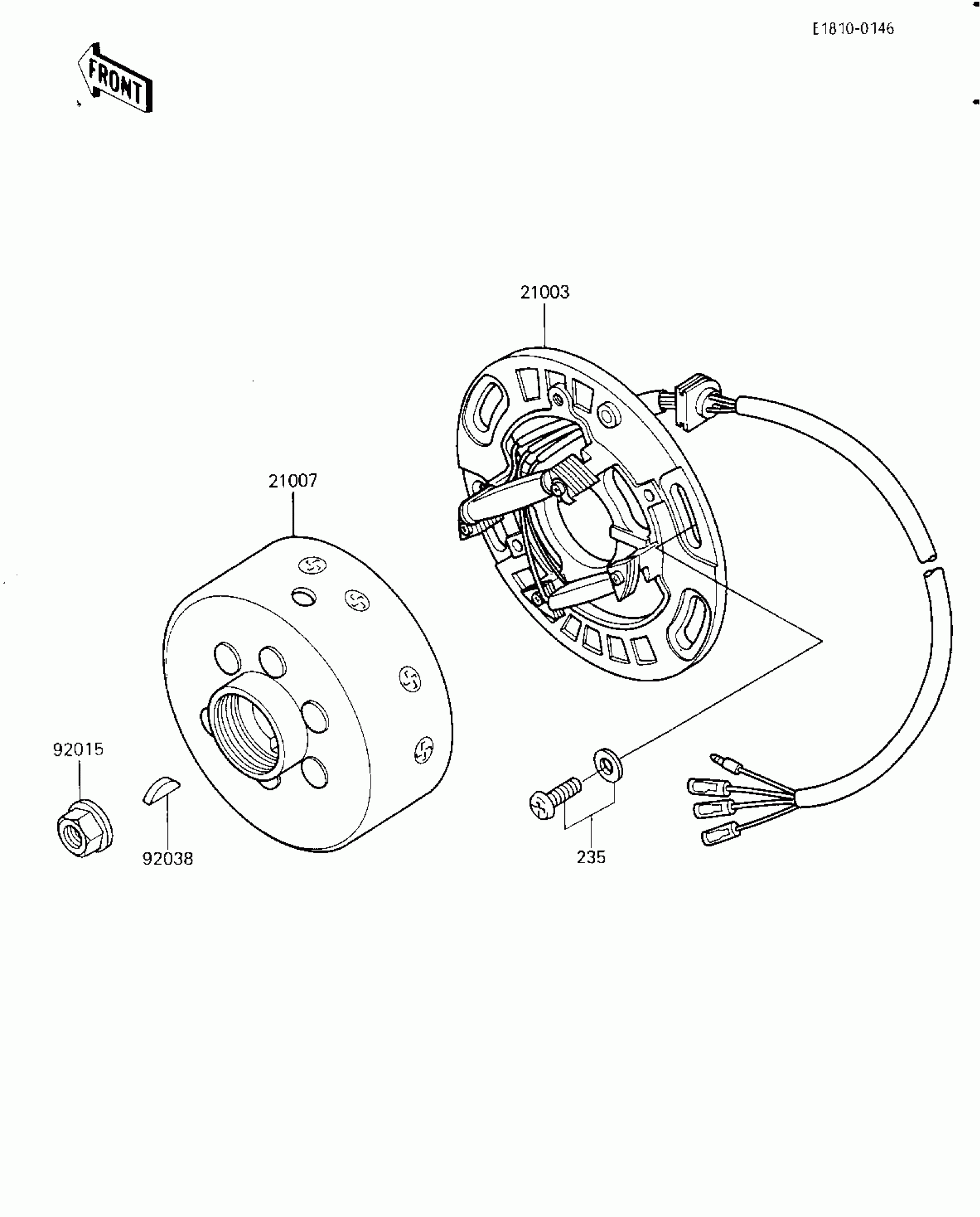

Kawasaki KX500 GENERATOR Diagram

#

Description

Price

21003

STATOR

21003-1141

$550.36

21007

ROTOR,F3T81171

21007-1140

$524.83

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92038

KEY,WOODRUFF

92038-001

$3.78

235

SCREW-PAN-WP-CROS

235B0616

$3.52
