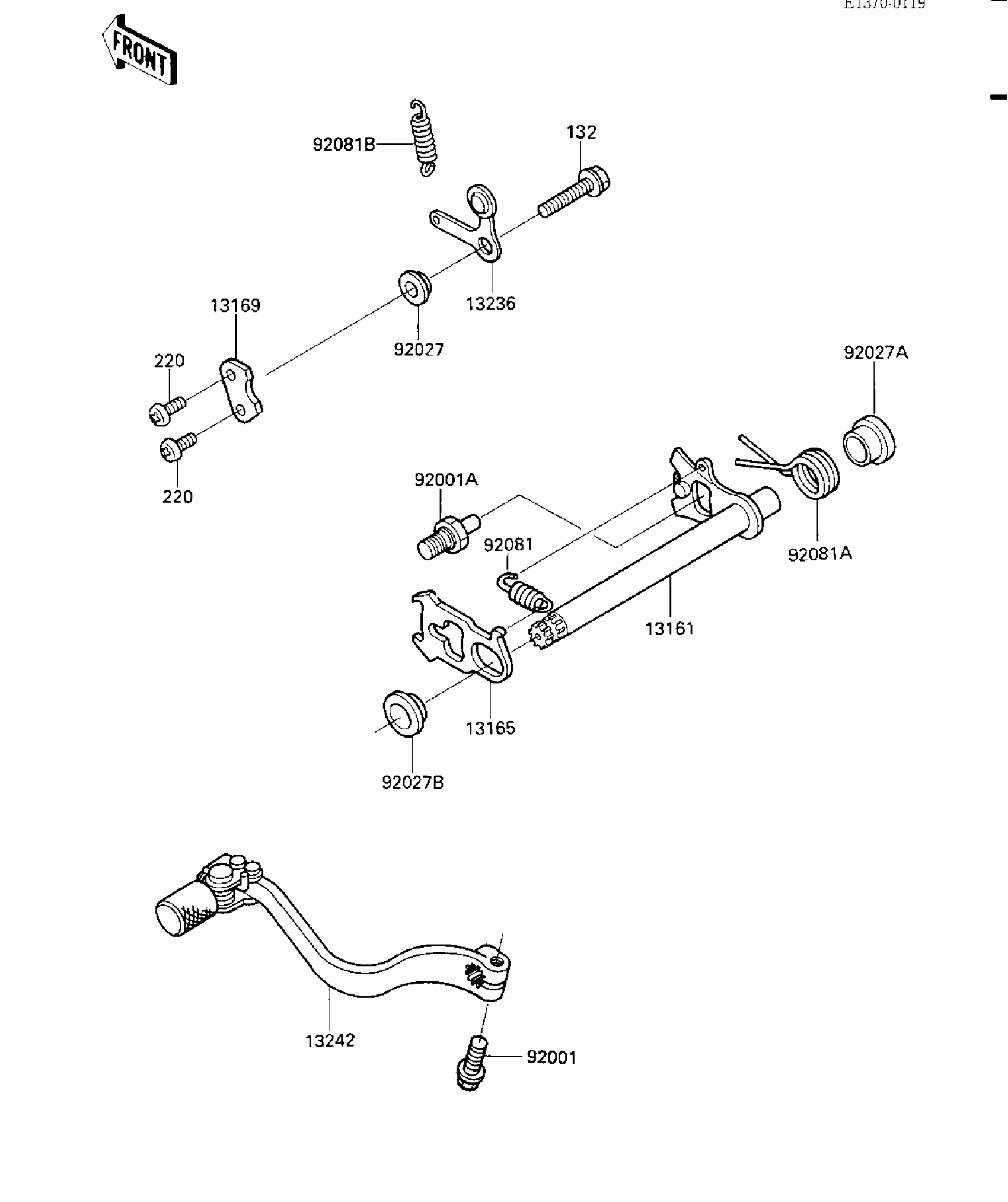

Kawasaki KX500 GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE CHANGE SHAFT

13161-1103

Unavailable

13165

PAWL,CHANGE LEVER

13165-1119

Unavailable

13169

PLATE,CHANGE DRUM

13169-012

$16.33

13236

LEVER,CHANGE DRUM

13236-1021

Unavailable

13242

LEVER-ASSY-CHANGE,PE

13242-1166

Unavailable

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92001A

BOLT,RETURN SPRING

92001-1401

$4.69

92027

COLLAR

92027-1248

Unavailable

92027A

COLLAR,CHANGE SHAFT

92027-1465

Unavailable

92027B

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

$9.82

92081B

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

220

SCREW-PAN-CROS,6X14

220B0614

$1.48
