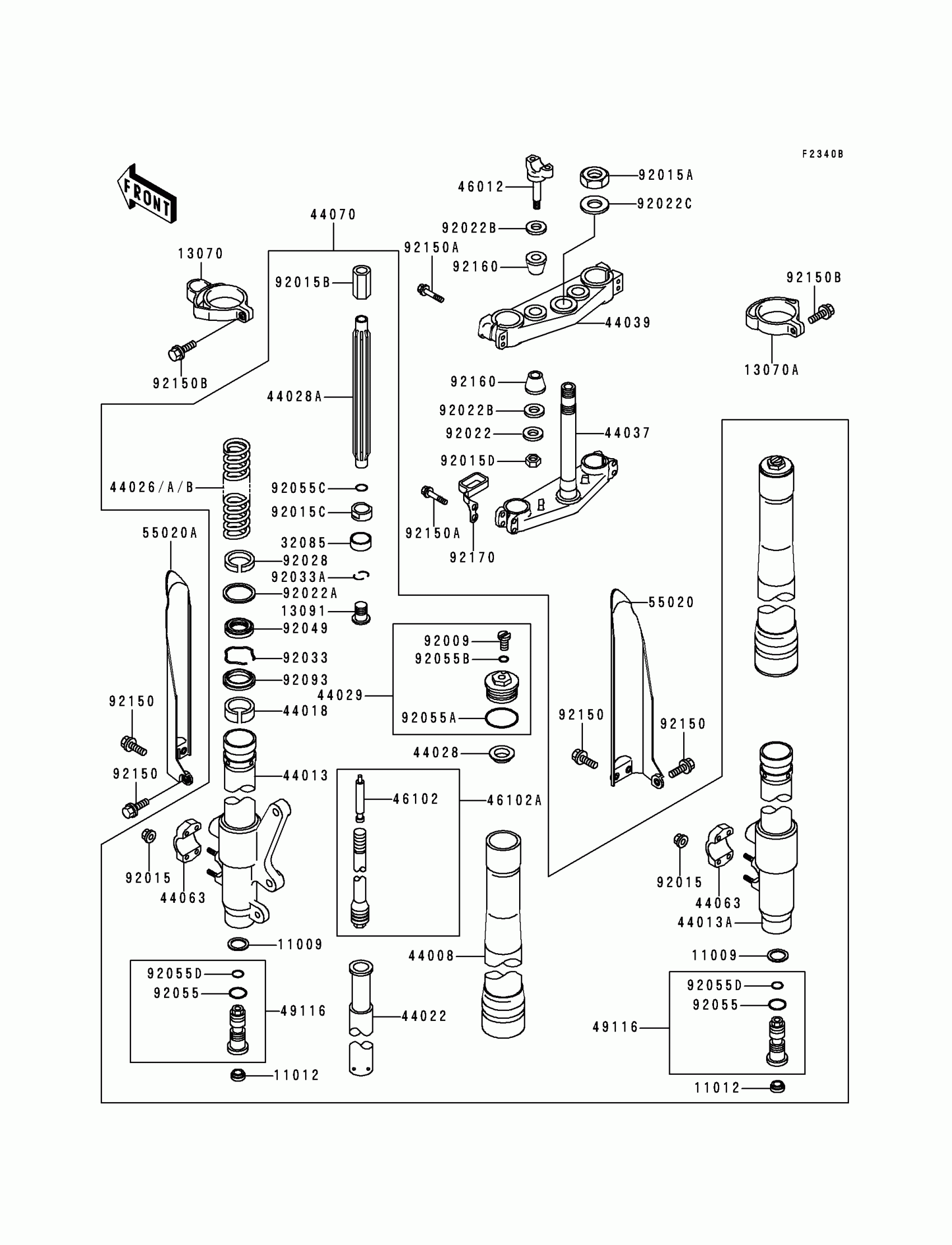

Kawasaki KX500 Front Fork(KX500-E8) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP

11012-1692

$6.16

13070

GUIDE,PROTECTOR,LH,J.S.VIOLET

13070-1277-RE

$31.74

13070A

GUIDE,PROTECTOR,RH,J.S.VIOLET

13070-1278-RE

$25.37

13091

HOLDER

13091-1651

$28.70

32085

STOPPER

32085-1323

$20.04

44008

PIPE-FORK OUTER,GOLD

44008-1033-14

Unavailable

44013

PIPE-FORK INNER,LH

44013-1401

Unavailable

44013A

PIPE-FORK INNER,RH

44013-1402

$422.31

44018

PISTON-FORK,INNER PIPE

44018-1056

$28.45

44022

CYLINDER-FORK

44022-1304

$266.31

44026

SPRING-FRONT FORK,K=0.39

44026-1533

Unavailable

44026A

SPRING-FRONT FORK,K=0.40

44026-1592

Unavailable

44026B

SPRING-FRONT FORK,K=0.41

44026-1600

Unavailable

44028

GUIDE-FORK SPRING

44028-1081

$12.12

44028A

GUIDE-FORK SPRING

44028-1099

Unavailable

44029

SEAT-FORK SPRING

44029-1156

Unavailable

44037

HOLDER-FORK UNDER

44037-1342

Unavailable

44039

HOLDER-FORK UPPER

44039-1266

$181.93

44063

HOLDER-FRONT AXLE

44063-1060

$54.38

44070

DAMPER-ASSY,FORK,J.S.VIOLET

44070-1444-RE

Unavailable

46012

HOLDER-HANDLE,LWR

46012-1264

$44.98

46102

ROD,FORK,INNER

46102-1340

Unavailable

46102A

ROD,FORK,ASSY

46102-1380

Unavailable

49116

VALVE-ASSY,FORK

49116-1142

Unavailable

55020

GUARD,FORK,RH,J.S.VIOLET

55020-1493-RE

$50.77

55020A

GUARD,FORK,LH,J.S.VIOLET

55020-1554-RE

$50.77

92009

SCREW

92009-1568

$7.21

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$16.69

92015B

NUT

92015-1872

$28.97

92015C

NUT

92015-1945

$10.24

92015D

NUT,LOCK,10MM

92015-1962

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER

92022-1299

$8.58

92022B

WASHER

92022-1737

$5.52

92022C

WASHER,STEERING STEM

92022-1873

$7.45

92028

BUSHING

92028-1670

$28.64

92033

RING-SNAP

92033-1077

$4.96

92033A

RING-SNAP

92033-1271

$6.87

92049

SEAL-OIL

92049-1373

$28.98

92055

RING-O,FORK

92055-1062

$4.69

92055A

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92055B

RING-O,2.8X6.6X1.9

92055-1441

$4.33

92055C

RING-O

92055-1442

$9.21

92055D

RING-O,FORK VALVE

92055-1513

$3.95

92093

SEAL,FORK OUTER TUBE

92093-1342

$18.72

92150

BOLT,6X12

92150-1435

$4.31

92150A

BOLT,FLANGED,8X40

92150-1516

$14.15

92150B

BOLT,5X16

92150-1802

$5.00

92160

DAMPER,HANDLE HOLDER

92160-1544

$5.11

92170

CLAMP,HOSE

92170-1604

$25.74
