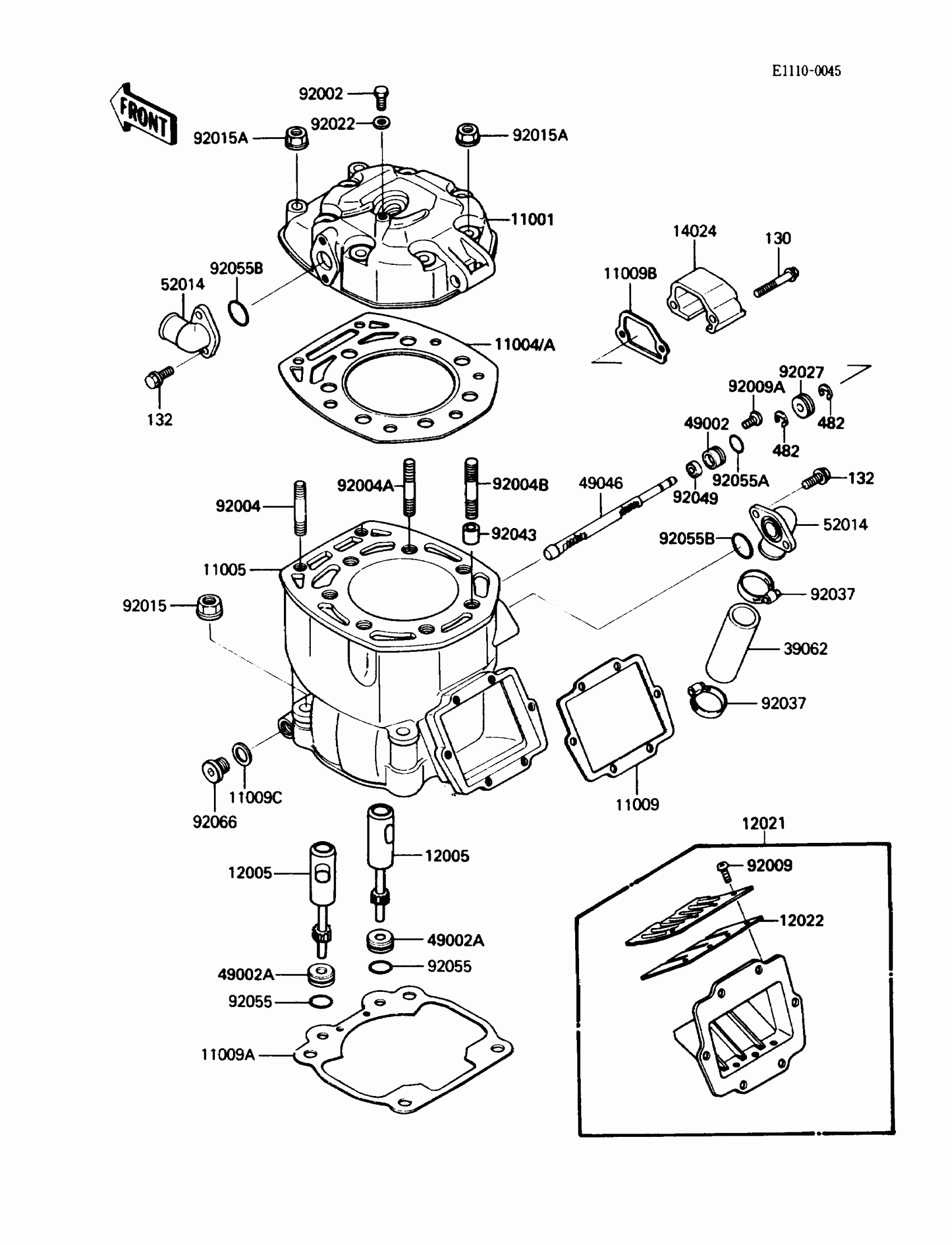

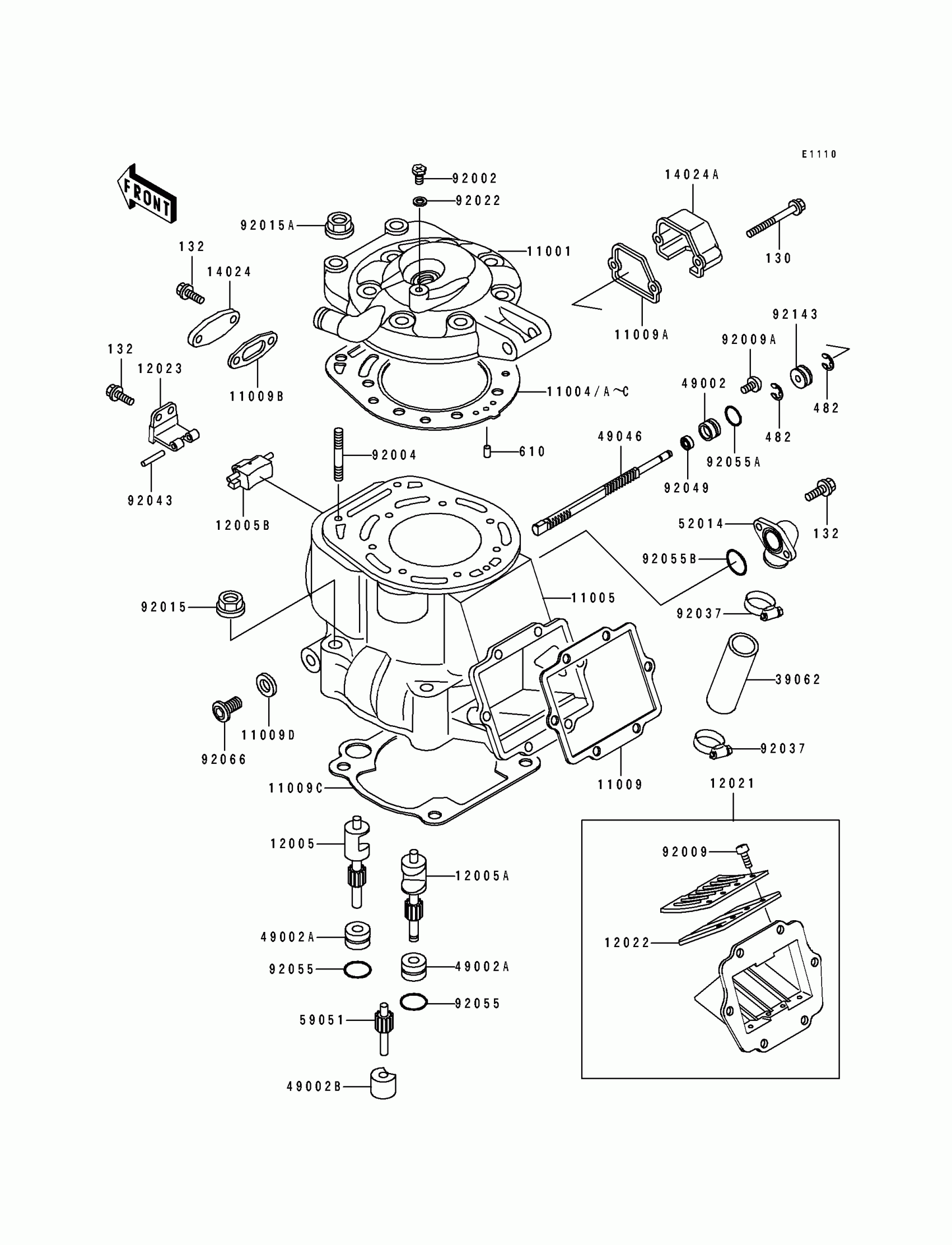

Kawasaki KX500 Cylinder Head/Cylinder Diagram

#

Description
Price

11001

HEAD-CYLINDER

11001-1288

$396.86

11004

GASKET-HEAD,STEEL,T=0.2

11004-1187

$51.01

11004A

GASKET-HEAD,STEEL,T=0.4

11004-1209

$51.01

11004B

GASKET-HEAD,T=1.0

11004-1276

$81.70

11005

CYLINDER-ENGINE

11005-1564

$1,008.52

11009

GASKET,VALVE COVER

11009-1948

$6.38

11009A

GASKET,REED VALVE

11009-1950

$11.49

11009B

GASKET,GOVERNOR COVER

11009-1960

$5.42

11060

GASKET,CYLINDER BASE

11060-1874

$21.70

12005

VALVE-EXHAUST,LH

12005-1109

$89.95

12005A

VALVE-EXHAUST,RH

12005-1110

$98.74

12005B

VALVE-EXHAUST,CENTER

12005-1111

$85.87

12021

VALVE-ASSY-REED

12021-1070

$143.46

12022

VALVE-REED

12022-1017

$29.73

12023

HOLDER-VALVE,CENTER

12023-1058

$116.02

14024

COVER,CENTER VALVE

14024-1588

$11.93

14024A

COVER,GOVERNOR

14024-1611

$13.25

39062

HOSE-COOLING,19X25X75

39062-1137

$25.59

49002

GUIDE-VALVE,ROD

49002-1062

$20.77

49002A

GUIDE-VALVE

49002-1093

Unavailable

49002B

GUIDE-VALVE,IDLE GEAR

49002-1094

Unavailable

49046

ROD-GOVERNOR

49046-1064

$87.32

52014

ELBOW

52014-1084

Unavailable

59051

GEAR-SPUR,IDLE

59051-1205

Unavailable

92002

BOLT,6X10

92002-1222

$8.10

92004

STUD,8X35

92004-1009

$6.38

92009

SCREW,3X6

92009-1371

$4.18

92009A

SCREW,5X10

92009-1502

$4.18

92015

NUT,FLANGED,10MM

92015-077

$4.69

92015A

NUT,8MM

92015-1143

$0.65

92022

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92043

PIN,4X23.8

92043-1373

$4.17

92049

SEAL-OIL,RSO-5.5X11X4

92049-1206

$10.39

92055

RING-O,17.5X1.5

92055-022

$6.22

92055A

RING-O,12X1.5

92055-025

$4.69

92055B

RING-O,19.5X1.5

92055-055

$4.31

92065

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$4.07

130

BOLT-FLANGED

130G0535

$3.84

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.35

610

ROLLER,4X8

610A0408

$4.31

92066

PLUG,12X10

92066-1222

$12.37

92143

COLLAR

92143-1056

$10.57
