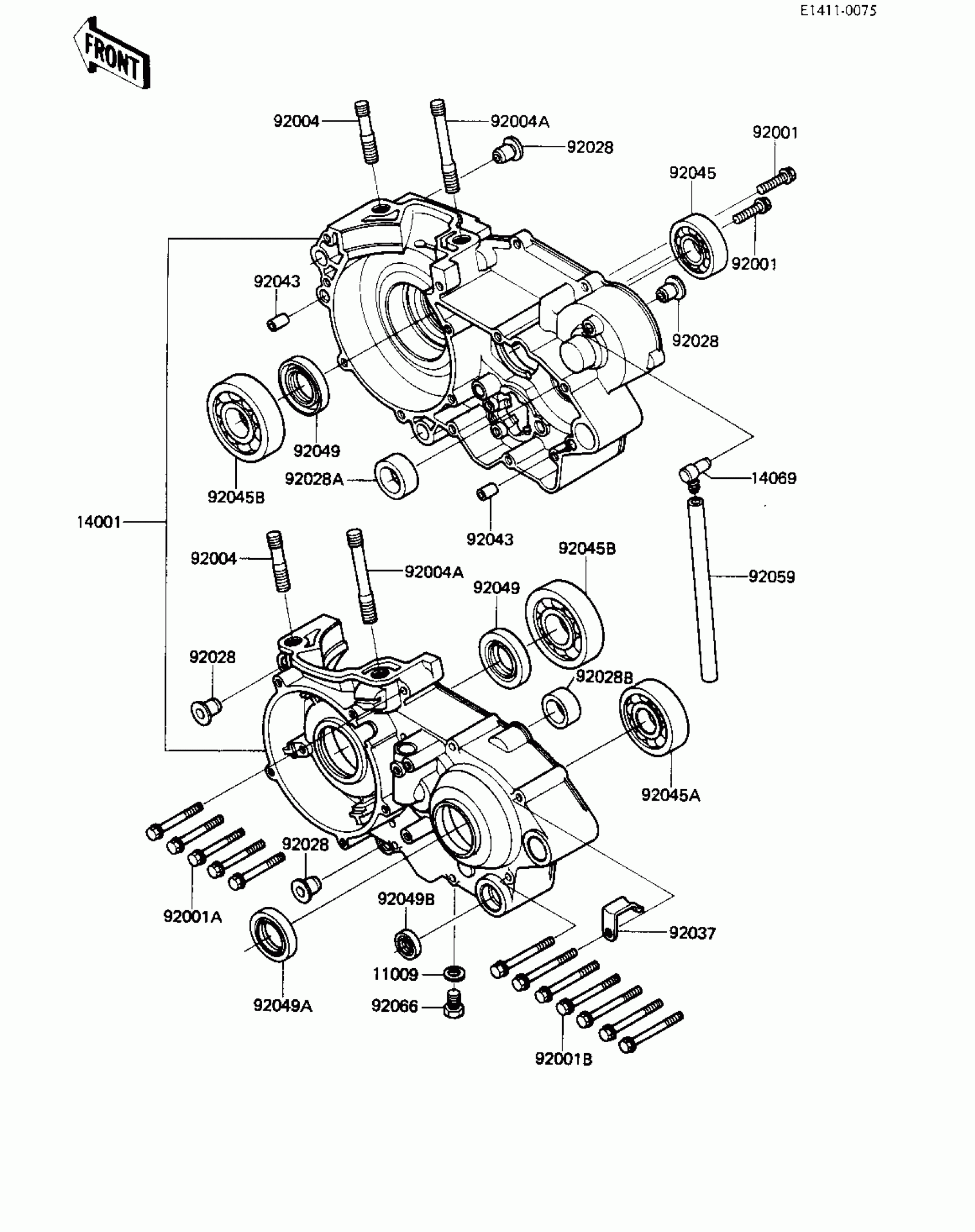

Kawasaki KX500 CRANKCASE ('83 A1) Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.96

14001

SET-CRANKCASE

14001-5127

Unavailable

14069

BREATHER

14069-003

$10.29

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92001A

BOLT-FLANGED-SMALL

132G0650

$3.43

92001B

BOLT-FLANGED-SMALL,6X60

132G0660

$3.84

92004

STUD,10X35

92004-1051

Unavailable

92004A

STUD,10X67

92004-1052

$8.45

92028

BUSHING

92028-1133

Unavailable

92028A

BUSHING,26X35X14

92028-131

$38.06

92028B

BUSHING,23X30X13

92028-132

$38.06

92037

CLAMP,HARNESS

92037-1318

$7.34

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING,BALL

92045-1006

Unavailable

92045A

BEARING-BALL,#6305

92045-1011

$38.42

92045B

BEARING-BALL,6306SH2,9TC

92045-1027

$61.39

92049

SEAL-OIL

92050-057

$23.48

92049A

SEAL-OIL,TC32457

92049-1159

$8.60

92049B

SEAL-OIL,TB13225.5

92051-005

$7.74

92059

PIPE-BREATHER

92059-061

Unavailable

92066

PLUG,DRAIN,10X12

92067-001

$4.41
