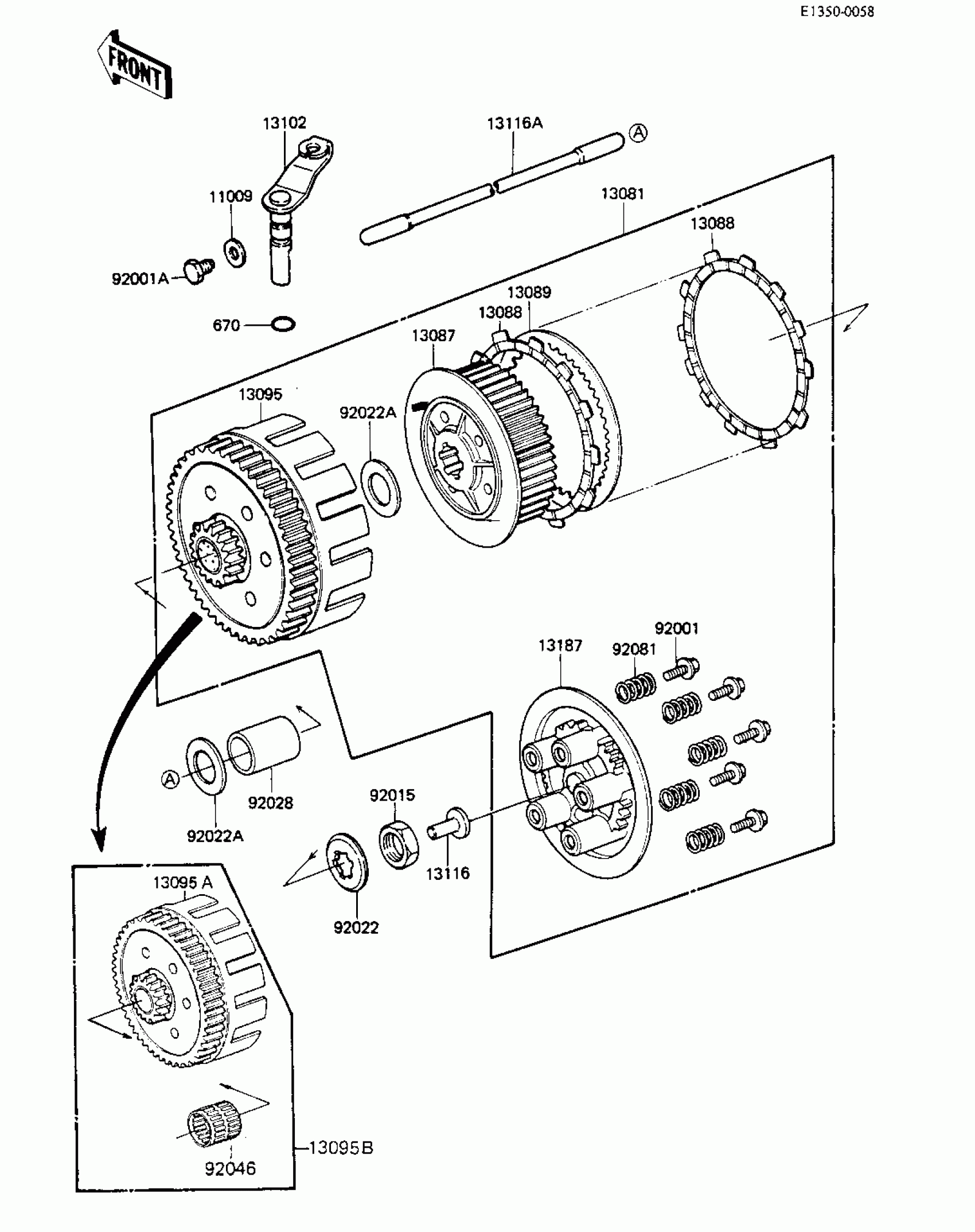

Kawasaki KX500 CLUTCH ('83 A1) Diagram

#

Description
Price

11009

GASKET,6X14X0.8

92065-092

$4.34

13081

CLUTCH-ASSY

13081-1084

Unavailable

13087

HUB,CLUTCH

13087-044

Unavailable

13088

PLATE,CLUTCH FRICTION

13088-041

Unavailable

13089

PLATE-CLUTCH,T=1.2

13089-1010

$15.41

13095

HOUSING COMP-CLUTCH

13095-5002

Unavailable

13095A

HOUSING-COMP-CLUTCH

13095-1103

Unavailable

13095B

HOUSING COMP-CLUTCH

13095-5002

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1015

Unavailable

13116

ROD-PUSH,CLUTCH

13116-1010

Unavailable

13116A

ROD-PUSH,CLUTCH.L=172

13116-1042

Unavailable

13187

PLATE-CLUTCH OPERATI

13187-1011

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92001A

BOLT,CLUTCH RELEASE

92003-130

$6.01

92015

NUT,20M/M

92015-1058

$7.20

92022

WASHER,LOCK

92022-1047

Unavailable

92022A

WASHER,20.5X34X1.4

92022-168

$9.51

92028

BUSHING,CLUTCH

92028-1076

Unavailable

92046

BEARING-NEEDLE,WR25/

92046-1049

Unavailable

92081

SPRING,CLUTCH

92081-1176

$10.64

670

O RING,10MM

670B2010

$1.50
