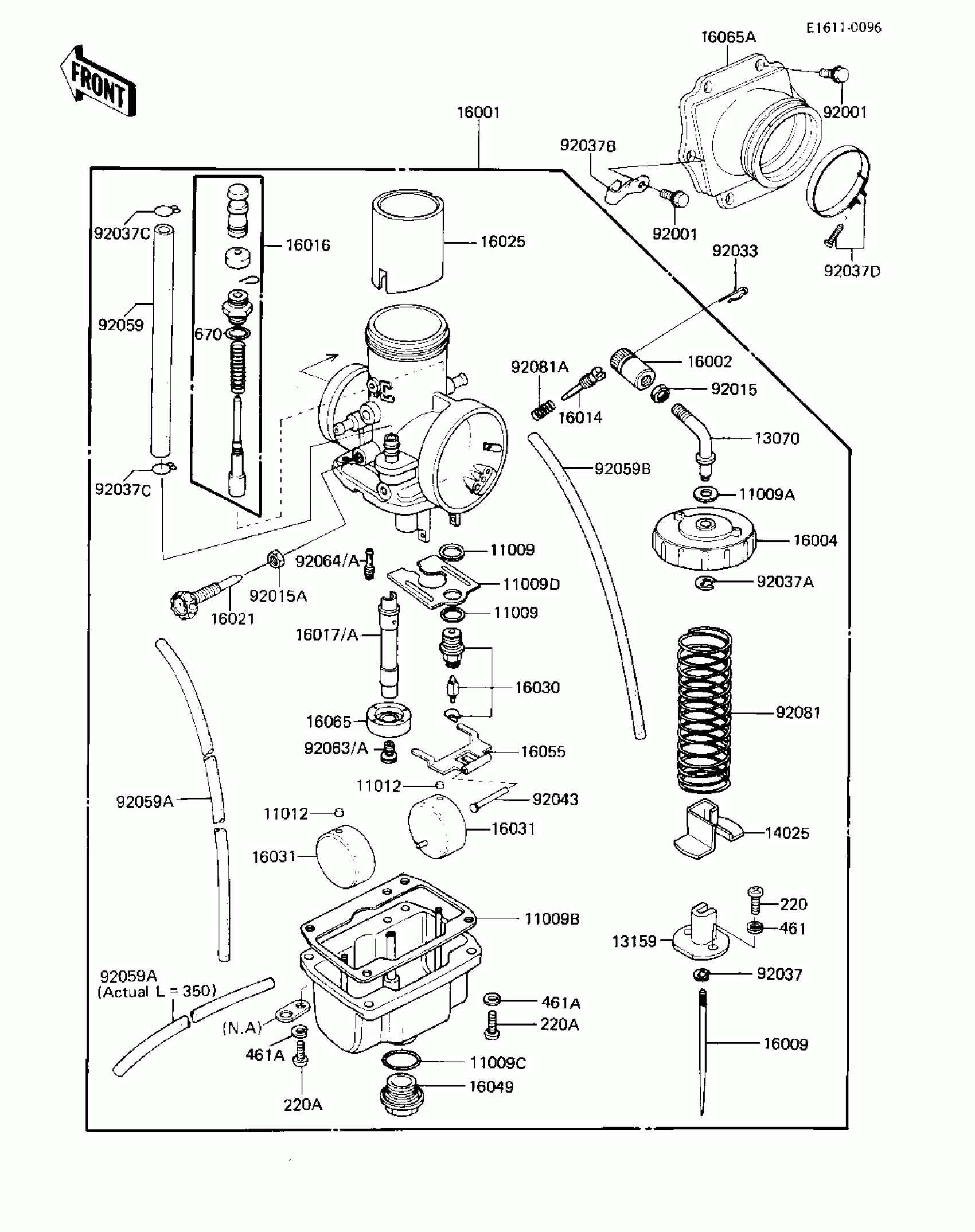

Kawasaki KX500 CARBURETOR ('83 A1) Diagram
#
11009
GASKET,FLOAT VALVE
11009-1076
Unavailable
11009A
GASKET,CABLE GUIDE
11009-1191
Unavailable
11009B
GASKET,FLOAT CHAMBER
16019-028
Unavailable
11009C
GASKET,MAIN JET COVER
16038-009
Unavailable
11009D
BAFFLE-CARB
16038-019
$18.24
11012
CAP,FLOAT
11012-1047
Unavailable
13070
GUIDE,CABLE
13070-1014
Unavailable
13159
CONNECTOR,THROTTLE
13159-1010
Unavailable
14025
COVER,THROTTLE
14025-1478
Unavailable
16001
CARBURETOR
16001-1583
$331.15
16002
ADJUSTER-CABLE
16002-1006
Unavailable
16004
TOP,MIXING CHAMBER
16004-1010
$36.19
16009
NEEDLE-JET,6CG5
16009-1126
$51.24
16014
SCREW
16014-006
$17.15
16016
PLUNGER,STARTER
16016-1026
Unavailable
16017
JET-NEEDLE,S-2
16017-1125
$31.43
16017A
JET-NEEDLE,S-4
16017-1201
$31.60
16021
SCREW,THROT VLV ADJST
16021-1030
Unavailable
16025
VALVE-THROTTLE,CA3.0
16025-1077
$98.77
16030
VALVE-FLOAT,3.3
16030-1027
$39.98
16031
FLOAT
16031-029
$64.25
16049
COVER-MAIN JET
16049-006
Unavailable
16055
ARM-FLOAT
16055-009
Unavailable
16065
HOLDER-CARBURETOR
16065-1052
Unavailable
16065A
HOLDER-CARBURETOR
16065-1059
Unavailable
92001
BOLT-FLANGED-SMALL
132G0620
$2.33
92015
NUT,CABLE ADJUST LOCK
16003-004
$7.34
92015A
NUT,ADJUST LOCK
16003-006
$7.34
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,CABLE GUIDE
16008-011
Unavailable
92037B
CLAMP CABLE
92037-016
Unavailable
92037C
CLAMP,CARB CONECT HOS
92037-056
$6.60
92037D
CLAMP,CARBURETOR HOL
92037-1313
Unavailable
92043
PIN,FLOAT
16032-008
$6.57
92059
HOSE,FUEL,6.5OX11.5O
92059-1026
Unavailable
92059A
TUBE,3.5X6.5X410
92059-1142
Unavailable
92059B
TUBE,3.5X6.5X450
92059-1250
$6.61
92063
MAIN JET,#162.5R
92063-1019
Unavailable
92063A
JET-MAIN NO 152.5R
92063-121
$10.41
92064
JET-PILOT NO 45
92064-044
$19.70
92064A
JET-PILOT,#70
92064-1062
$11.77
92081
SPRING,THROTTLE VALVE
16006-028
$11.14
92081A
SPRING,PILOT AIR SCREW
16022-007
$8.13
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
461
WASHER SPRING 3MM
461F0300
$0.46
461A
WASHER SPRING 5MM
461F0500
$0.69
670
O RING,9MM
670B1509
$3.65
