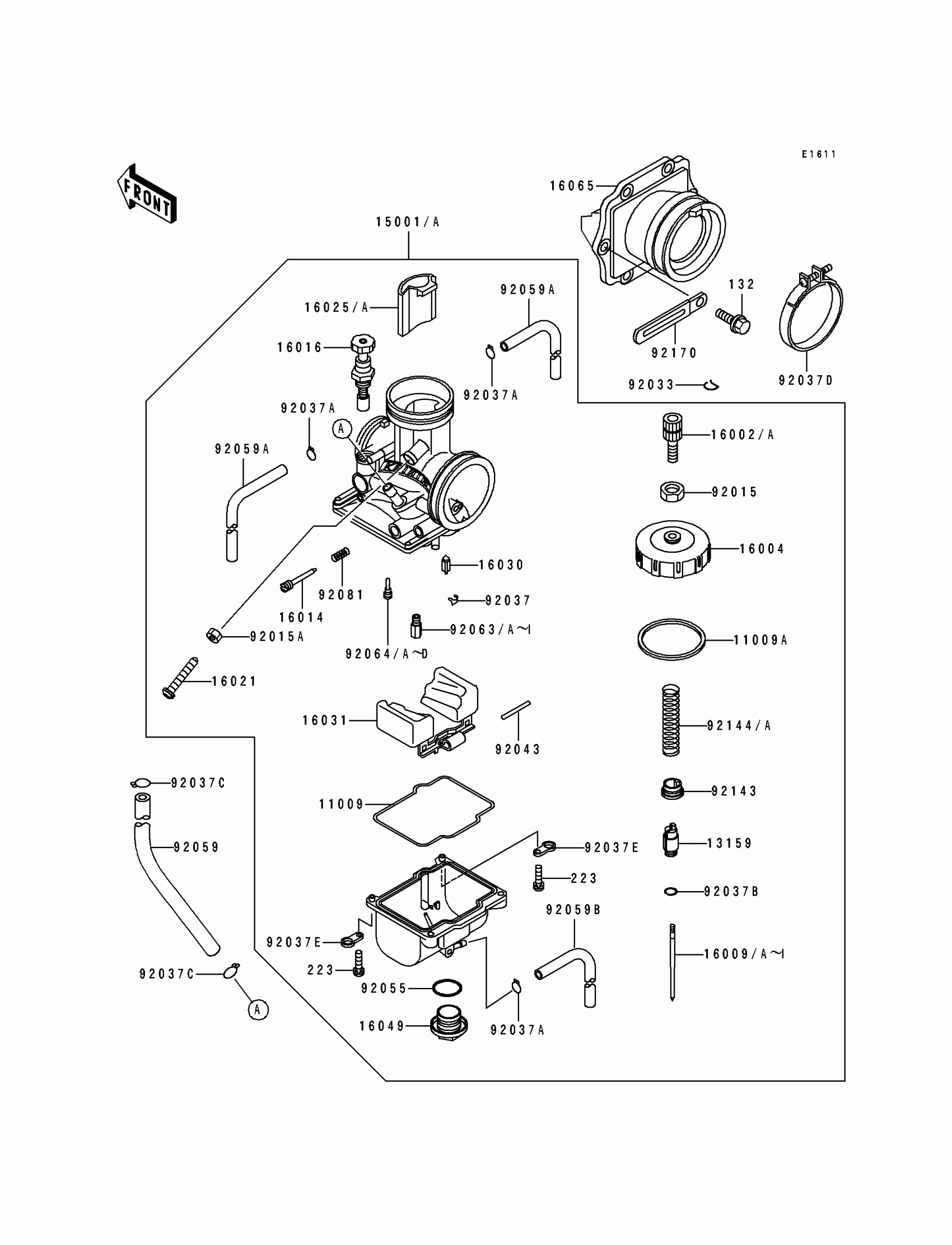

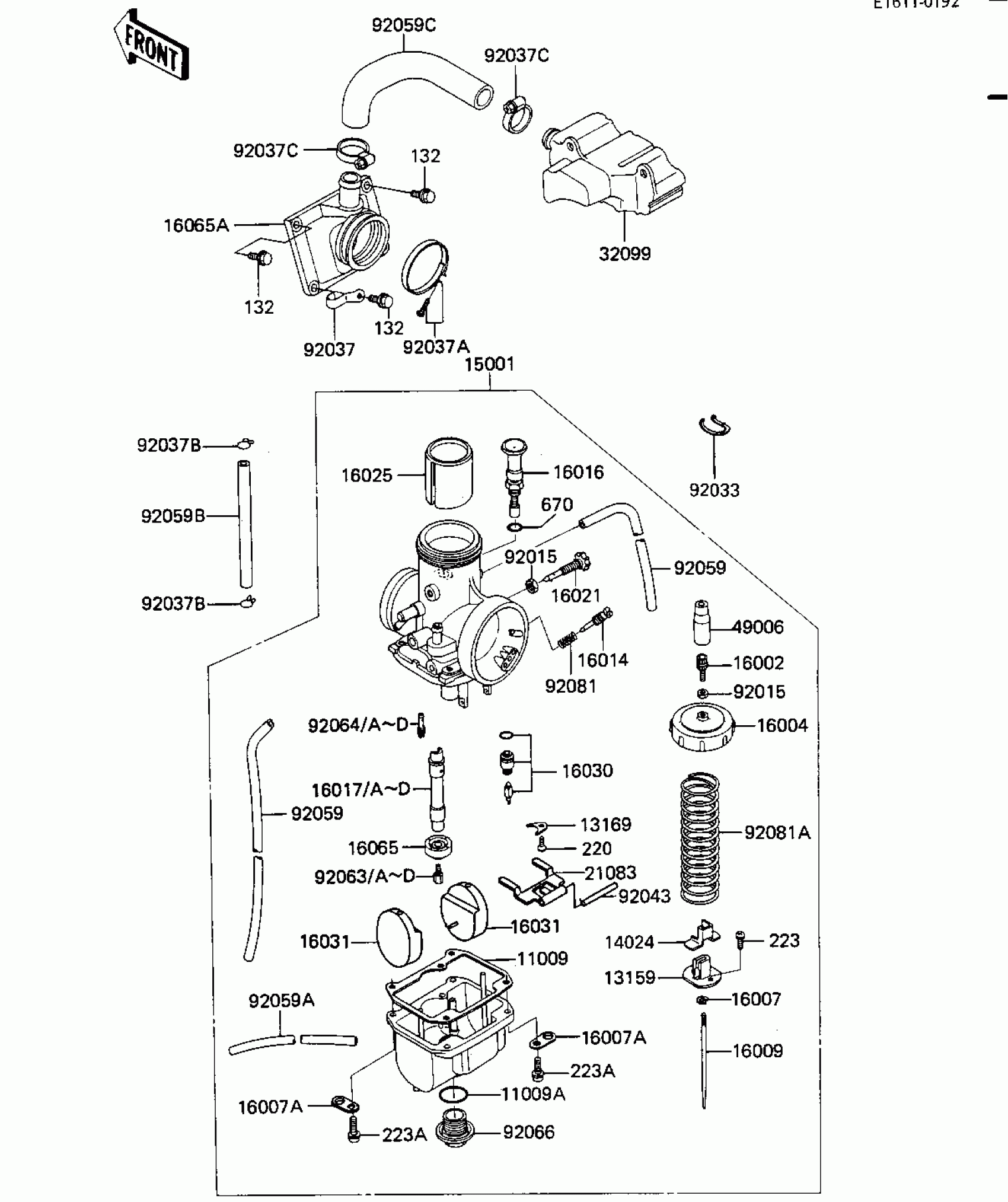

Kawasaki KX500 Carburetor Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1716
$15.24
11009A
GASKET,CHAMBER CAP
11009-1717
$12.65
13159
CONNECTOR,THROTTLE CABLE
13159-1063
$21.55
15001A
CARBURETOR-ASSY
15001-1563
Unavailable
16002A
ADJUSTER-CABLE
16002-1061
$26.79
16004
CAP-CHAMBER,MIXING
16004-1061
$53.88
16009E
NEEDLE-JET,N82K
16009-1578
$39.28
16009F
NEEDLE-JET,N82L
16009-1579
$35.81
16009G
NEEDLE-JET,N82M
16009-1580
$39.28
16009H
NEEDLE-JET,N82N
16009-1581
$35.82
16009I
NEEDLE-JET,N82P
16009-1582
$39.28
16014
SCREW-PILOT AIR
16014-1058
$20.77
16016
PLUNGER,STARTER
16016-1075
$40.69
16021
SCREW-THROTTLE STOP
16021-1124
Unavailable
16025A
VALVE-THROTTLE,CA7
16025-1163
$175.01
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1067
$59.98
16049
COVER-MAIN JET
16049-1051
$33.28
16065
HOLDER-CARBURETOR
16065-1180
$90.25
92015
NUT,CABLE ADJUST LOCK
92015-1574
$6.57
92015A
NUT,THROTTLE STOP SCREW
92015-1707
Unavailable
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,FLOAT VALVE
16044-007
$7.91
92037A
CLAMP,TUBE
92037-1396
$5.52
92037B
CLAMP,JET NEEDLE
92037-1401
$4.31
92037C
CLAMP,TUBE
92037-147
$7.34
92037D
CLAMP,55MM
92037-1486
$8.66
92037E
CLAMP,HOSE
92037-1969
$8.10
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,MAIN JET COVER
92055-1167
$9.51
92059
TUBE
92059-1888
$9.11
92059A
TUBE,4X7X480
92059-1898
$17.41
92059B
TUBE,3.5X6.5X390
92059-1899
$10.79
92063
JET-MAIN,#162
92063-1369
$15.76
92063A
JET-MAIN,#165
92063-1370
$15.76
92063B
JET-MAIN,#168
92063-1371
$15.76
92063E
JET-MAIN,#170
92063-1372
$15.76
92063F
JET-MAIN,#172
92063-1373
$15.76
92063H
JET-MAIN,#188
92063-1379
$15.34
92064
JET-PILOT,#55
92064-1145
$19.05
92064A
JET-PILOT,#58
92064-1146
$19.96
92064B
JET-PILOT,#60
92064-1147
$19.96
92064C
JET-PILOT,#62
92064-1148
$19.96
92064D
JET-PILOT,#65
92064-1149
Unavailable
92081
SPRING,ADJUST SCREW
92081-1555
$5.46
92143
COLLAR,THROTTLE VALVE
92143-1201
$24.84
92144A
SPRING,THROTTLE VALVE
92144-1494
$19.56
92170
CLAMP,CARBURETOR HOSE
92170-1113
$4.31
132
BOLT-FLANGED-SMALL
132G0620
$2.33
223
SCREW-PAN-WS-CROS,4X16
223C0416
$4.12
