Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0073

$252.81

39111

ROD-TIE,SUSPENSION

39111-0033

$136.06

42036

SLEEVE,ROD,L=78.4

42036-0020

$17.95

42036A

SLEEVE,SUSPENSION ARM,L=49

42036-0021

$13.60

42036B

SLEEVE,SUSPENSION ARM,L=37

42036-0022

$11.93

42036C

SLEEVE,10X16X19.3

42036-0030

$11.93

42036D

SLEEVE

42036-1351

$11.28

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,F-2016

92046-1151

$19.48

92046A

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$19.53

92049

SEAL-OIL,SDO26X32X4

92049-0063

$12.98

92049A

SEAL-OIL

92049-0069

$12.29

92093

SEAL

92093-1436

$7.26

92152

COLLAR

92152-0425

$10.06

92152A

COLLAR

92152-1139

$8.86

92153

BOLT,10X45

92153-0937

$8.12

92153A

BOLT,FLANGED,12X95

92153-0938

$11.93

92153B

BOLT,FLANGED,12X86

92153-0939

$11.93

92153C

BOLT,10X58

92153-1386

$6.81

92153D

BOLT,12MM,L=122

92153-1643

$36.90

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

92210A

NUT,LOCK,10MM

92210-1184

$6.11

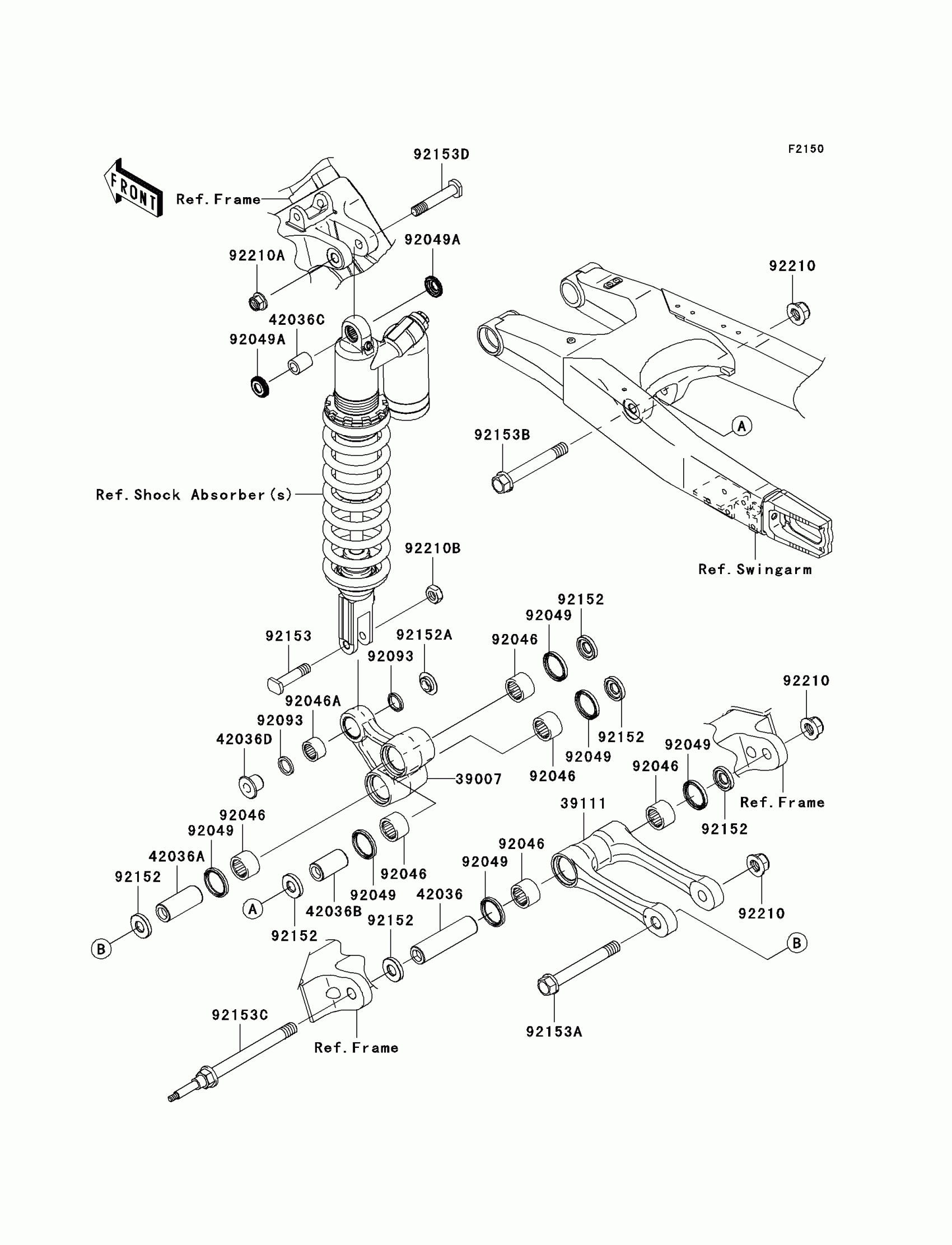

Kawasaki KX450F Rear Suspension Diagram

ARM-SUSP,UNI TRAK

ROD-TIE,SUSPENSION

SLEEVE,ROD,L=78.4

SLEEVE,SUSPENSION ARM,L=49

SLEEVE,SUSPENSION ARM,L=37

SLEEVE,10X16X19.3

SLEEVE

NUT,LOCK,FLANGED,12MM

BEARING-NEEDLE,F-2016

BEARING-NEEDLE,7E-HVS16X22X12

SEAL-OIL,SDO26X32X4

SEAL-OIL

SEAL

COLLAR

COLLAR

BOLT,10X45

BOLT,FLANGED,12X95

BOLT,FLANGED,12X86

BOLT,10X58

BOLT,12MM,L=122

NUT,LOCK,FLANGED,10MM

NUT,LOCK,10MM
