2006 Kawasaki KX450F Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

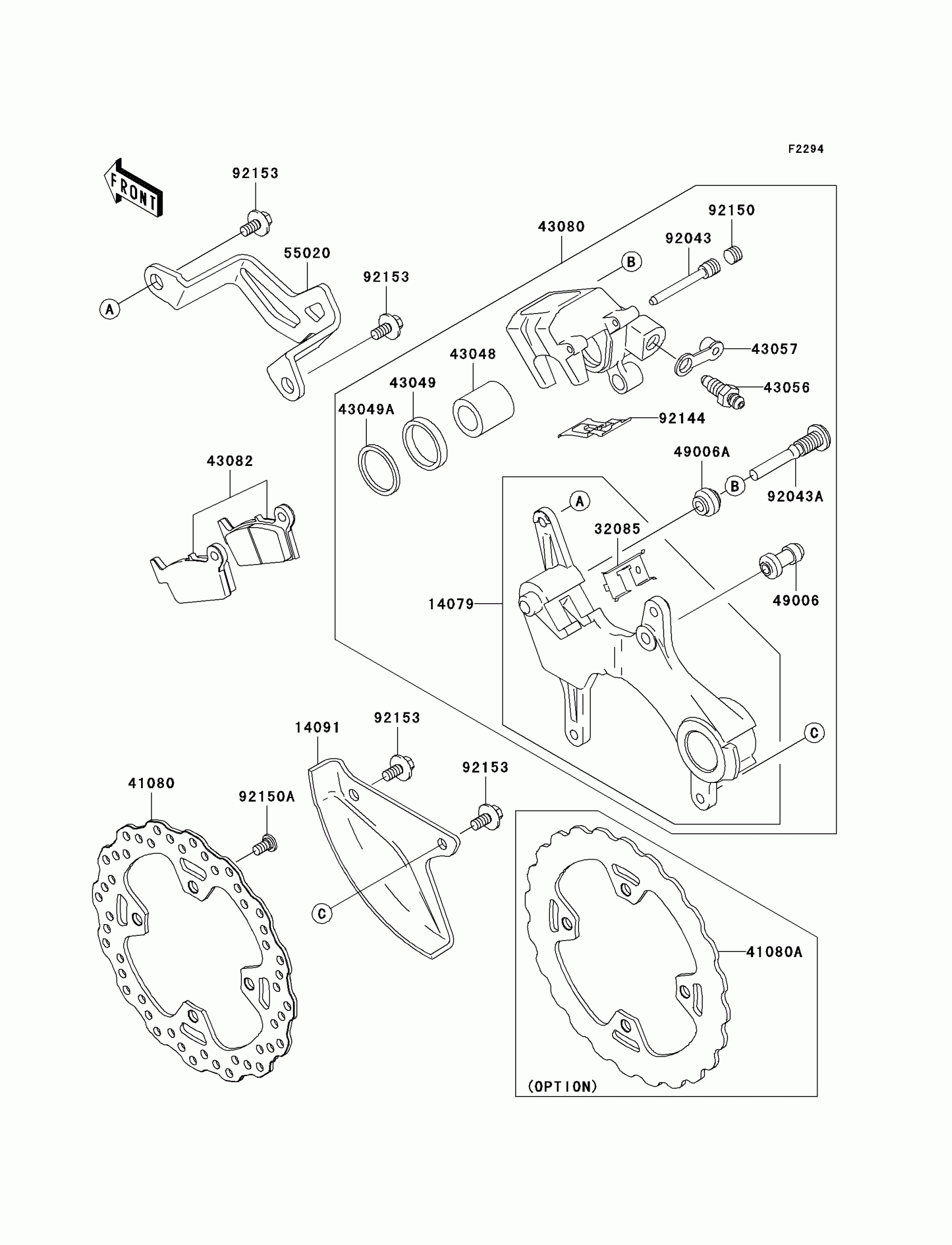

2006 Kawasaki KX450F Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$160.10

In stock

14091

COVER,REAR DISC,WHITE

14091-1523-RZ

1

$38.30

In stock

32085

STOPPER,PAD

32085-1386

1

$7.04

In stock

41080

DISC,RR

41080-0076

1

$258.67

In stock

41080A

DISC,RR

41080-0094

1

$241.33

In stock

43048

PISTON-CALIPER

43048-1066

1

$74.44

In stock

43049

PACKING

43049-1063

1

$6.39

In stock

43049A

PACKING

43049-1064

1

$4.88

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,RR

43080-0037

1

$281.55

In stock

43082

PAD-ASSY-BRAKE

43082-0048

1

$72.99

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

55020

GUARD,RR CALIPER

55020-0018

1
Out of stock

92043

PIN,HANGER

92043-1507

1

$10.88

In stock

92043A

PIN

92043-1508

1

$10.88

In stock

92144

SPRING,PAD

92144-1819

1

$6.39

In stock

92150

BOLT,PLUG

92150-1692

1

$6.24

In stock

92150A

1

$3.97

In stock

92153

BOLT,FLANGED,6X14

92153-0936

1
Out of stock
