2006 Kawasaki KX450F Front Master Cylinder Diagram

← All diagrams

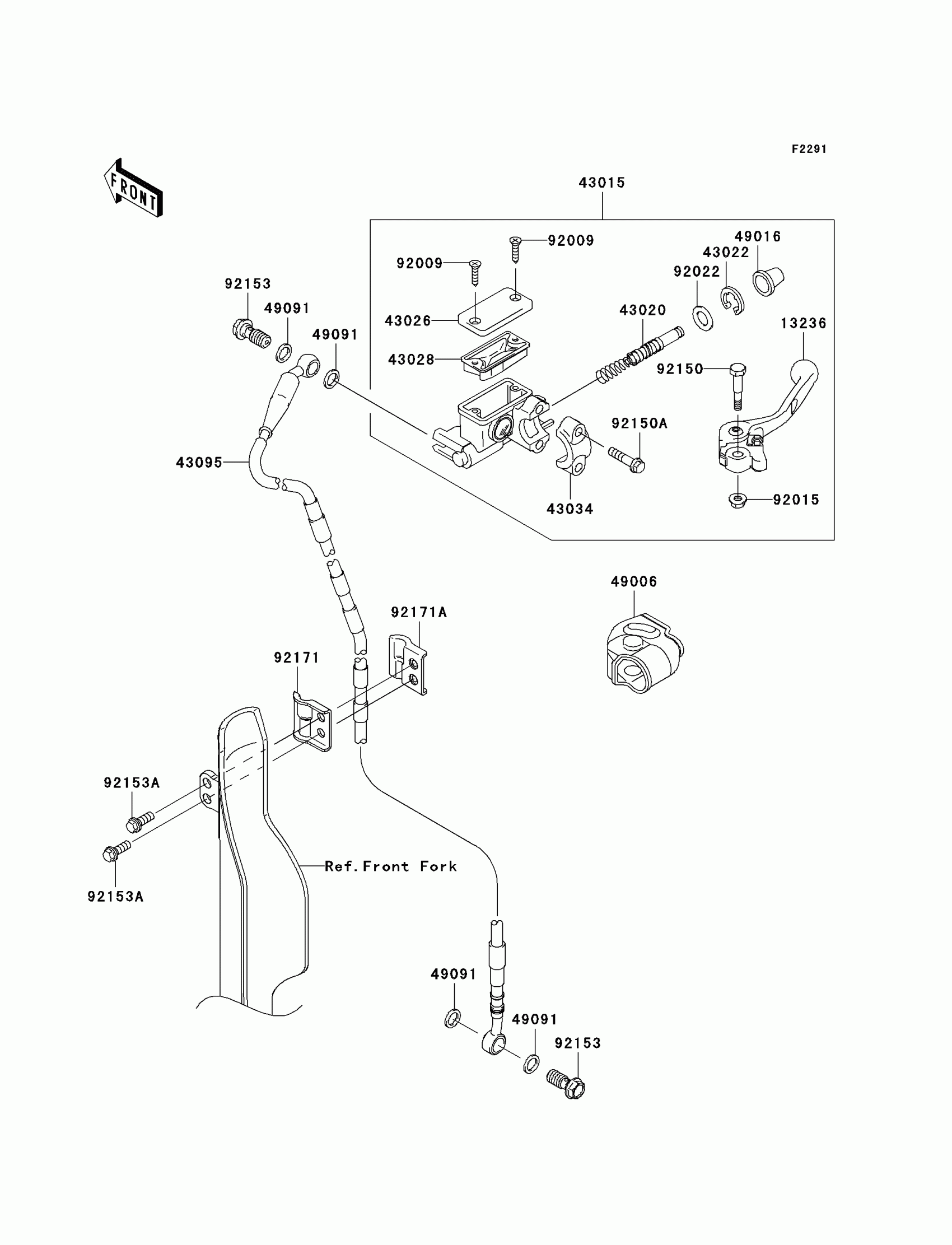

Find the part on the Front Master Cylinder diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

13236-1346

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1674

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1123

1
Out of stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1075

1

$12.97

In stock

43028

DIAPHRAGM

43028-1067

1

$14.71

In stock

43034

HOLDER-BRAKE

43034-1110

1

$15.29

In stock

43095

HOSE-BRAKE,FR

43095-0186

1

$147.64

In stock

49006

1

$11.97

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92022

WASHER

92022-1814

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1

$11.26

In stock

92150A

BOLT

92150-1452

1

$4.37

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,6X16

92153-0695

1
Out of stock

92171

CLAMP,BRAKE HOSE,LH

92171-0481

1
Out of stock

92171A

CLAMP,BRAKE HOSE,RH

92171-0482

1
Out of stock
