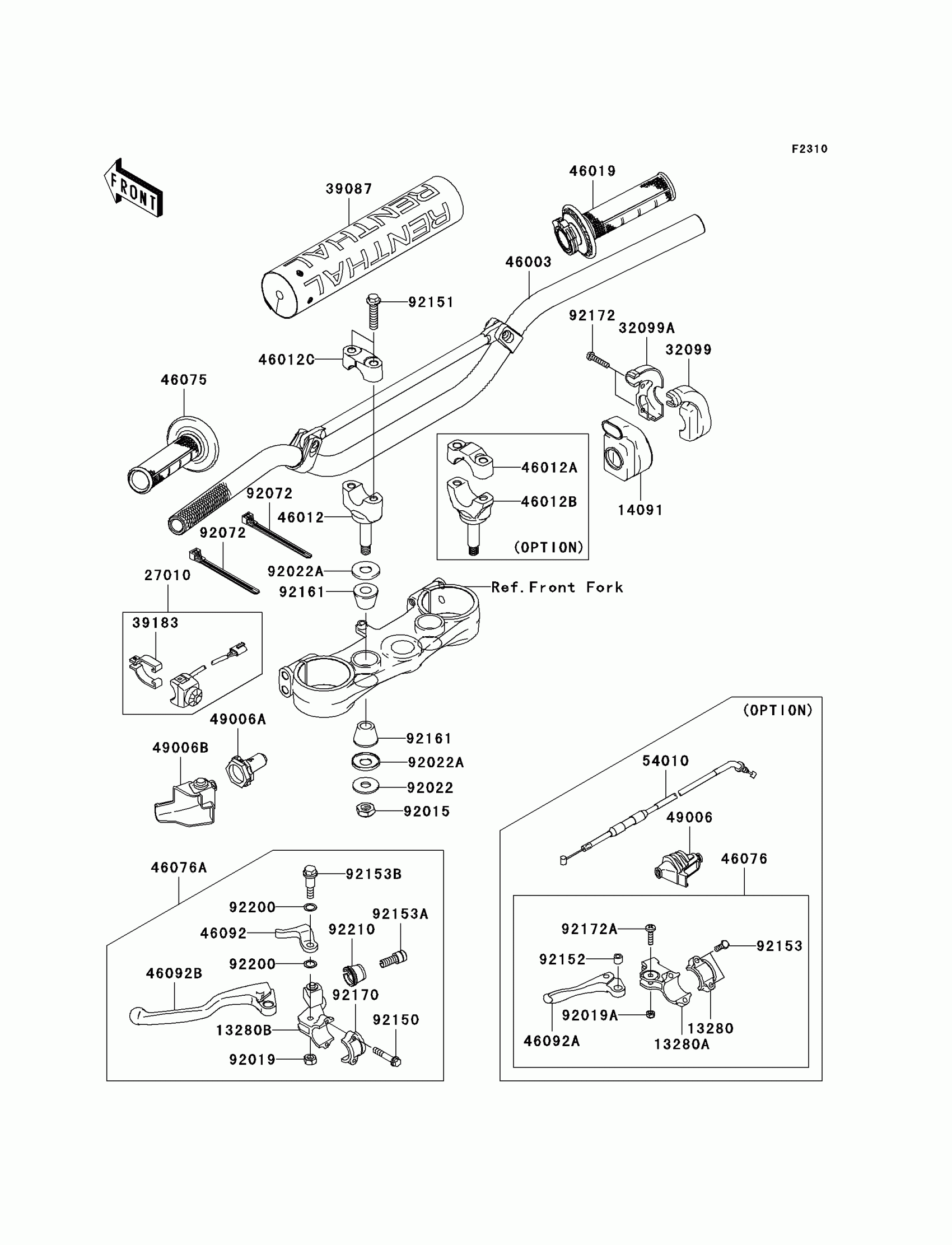

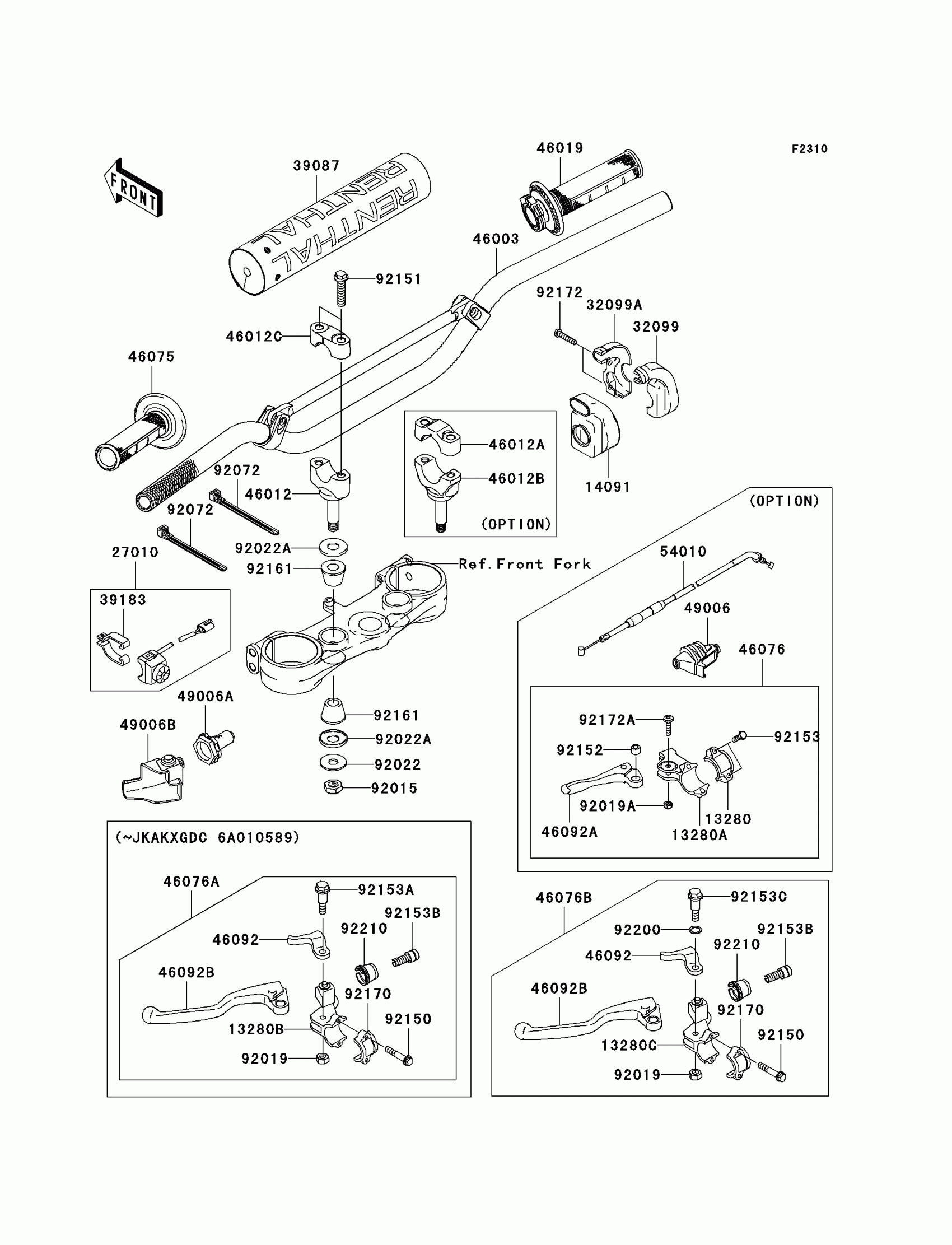

Kawasaki KX450F Handlebar Diagram
#
13280
HOLDER
13280-0055
$28.62
13280A
HOLDER
13280-0056
$59.56
13280B
HOLDER,CLUTCH LEVER
13280-0184
$65.70
14091
COVER,THROTTLE CASE
14091-0182
$10.06
27010
SWITCH,ENGINE STOP
27010-0047
$54.67
32099
CASE,THROTTLE,RR
32099-0002
$30.31
32099A
CASE,THROTTLE,FR
32099-0003
$30.31
39087
PAD-HANDLE
39087-0003
$74.54
39183
BAND-ASSY,SWITCH
39183-1059
$13.02
46003
HANDLE
46003-0077
$202.73
46012
HOLDER-HANDLE,LWR,M.M.GOLD
46012-0013-10Y
$46.93
46012A
HOLDER-HANDLE,UPP,FAT BAR,GOLD
46012-0020-10Y
$26.70
46012B
HOLDER-HANDLE,LWR,FAT BAR,GOLD
46012-0021-10Y
$46.93
46012C
HOLDER-HANDLE,UPP,M.M.GOLD
46012-0023-10Y
$26.70
46019
GRIP-ASSY,THROTTLE
46019-0017
$51.65
46075
GRIP,LH
46075-0044
$14.62
46076
LEVER-ASSY-GRIP,MANUAL DECOMP
46076-0009
$41.55
46076A
LEVER-ASSY-GRIP,CLUTCH&STARTER
46076-0035
$63.68
46092
LEVER-GRIP,STARTER
46092-0001
$6.28
46092A
LEVER-GRIP
46092-0004
$13.40
46092B
LEVER-GRIP,CLUTCH
46092-0016
$20.88
49006
BOOT
49006-0011
$15.62
49006A
BOOT,CLUTCH CABLE
49006-0027
$8.12
49006B
BOOT,CLUTCH LEVER
49006-0033
$15.80
54010
CABLE,MANUAL DECOMP
54010-0019
$46.21
92015
NUT,LOCK,10MM
92015-1962
$6.11
92019
NUT,LOCK,6MM
92019-008
$4.26
92019A
NUT,LOCK,5MM
92019-014
$4.50
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER
92022-1737
$5.52
92072
BAND,L=100
92072-0055
$3.90
92150
BOLT
92150-1474
$5.00
92151
BOLT,FLANGED,8X35
92151-1537
$2.67
92152
COLLAR
92152-0135
$2.82
92153
BOLT,5X16
92153-0617
$6.27
92153A
BOLT,BOLT ADJUSTING
92153-0773
$11.95
92153B
BOLT,6MM
92153-1506
$8.68
92161
DAMPER,HANDLE HOLDER
92161-0113
$5.29
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
92172
SCREW,5X20
92172-0069
$3.32
92172A
SCREW,5X20
92172-0125
$4.75
92200
WASHER
92200-0300
$3.90
92210
NUT,BOLT WIRE ADJUSTING
92210-0167
$31.86
