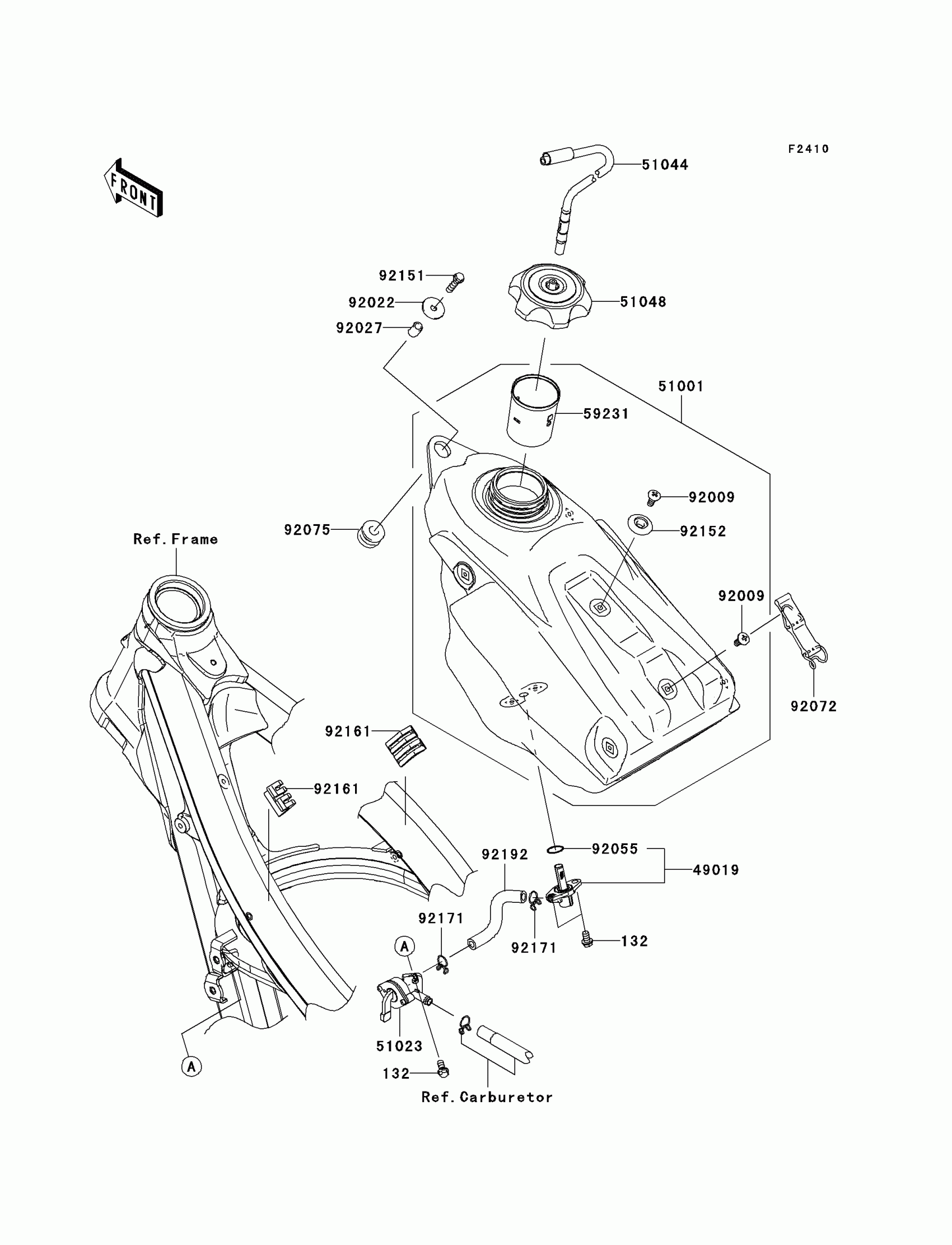

Find the part on the Fuel Tank diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132L0612

1
Out of stock

49019

FILTER-FUEL

49019-0002

1
Out of stock

51001

TANK-COMP-FUEL,F.BLACK

51001-0095-6Z

1

$583.38

In stock

51023

TAP-ASSY,FUEL

51023-0019

1
Out of stock

51044

TUBE-ASSY,TANK CAP

51044-0023

1

$20.86

In stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1

$53.60

In stock

59231

FILLER

59231-0019

1

$5.80

In stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X14

92027-1966

1

$4.42

In stock

92055

RING-O,FUEL TAP PACKING

92055-0078

1
Out of stock

92072

BAND,FUEL TANK

92072-0045

1

$11.52

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92151

1

$2.06

In stock

92152

COLLAR

92152-1346

1

$3.33

In stock

92161

1

$5.35

In stock

92171

CLAMP

92171-0149

1

$3.29

In stock

92192

TUBE,FUEL

92192-0223

1
Out of stock
