2006 Kawasaki KX450F Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

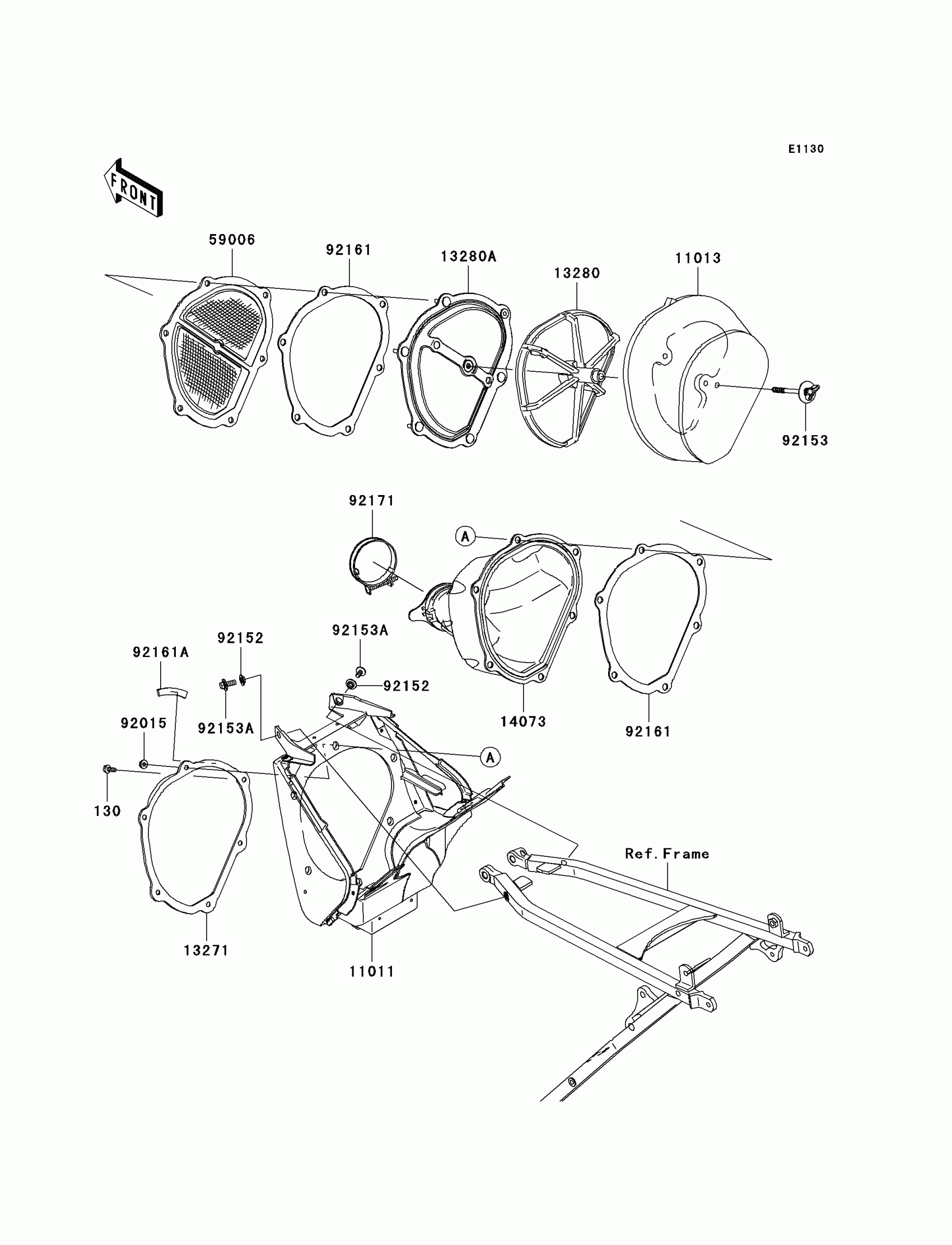

2006 Kawasaki KX450F Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

11011

CASE-AIR FILTER,F.BLACK

11011-0055-6Z

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0011

1

$56.72

In stock

13271

PLATE,DUCT FITTING

13271-0730

1
Out of stock

13280

HOLDER,ELEMENT

13280-0108

1
Out of stock

13280A

HOLDER

13280-0170

1

$62.58

In stock

14073

DUCT,AIR FILTER

14073-0085

1

$75.18

In stock

59006

ARRESTER-FLAME

59006-0009

1

$71.77

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92152

COLLAR

92152-0275

1

$2.42

In stock

92153

BOLT,6X75

92153-0623

1
Out of stock

92153A

BOLT,6X16

92153-0863

1
Out of stock

92161

DAMPER

92161-0213

1

$31.35

In stock

92161A

DAMPER

92161-0350

1

$5.86

In stock

92171

CLAMP,DUCT,62MM

92171-0651

1

$10.77

In stock
