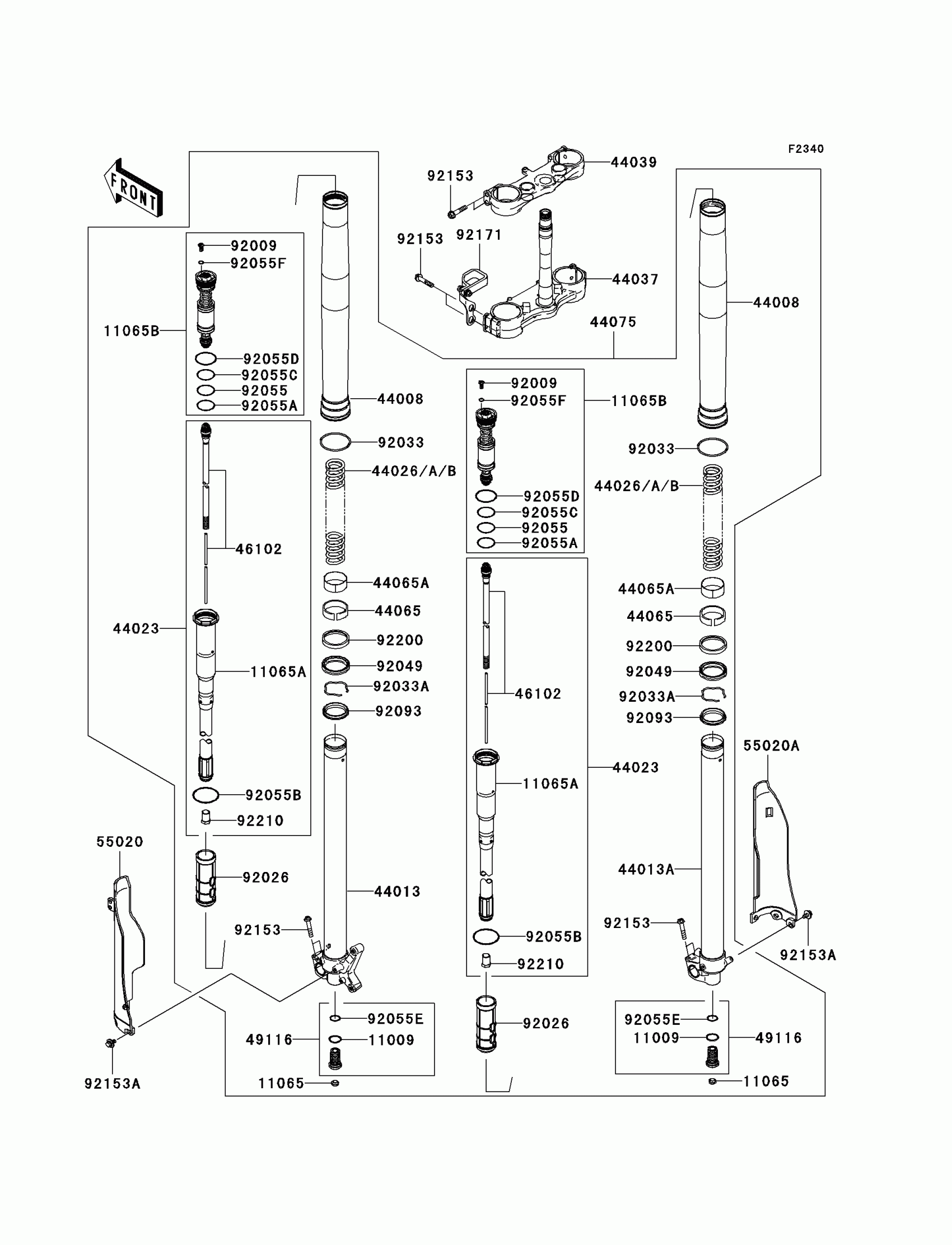

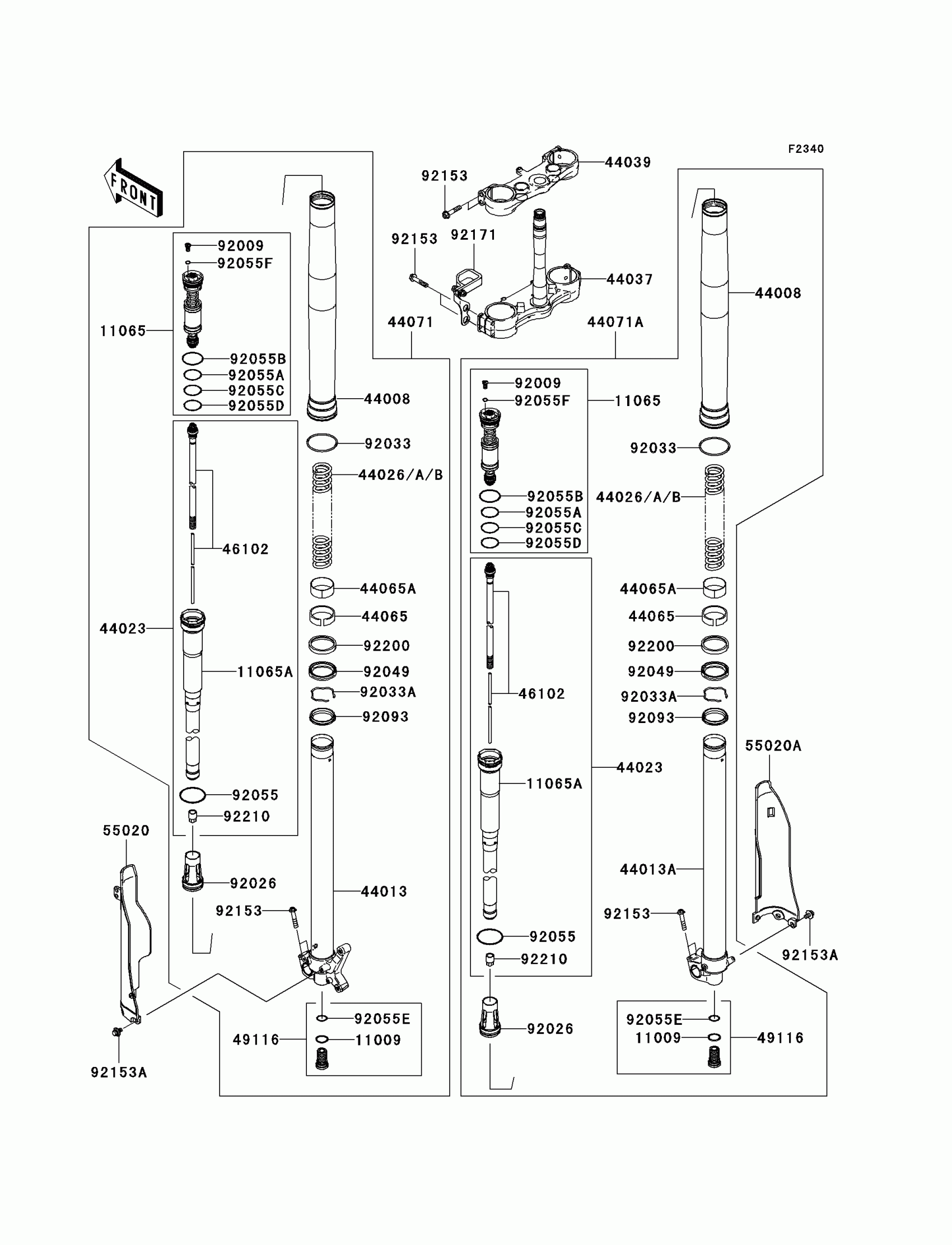

Kawasaki KX450F Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11065
CAP,BASE VALVE
11065-0162
$266.54
11065A
CAP,FORK,TOP,GOLD
11065-0163-10J
$249.14
44008
PIPE-FORK OUTER,GOLD
44008-0031-828
$621.76
44013
PIPE-FORK INNER,LH
44013-0086
$664.10
44013A
PIPE-FORK INNER,RH
44013-0087
$664.10
44023
CYLINDER-SET-FORK,GOLD
44023-0047-10J
$628.71
44026
SPRING-FRONT FORK,K=4.6N/MM
44026-0096
$98.84
44026A
SPRING-FRONT FORK,K=4.5N/MM
44026-0105
$98.84
44026B
SPRING-FRONT FORK,K=4.7N/MM
44026-0106
$98.84
44037
HOLDER-FORK UNDER,M.M.GOLD
44037-0033-10Y
Unavailable
44039
HOLDER-FORK UPPER,M.M.GOLD
44039-0035-10Y
$276.59
44065
BUSHING-FRONT FORK
44065-0006
$19.09
44065A
BUSHING-FRONT FORK
44065-1140
$21.13
44071
DAMPER-ASSY,FORK,LH
44071-5017
$1,764.91
44071A
DAMPER-ASSY,FORK,RH
44071-5018
$1,764.91
46102
ROD,PISTON
46102-0086
$449.65
49116
VALVE-ASSY
49116-0015
$197.51
55020
GUARD,FORK,LH,WHITE
55020-0172-RZ
$64.54
55020A
GUARD,FORK,RH,WHITE
55020-0334-RZ
$64.54
92009
SCREW
92009-1884
$7.71
92026
SPACER
92026-0097
$29.10
92033
RING-SNAP
92033-0049
$4.61
92033A
RING-SNAP
92033-1329
$6.89
92049
SEAL-OIL
92049-0070
$27.09
92055
RING-O
92055-0104
$5.65
92055A
RING-O
92055-0105
$5.65
92055B
RING-O
92055-0106
$5.65
92055C
RING-O
92055-0116
$5.65
92055D
RING-O
92055-0117
$5.65
92055E
RING-O
92055-1156
$1.42
92055F
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92093
SEAL,FORK OUTER TUBE
92093-1566
$20.74
92153
BOLT,FLANGED,8X40
92153-0484
$3.29
92153A
BOLT,FLANGED,6X14
92153-0936
$2.97
92171
CLAMP,HOSE
92171-0414
$22.76
92200
WASHER
92200-0067
$12.83
92210
NUT
92210-0337
$23.02
