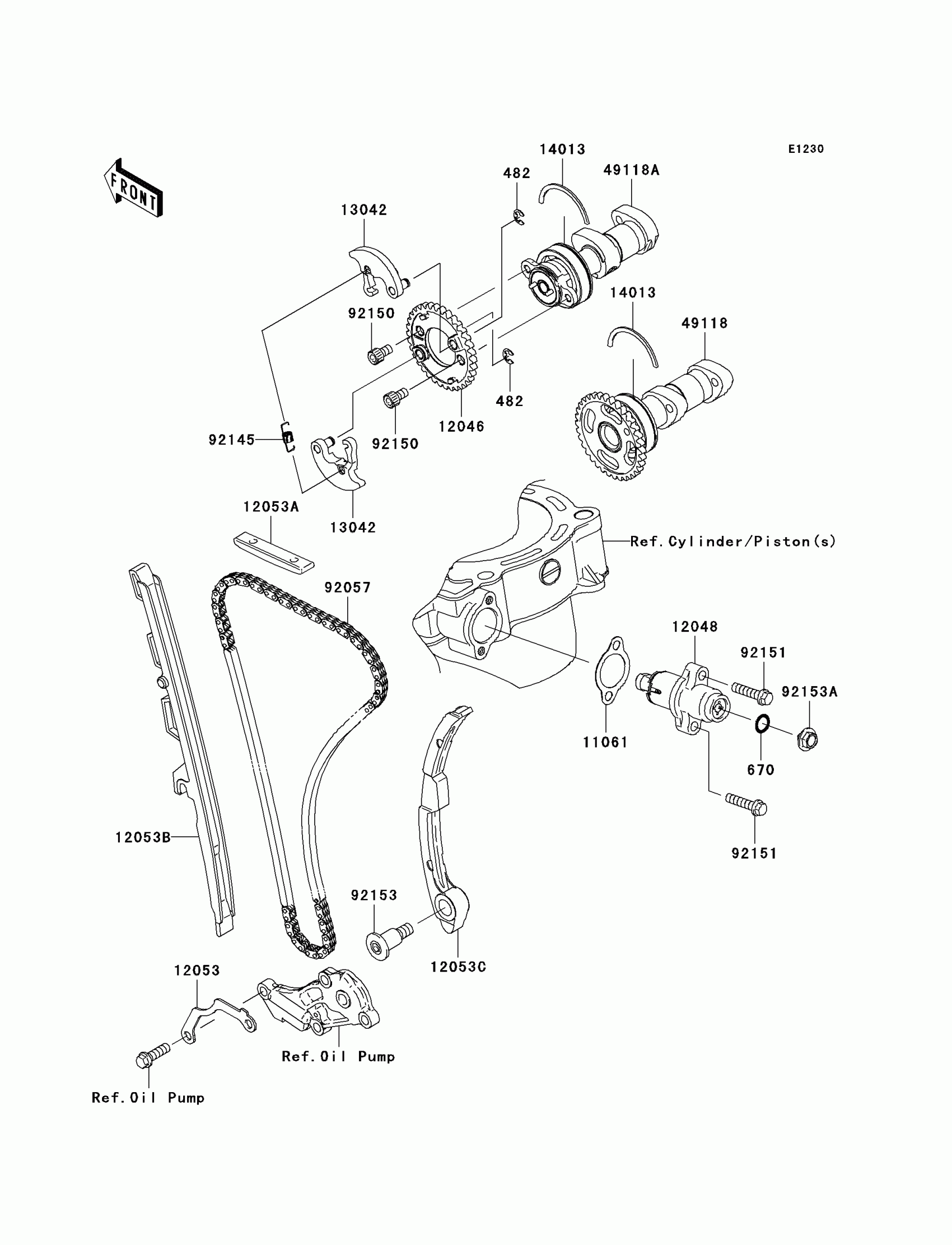

Kawasaki KX450F Camshaft(s)/Tensioner Diagram

Description

Price

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

670

O RING,10MM

670D2010

$1.94

11061

GASKET

11061-0211

$5.98

12046

SPROCKET,34T

12046-0043

$64.08

12048

TENSIONER-ASSY

12048-0021

$97.11

12053

GUIDE-CHAIN,CAM CHAIN STOPPER

12053-0031

$5.60

12053A

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053B

GUIDE-CHAIN,FR

12053-0064

$46.35

12053C

GUIDE-CHAIN,RR

12053-0065

$68.88

13042

WEIGHT

13042-0005

$37.85

14013

RING-POSITION

14013-0001

$5.54

49118

CAMSHAFT-COMP,INTAKE

49118-0087

$231.73

49118A

CAMSHAFT-COMP,EXHAUST

49118-0088

$302.42

92057

CHAIN,98XRH2010-124M

92057-0035

$55.05

92145

SPRING

92145-0390

$3.35

92150

BOLT,SOCKET,6X10

92150-1650

$4.31

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,8X29.5

92153-0717

$13.60

92153A

BOLT,6X6

92153-1380

$1.78
