Partiron

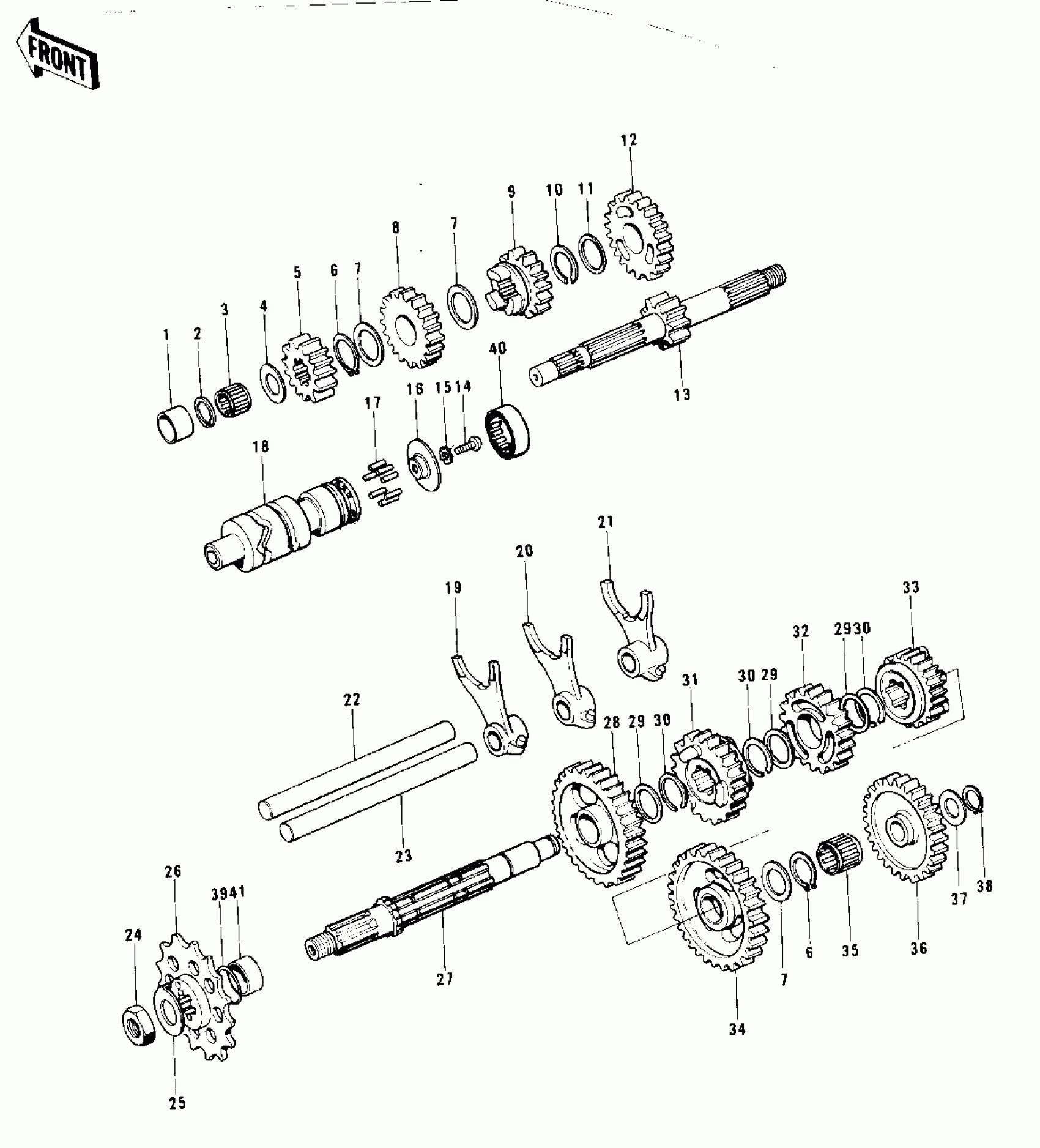

Kawasaki KX450 TRANSMISSION/CHANGE DRUM & FORKS ('74 KX Diagram

#

Description
Price

1

BUSHING,23X30X13

92028-132

$38.06

2

CIRCLIP 17MM

92033-009

Unavailable

3

BEARING,BALL,KT17231

92046-035

$12.33

4

WASHER,17.3X28X1

92022-255

$8.58

5

2ND GEAR,DRIVE SHAFT

13130-035

Unavailable

6

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

7

WASHER,20.5X25.5X0.5

92022-252

$6.22

8

4TH GEAR,DRIVE SHAFT

13134-019

Unavailable

9

3RD GEAR,DRIVE SHAFT

13132-034

Unavailable

10

CIRCLIP

92033-027

$4.94

11

WASHER

92022-254

$3.25

12

TOP GEAR,DRIVE SHAFT

13136-045

Unavailable

13

SHAFT,DRIVE

13127-044

Unavailable

14

SCREW-PAN-CROS,6X14

220B0614

$1.48

15

WASHER LOCK 6MM

464H0600

Unavailable

16

HOLDER,CHANGE DRUM PIN

13142-014

$20.79

17

PIN,DOWEL,4X16.8

92042-029

$5.71

18

DRUM,GEAR CHANGE

13141-042

Unavailable

19

FORK,SELECTOR

13140-055

Unavailable

20

FORK,SELECTOR

13140-056

Unavailable

21

FORK,SELECTOR

13140-057

Unavailable

22

ROD,CLUTCH RELEASE

13209-012

Unavailable

23

ROD,SHIFT

13209-013

Unavailable

24

NUT,18MM

92015-019

$7.22

25

WASHER,LOCK,18MM

92024-067

Unavailable

26

ENGINE SPROCKET 15T

13144-050

Unavailable

26

ENGINE SPROCKET 14T

13144-051

Unavailable

27

SHAFT,OUTPUT

13128-039

Unavailable

28

2ND GEAR,OUTPUT SHAF

13131-042

Unavailable

29

WASHER

92022-253

$4.55

30

RING-SNAP,24MM

92033-026

$8.79

31

4TH GEAR,OUTPUT SHAF

13135-023

Unavailable

32

3RD GEAR,OUTPUT SHAFT

13133-034

Unavailable

33

TOP GEAR,OUTPUT SHAF

13137-028

Unavailable

34

LOW GEAR,OUTPUT SHAF

13129-049

Unavailable

35

BEARING-NEEDLE,KT202614

92046-1170

$18.16

36

IDLE GEAR

13073-010

Unavailable

37

WASHER-THRUST

92022-197

Unavailable

38

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

39

RING-O

92055-035

$5.00

40

BEARING,NEEDLE,344012

92046-040

Unavailable

41

COLLAR-ENG SPROKET

92027-163

Unavailable
