Description

Price

1

ARM,SWINGING

33001-069

$153.91

2

SHAFT,SWING ARM PIVOT

33032-042

$67.70

3

BUSHING,SWING ARM

33033-012

Unavailable

4

ADJUSTER,CHAIN

33040-055

$30.45

5

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

6

NUT-HEX,8MM

311G0800

Unavailable

7

NUT,8MM

92019-018

Unavailable

8

GUARD,CHAIN

55020-015

Unavailable

9

BOLT,HEX HEAD,6X50

110G0650

$3.00

10

WASHER,6.5X20X1.6

92022-125

$1.40

11

NUT,6MM

92019-019

Unavailable

12

SHOCK ABSBR RR

45014-087

$302.02

13

WASHER,10.5X26X2.3

92022-044

$3.92

14

NUT,10MM

92019-016

Unavailable

15

BOLT,HEX HEAD,12X35

92001-133

Unavailable

16

TORQUE LINK,RR BRAKE

43007-040

$9.39

17

PIN,TORQUE LINK

92043-105

$12.41

18

WASHER,10.5X20X1

92022-239

$3.92

19

PIN-COTTER,2.0X20

550D2020

$0.96

20

NUT,10MM

92019-016

Unavailable

21

NUT,12MM

92019-017

Unavailable

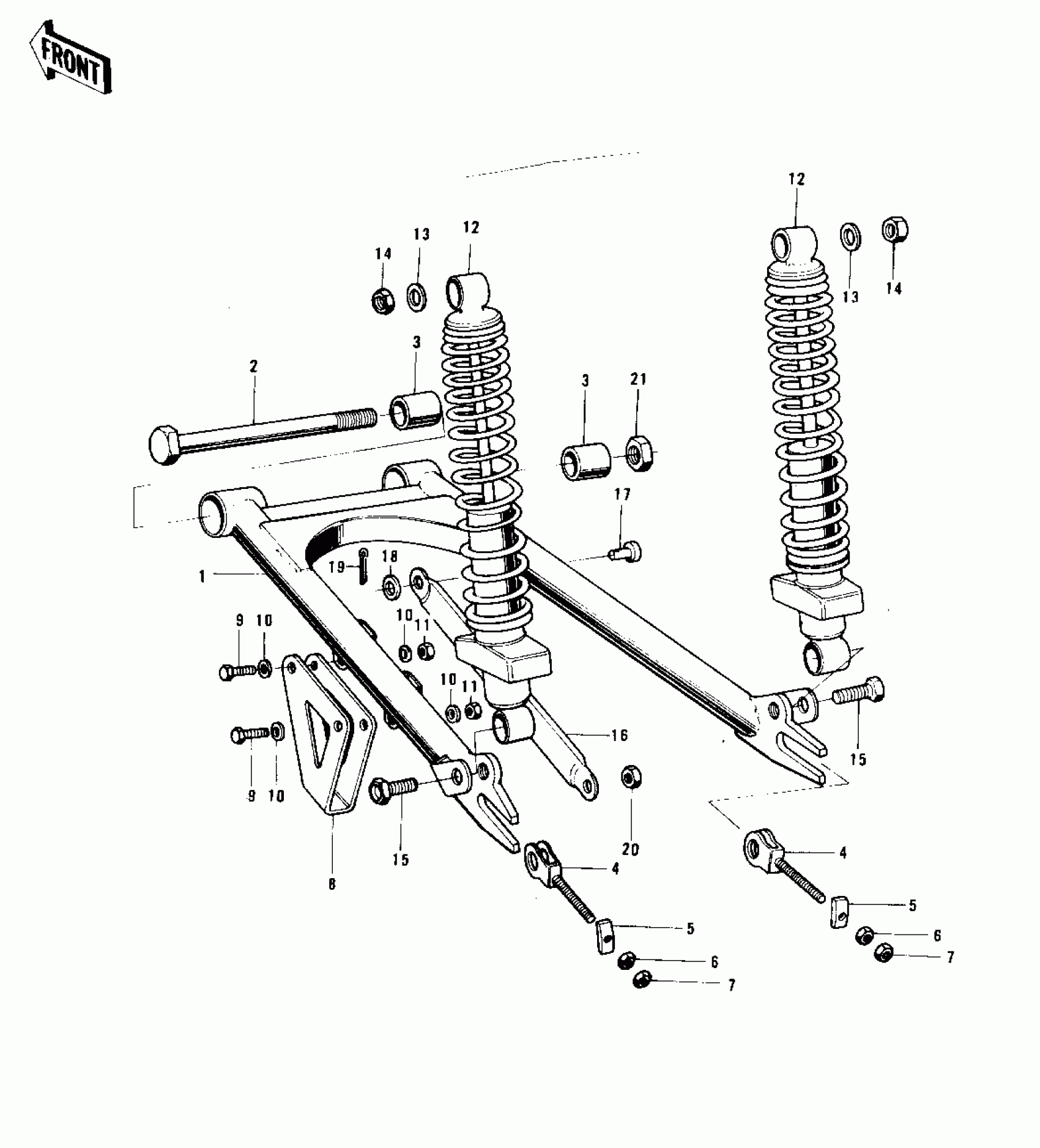

Kawasaki KX450 SWING ARM/SHOCK ABSORBERS ('74 KX 450) Diagram

ARM,SWINGING

SHAFT,SWING ARM PIVOT

BUSHING,SWING ARM

ADJUSTER,CHAIN

PLATE,CHAIN ADJUSTER

NUT-HEX,8MM

NUT,8MM

GUARD,CHAIN

BOLT,HEX HEAD,6X50

WASHER,6.5X20X1.6

NUT,6MM

SHOCK ABSBR RR

WASHER,10.5X26X2.3

NUT,10MM

BOLT,HEX HEAD,12X35

TORQUE LINK,RR BRAKE

PIN,TORQUE LINK

WASHER,10.5X20X1

PIN-COTTER,2.0X20

NUT,10MM

NUT,12MM
