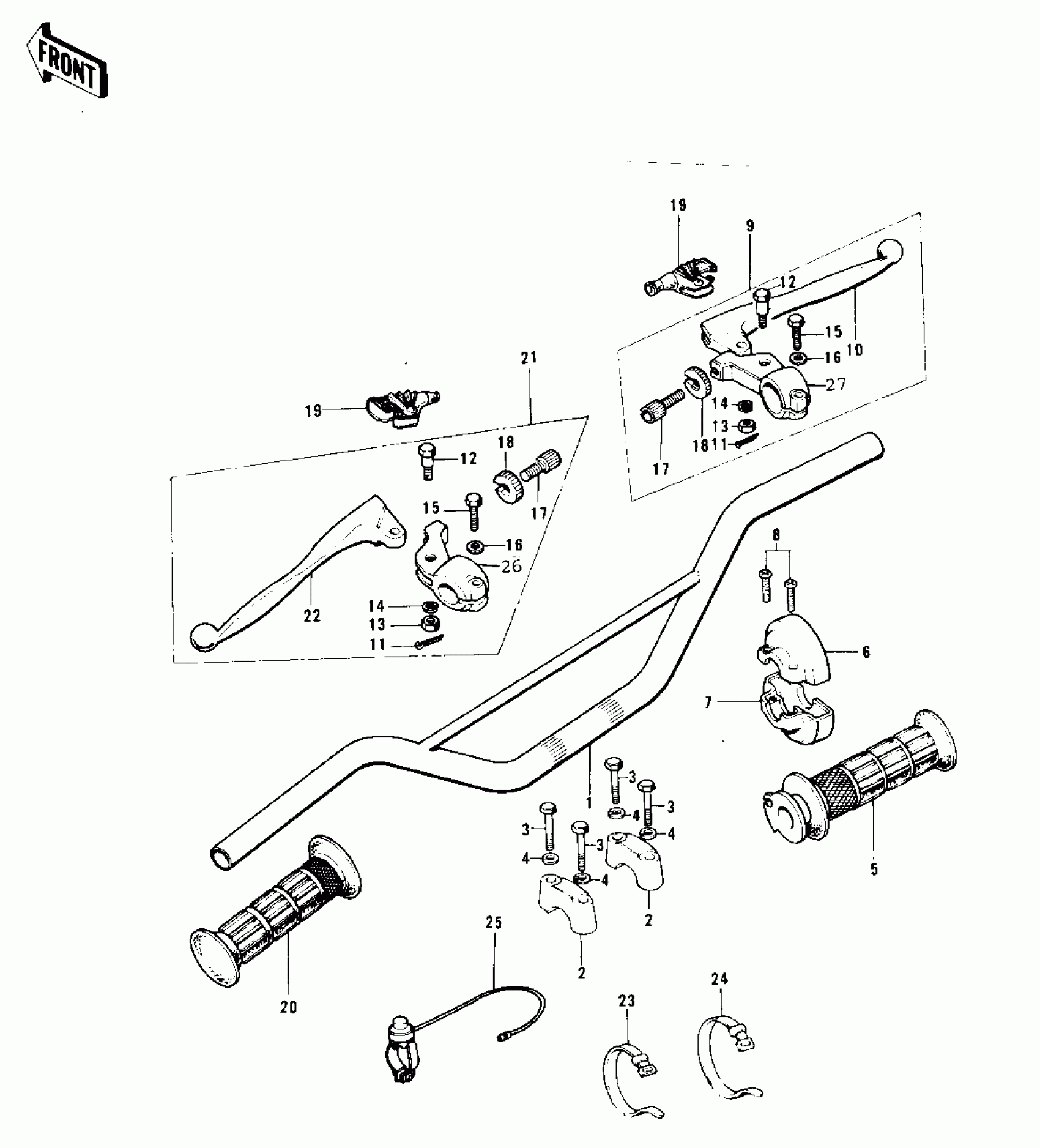

Kawasaki KX450 HANDLEBAR ('74 KX 450) Diagram
#
Description
Price
1
HANDLEBAR
46004-028
$95.38
2
HOLDER-HANDLE,UPP
46012-004
Unavailable
3
BOLT 8X38
92001-1405
$16.50
4
WASHER SPRING 8MM
461F0800
$0.40
5
GRIP ASSY,THROTTLE
46019-032
$56.68
6
CASE,R.H UPPER
46041-024
$15.01
7
CASE,R.H LOWER
46023-020
$31.54
8
SCREW-PAN-CROS
220B0520
$0.68
9
LEVER ASSY,FRNT BRAKE
46021-024
Unavailable
10
LEVER,FRONT BRAKE
46058-017
Unavailable
11
PIN-COTTER,1.6X15
550D1615
$2.51
12
BOLT,HEX HEAD,6MM
92001-140
Unavailable
13
NUT CASTLE
320B0600
$3.20
14
WASHER SPRING 6MM
461F0600
$0.69
15
BOLT,6X22
110N0622
$3.23
16
WASHER PLAIN 6MM
411B0600
$2.84
17
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
18
NUT,CABLE ADJUST
46056-006
$8.94
19
BOOT,LEVER HOLDER
49006-1017
$18.72
20
RUBBER,L.H GRIP
46075-025
Unavailable
21
LEVER ASSY,CLUTCH
46076-037
Unavailable
22
LEVER,CLUTCH
46092-020
Unavailable
23
BAND,L=123
92072-030
$5.00
24
BAND,L=149
92072-031
$5.00
25
SWITCH,ENGINE STOP
46027-012
Unavailable
26
HOLDER,CLUTCH LEVER
46094-014
$81.89
27
HOLDER,FR BRAKE LEVER
46060-010
$62.28
