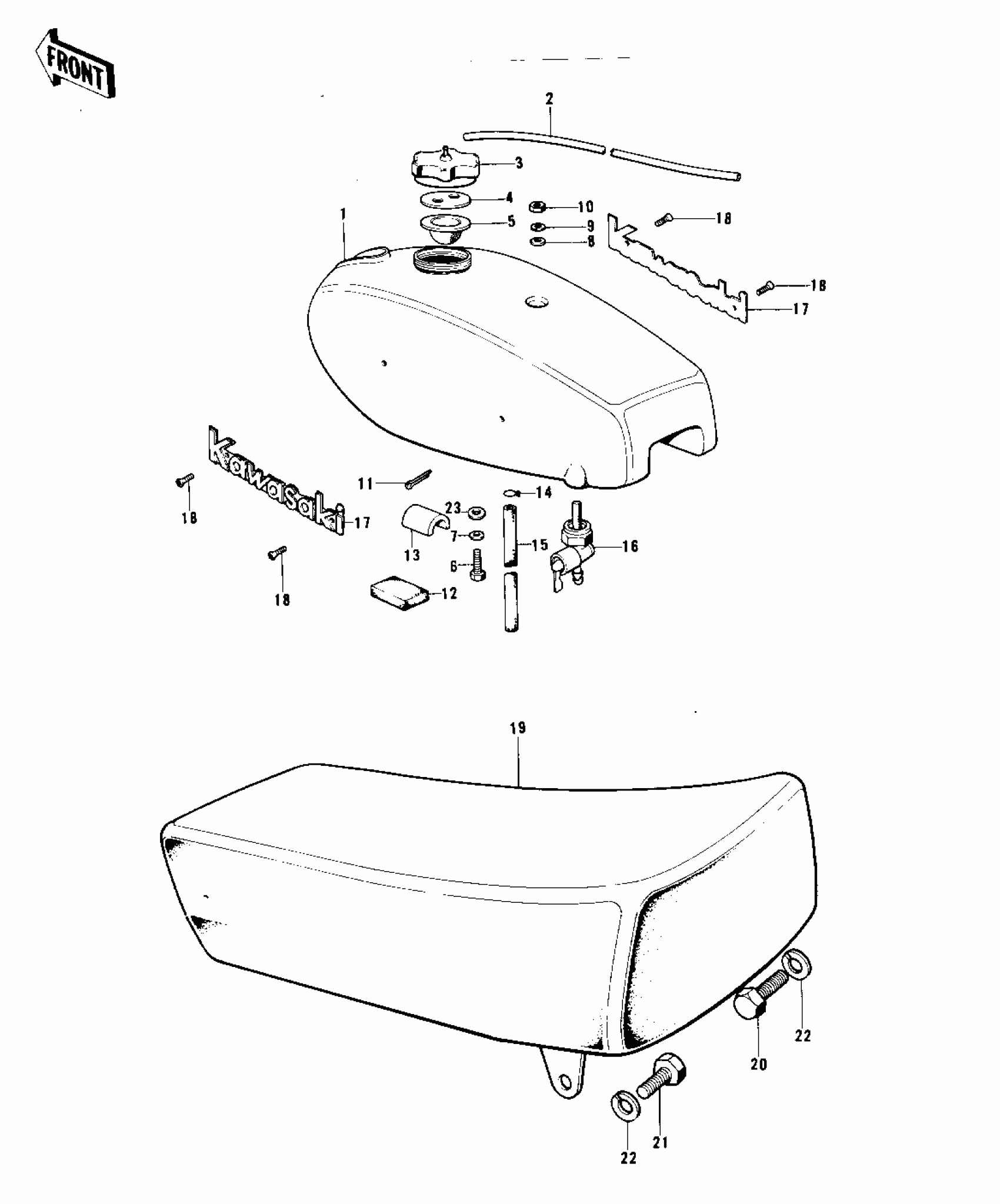

Kawasaki KX450 FUEL TANK/SEAT ('74 KX 450) Diagram

#

Description
Price

1

TANK-FUEL,

51001-097

$252.22

2

TUBE-PVC,5X280

700Q05280

Unavailable

3

CAP,FUEL TANK

51049-1002

$14.80

4

WASHER,FUEL TANK CAP

51058-004

$7.13

5

GASKET,FUEL TANK CAP

51059-012

$7.39

6

BOLT,FUEL TANK FITT

92003-149

$20.13

7

DAMPER

92075-203

$7.97

8

DAMPER,FENDER

92075-121

$4.56

9

WASHER,10.5X26X2.3

92022-044

$3.92

10

NUT,10MM

92019-016

Unavailable

11

PIN,COTTER,2.5X40

550D2540

$1.88

12

MAT BATTERY

32103-006

Unavailable

13

MAT FUEL TANK

51067-002

Unavailable

14

CLAMP,TUBE

92037-072

$7.22

15

HOSE,FUEL

92059-144

$97.88

16

FUEL COCK ASSY

51023-033

$67.46

17

EMBLEM,FUEL TANK

56013-055

Unavailable

18

SCREW CNTSNK HD 3X6

221B0306A

$0.74

19

SEAT ASSY

53001-085

Unavailable

20

BOLT,HEX HEAD,10MM

92003-166

$13.21

21

BOLT-UPSET,10X20

112B1020

Unavailable

22

WASHER SPRING 10MM

461F1000

$0.67

23

WASHER,PLAIN,10MM

92022-301

$0.97
