Description

Price

1

DRUM-ASSY,FR BRK

41034-036

$197.63

2

COLLAR

41039-023

$20.38

3

OIL SEAL,TB18376

654A18376

Unavailable

4

BEARING,BALL, #6201

92045-029

Unavailable

5

PANEL-ASY,FR BRK BLK

41035-063-21

$244.47

6

SHOE,BRAKE

42019-010

$38.07

7

SPRING,BRAKE SHOE

92081-1766

$8.03

8

SPRING,BRAKE SHOE

92081-1550

$9.49

9

CAM SHAFT,FRONT BRAKE

41050-020

$20.38

10

WASHER

92022-257

Unavailable

11

O RING,12MM

670B2012

$3.23

12

BOLT 6X22

112B0622

$3.48

12

BOLT 6X22

112B0622

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

14

LEVER,FRONT BRAKE CAM

41053-021

$51.87

15

AXLE,FRONT

41068-044

Unavailable

16

COLLAR,FRONT AXLE

41069-023

$9.29

17

NUT,FRONT AXLE

41072-008

Unavailable

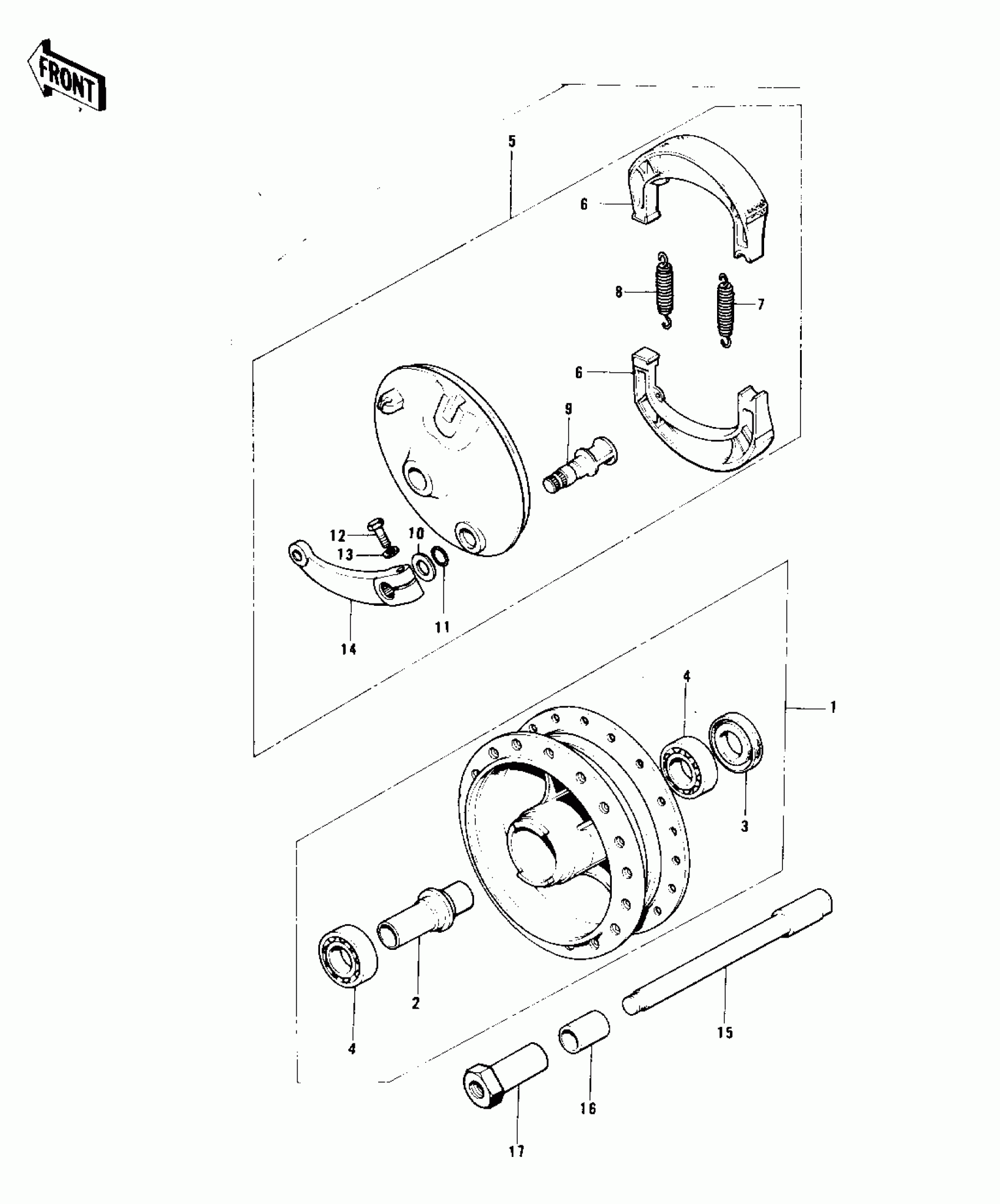

Kawasaki KX450 FRONT HUB/BRAKE ('74 KX 450) Diagram

DRUM-ASSY,FR BRK

COLLAR

OIL SEAL,TB18376

BEARING,BALL, #6201

PANEL-ASY,FR BRK BLK

SHOE,BRAKE

SPRING,BRAKE SHOE

SPRING,BRAKE SHOE

CAM SHAFT,FRONT BRAKE

WASHER

O RING,12MM

BOLT 6X22

BOLT 6X22

WASHER-PLAIN-SMALL,6MM

LEVER,FRONT BRAKE CAM

AXLE,FRONT

COLLAR,FRONT AXLE

NUT,FRONT AXLE
