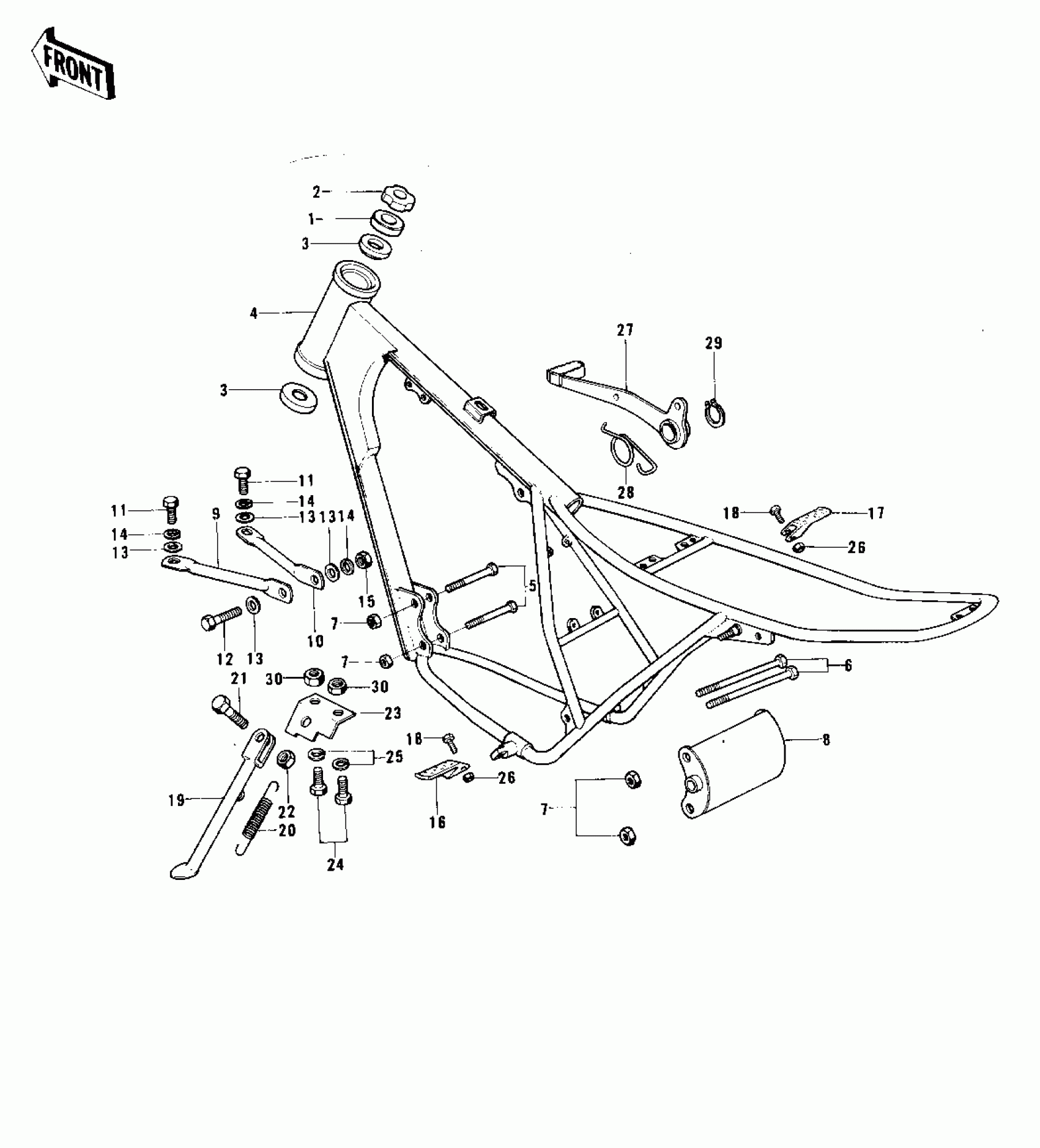

Kawasaki KX450 FRAME/FRAME FITTINGS ('74 KX 450) Diagram

#

Description
Price

1

CAP,STEERING STEM

46098-014

Unavailable

2

NUT,25MM,T=12

92015-1546

$19.66

3

BEARING,STREERIN STEM

92047-016

$15.36

4

FRAME

32002-067

$729.45

5

BOLT,HEX HEAD,10X65

92001-1255

Unavailable

6

BOLT

92003-133

Unavailable

7

NUT,10MM

92019-016

Unavailable

8

PLATE,ENGINE BASE

32117-006

$21.98

9

BRACKET,L.H ENGINE

32030-035

Unavailable

10

BRACKET,R.H ENGINE

32030-036

Unavailable

11

BOLT-UPSET,10X20

112B1020

Unavailable

12

BOLT,HEX HEAD,10X25

113G1025

Unavailable

13

WASHER-PLAIN,10MM

411B1000

Unavailable

14

WASHER SPRING 10MM

461F1000

Unavailable

15

NUT-HEX-FINE,10MM

314B1000

Unavailable

16

BAR,L.H FOOTREST

34028-021

$28.25

17

BAR,R.H FOOTREST

34028-022

$19.17

18

BOLT,FLANGED,8X35

92001-1577

Unavailable

19

STAND-SIDE

34024-045

Unavailable

20

SPRING-SIDE STAND

34025-004

Unavailable

21

BOLT,HEX HEAD,10X25

113G1025

Unavailable

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

BRACKET,SIDE STAND

34008-009

Unavailable

24

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

25

WASHER SPRING 8MM

461F0800

Unavailable

26

NUT,8MM

92019-018

Unavailable

27

PEDAL,BRAKE

43001-061

$32.49

28

SPRING,BRAKE PEDAL

43005-028

$4.58

29

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

30

NUT 8MM

312B0800

Unavailable
