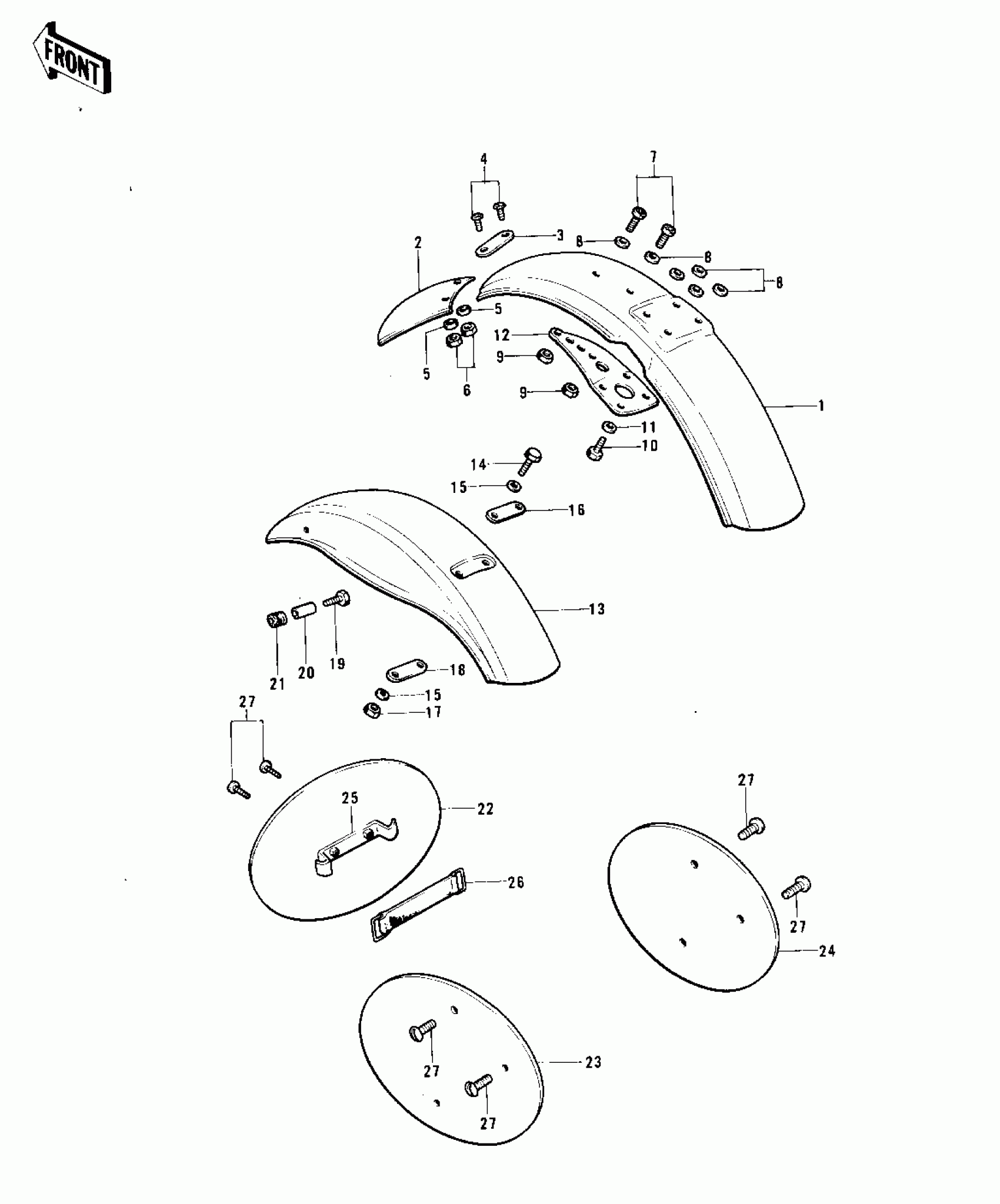

Kawasaki KX450 FENDERS/NUMBER PLATES ('74 KX 450) Diagram
#
Description
Price
1
FENDER-FR
35004-096
Unavailable
2
FLAP,FRONT FENDER
35019-005
Unavailable
3
PLATE,FENDER FLAP
35020-012
Unavailable
4
BOLT,5X12
92001-134
Unavailable
5
WASHER SPRING 5MM
461F0500
$0.69
6
NUT-HEX
311B0500
$0.47
7
SCREW PAN HEAD 6X14
220E0614
$3.19
8
WASHER,6.5X20X1.6
92022-125
$1.40
9
NUT,6MM
92019-019
Unavailable
10
BOLT-UPSET,6X16
112G0616
$1.10
11
WASHER SPRING 6MM
461F0600
$0.69
12
BRACKET,FRONT FENDER
35013-013
Unavailable
13
FENDER-RR
35022-110
Unavailable
14
BOLT-UPSET,6X16
112G0616
$1.10
15
WASHER PLAIN 6MM
411B0600
$2.84
16
DAMPER-RUBBER
92075-072
$1.39
17
NUT,6MM
92019-019
Unavailable
18
BRACKET,REAR FENDER
35026-008
$6.07
19
BOLT 6X22
112B0622
$3.48
20
COLLAR
92027-194
$5.52
21
DAMPER RUBBER
92075-208
$5.00
22
PLATE,FRONT NUMBER
58029-026
Unavailable
23
PLATE,NUMBER
58029-019
Unavailable
24
PLATE,REAR NUMBER,R.
58029-032
$27.00
25
BRACKET,NUMBER PLATE
58030-008
$20.43
26
BAND,L=142.1
92072-006
$12.76
27
SCREW,6X10,WHITE
92009-1286
$4.31
