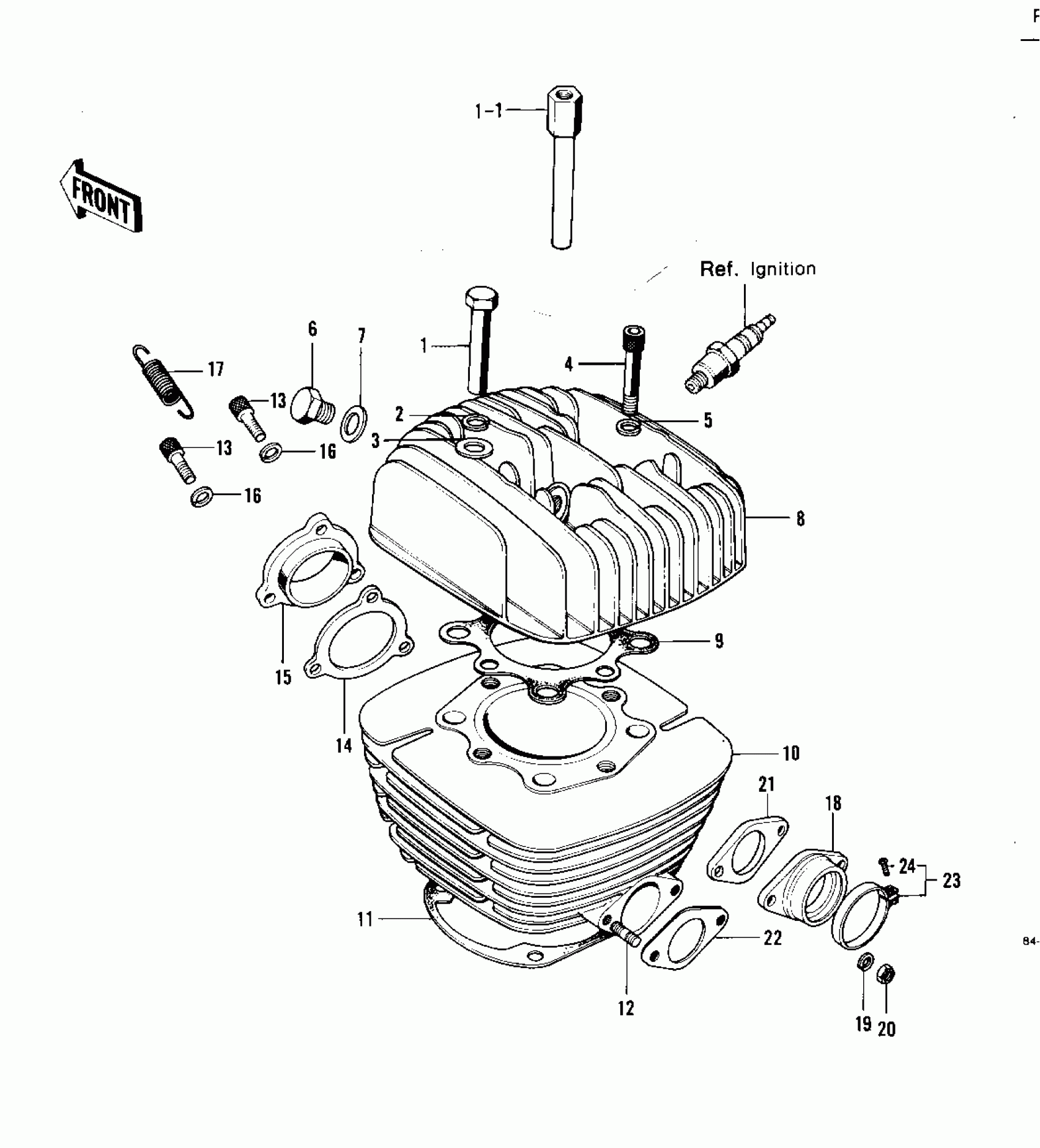

Kawasaki KX450 CYLINDER HEAD/CYLINDER ('74 KX 450) Diagram
#
Description
Price
1
NUT 10MM
92015-022
$24.16
1-1
NUT,CYLINDER HEAD
92015-073
$14.36
2
WASHER SPRING 14MM
461F1400
Unavailable
3
WASHER-PLAIN-SMALL,14MM
410B1400
$2.01
4
BOLT,8X50
120P0850
$4.89
5
WASHER SPRING 8MM
461F0800
$0.40
5
WASHER SPRING 8MM
461F0800
$0.40
6
PLUG-CYLINDER HEAD
92067-005
Unavailable
7
GASKET-CYL HEAD PLUG
92065-068
Unavailable
8
CYLINDER HEAD
11001-082
Unavailable
9
GASKET,CYLINDER HEAD
11004-059
Unavailable
10
CYLINDER
11005-102
Unavailable
11
GASKET,CYLINDER BASE
11009-035
Unavailable
12
BOLT-STUD,8X20
172G0820
$2.12
13
BOLT-SOCKET,6X20
120P0620
$1.74
14
GASKET,EXHAUST PIPE
18050-005
Unavailable
15
HOLDER,EXHAUST PIPE
18062-007
$73.67
16
WASHER SPRING 6MM
461F0600
$0.69
17
SPRING,MUFFLER CONEC
18071-007
Unavailable
18
HOLDER,CARBURETOR
16065-021
Unavailable
19
WASHER SPRING 8MM
461F0800
$0.40
19
WASHER SPRING 8MM
461F0800
$0.40
20
NUT-HEX-SMALL,8MM
318B0800
$0.59
21
INSULATOR,HEAT
16061-015
Unavailable
22
GASKET,AIR INLET
16062-017
Unavailable
23
CLAMP,CARBURETOR HLDR
92037-116
$14.66
24
SCREW-PAN-CROS
220B0535
$3.70
