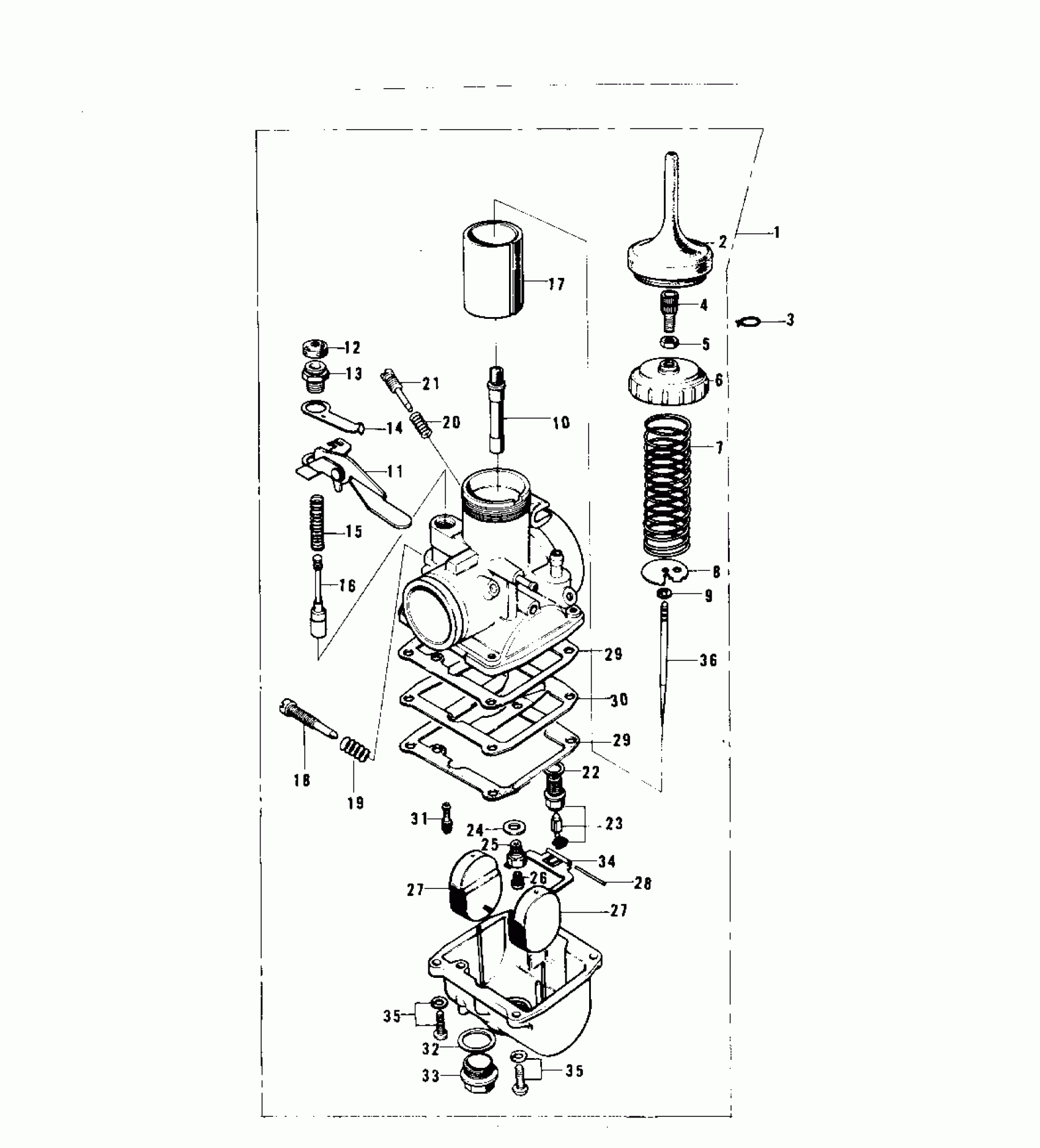

Kawasaki KX450 CARBURETOR ('74 KX 450) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-218

$212.59

2

CAP,CABLE ADJUSTER

16036-011

Unavailable

3

RING-SNAP

92036-018

$3.89

4

ADJUSTER,CABLE

16002-014

Unavailable

5

NUT,ADJUST LOCK

16003-006

$7.34

6

CAP-MIXING CHAMBER

16004-022

$10.22

7

SPRING-THROTTLE VALV

16006-016

Unavailable

8

SEAT-SPRING-CARB

16007-022

Unavailable

9

CLAMP,E-TYPE

16008-010

$9.21

10

NEEDLE JET

16017-069

$22.17

11

LEVER,STARTER PLUNGER

16063-004

$31.60

12

BOOT,STARTER PLUNGER

16036-012

$11.46

13

CAP,PLUNGER

16012-016

Unavailable

14

SPRING,STATER LEVER

16013-009

$6.00

15

SPRING,STARTER PLUG

16013-008

Unavailable

16

PLUNGER

16016-011

$42.89

17

VALVE,THROTTLE

16025-059

$35.61

18

SCREW,THROTTLE ADJUST

16021-022

Unavailable

19

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

20

SPRING,PILOT AIR SCREW

16022-007

$8.13

21

SCREW

16014-006

$17.15

22

WASHER FLOAT VLV SEAT

16029-004

$3.89

23

FLOAT VALVE ASSY

16030-020

$82.44

24

WASHER,MAIN JET

16034-001

$4.31

25

HOLDER,MAIN JET

16065-025

Unavailable

26

MAIN JET NO 130R

92063-057

$14.10

27

FLOAT

16031-1062

Unavailable

28

PIN,FLOAT

16032-003

$6.57

29

GASKET

16019-022

$5.80

30

PLATE

16038-010

$31.78

31

JET-PILOT NO 40

92064-024

$22.86

32

WASHER-MAIN JET COVER

16034-003

Unavailable

33

COVER,MAIN SET

16049-004

$22.29

34

ARM,FLOAT

16055-004

Unavailable

35

SCREW FLOAT CHAMBER

16033-011

Unavailable

36

JET NEEDLE

16009-060

$30.03
