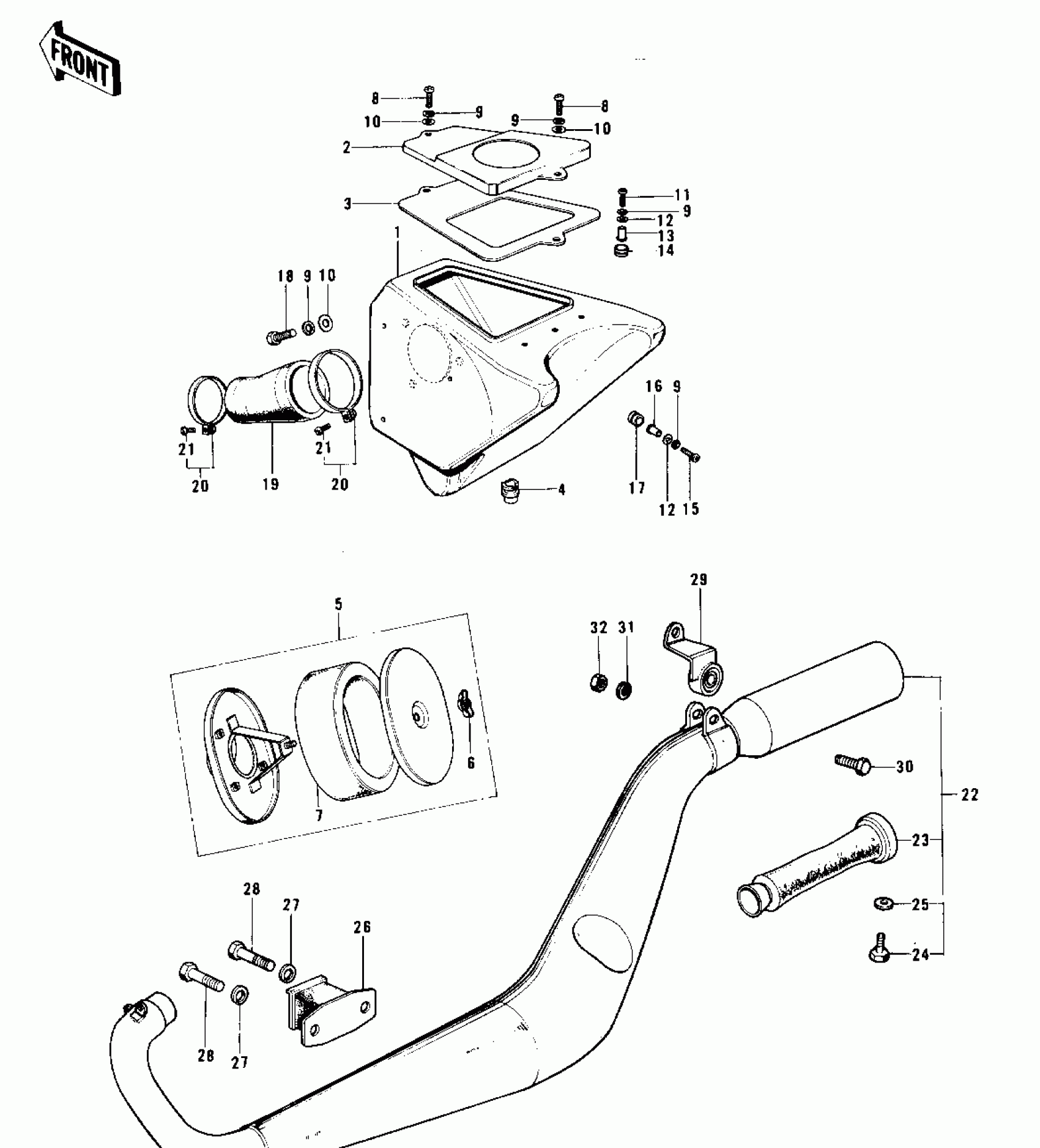

Kawasaki KX450 AIR CLEANER/MUFFLER ('74 KX 450) Diagram
#
Description
Price
1
BODY,AIR CLEANER
11011-040
Unavailable
2
CAP,AIR CLEANER BODY
11012-047
Unavailable
3
GASKET,CLEANER BODY
11017-011
Unavailable
4
PLUG,AIR CLEANER BOD
92067-020
$6.07
5
AIR CLEANER ASSY
11010-070
Unavailable
6
NUT,6MM
92019-019
Unavailable
7
ELEMENT,AIR,CLNR
11013-041
Unavailable
8
SCREW PAN HEAD 6X30
220B0630
$3.41
9
WASHER SPRING 6MM
461F0600
$0.69
10
WASHER PLAIN 6MM
411B0600
$2.84
11
SCREW PAN HEAD 6X25
220B0625
$2.60
12
WASHER,6.5X20X1.6
92022-125
$1.40
13
COLLAR
92027-195
$6.57
14
DAMPER RUBBER
92075-207
Unavailable
15
SCREW PAN HEAD 6X35
220B0635
$1.63
16
COLLAR
92027-194
$5.52
17
DAMPER RUBBER
92075-208
$5.00
18
SCREW PAN HEAD 6X12
220B0612
Unavailable
19
CONNECTOR
11026-008
Unavailable
20
CLAMP
92037-115
$11.06
21
SCREW PAN HEAD 6X35
220B0635
$1.63
22
MUFFLER ASSY
18002-131
$205.04
23
BAFFLE TUBE
18033-074
$72.95
24
BOLT-UPSET,6X12
112G0612
$1.45
25
WASHER LOCK 6MM
92024-016
Unavailable
26
DAMPER RUBBER,MUFFLE
92075-244
Unavailable
27
WASHER SPRING 8MM
461F0800
$0.40
28
BOLT SMALL
114G0812
Unavailable
29
BRACKET,MUFFLER
18024-021
$24.03
30
BOLT,FLANGED,8X35
92001-1577
Unavailable
31
WASHER PLAIN 8MM
410B0800
$0.93
32
NUT,8MM
311B0800
$0.67
