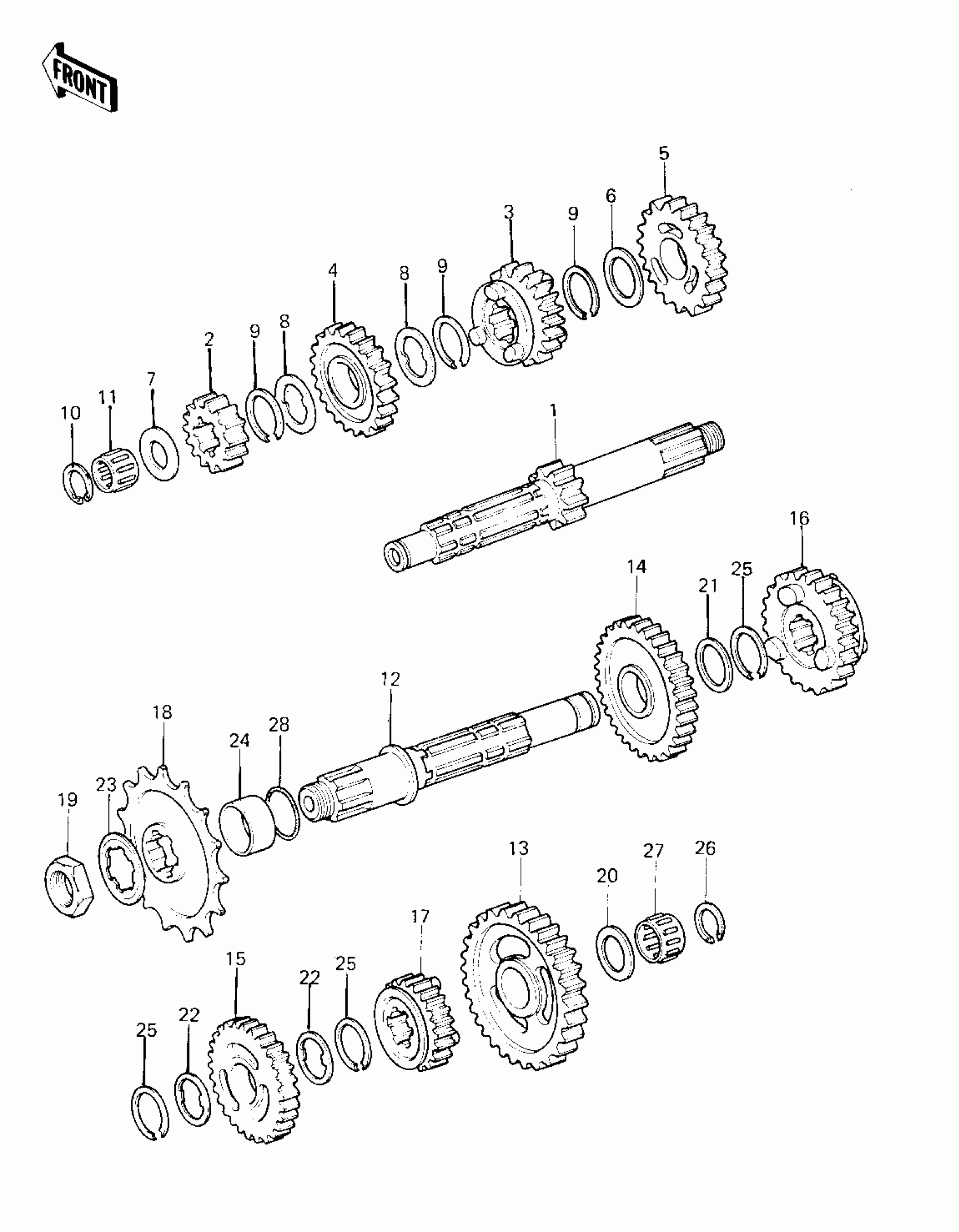

Kawasaki KX420 TRANSMISSION Diagram
#
Description
Price
1
SHAFT-TRANSMISSION IN
13127-1043
Unavailable
2
2ND GEAR,DRIVE,22T
13129-1202
Unavailable
3
3RD GEAR,DRIVE,22T
13129-1126
Unavailable
4
4TH GEAR,DRIVE,22T
13129-1127
Unavailable
5
TOP GEAR,DRIVE,24T
13129-1128
Unavailable
6
WASHER,22.3X27X0.5
92022-198
Unavailable
7
WASHER,PLAIN
92022-281
Unavailable
8
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
9
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
10
RING-SNAP
92033-032
Unavailable
11
BEARING-NEEDLE
92046-1184
Unavailable
12
SHAFT,OUTPUT
13128-1023
Unavailable
13
GEAR,OUTPUT LOW,32T
13129-1180
Unavailable
14
GEAR-OUTPUT 2ND,32T
13129-1622
Unavailable
15
GEAR-TRANSMISSION SPU
13129-1679
Unavailable
16
4TH GEAR,OUTPUT,21T
13129-1132
Unavailable
17
TOP GEAR,OUTPUT,19T
13129-1133
Unavailable
18
ENGINE SPROCKET,14T
13144-1006
Unavailable
18
ENGINE SPROCKET 13T
13144-055
Unavailable
18
SPROCKET,ENGINE,15T
13144-1026
Unavailable
19
NUT BEARING ADJUST
42045-008
Unavailable
20
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
21
WASHER,25.3X30X0.5
92022-159
Unavailable
22
WASHER,TOOTHED,22.5X31X0.5
92024-038
Unavailable
23
WASHER,LOCK
92024-065
Unavailable
24
COLLAR,25X32X10.5
92143-1370
Unavailable
25
RING-SNAP,24MM
92033-026
Unavailable
26
RING-SNAP,18MM
92033-029
Unavailable
27
BEARING-NEEDLE,KT202614
92046-1170
Unavailable
28
RING-O
92055-035
Unavailable
