Description

Price

1

SHAFT-SWING ARM

33032-1020

$119.20

2

SLEEVE,SWING ARM

42036-1031

Unavailable

3

NUT-LOCK,14MM

92019-011

Unavailable

4

ARM,SWING

33001-1043

$418.68

5

CAP,SWING ARM

11012-1099

$29.79

6

SHIM,SWING ARM

92025-1116

Unavailable

7

BUSHING

92028-1072

Unavailable

8

GUIDE,CHAIN,FRONT

12053-1046

Unavailable

9

GUARD,CHAIN

55020-1038

Unavailable

10

BOLT-UPSET

112G0660

Unavailable

11

WASHER,6.5X20X1.6

92022-125

$1.40

12

GUIDE,CHAIN,REAR

12053-1039

Unavailable

13

NUT,LOCK,6MM

92019-008

$4.26

14

BOLT-UPSET,6X20

112G0620

$2.12

15

ADJUSTER,CHAIN

33040-1012

$45.58

16

NUT,8MM

312G0800

$3.22

17

BOLT,CHAIN ADJUSTER

92001-1027

Unavailable

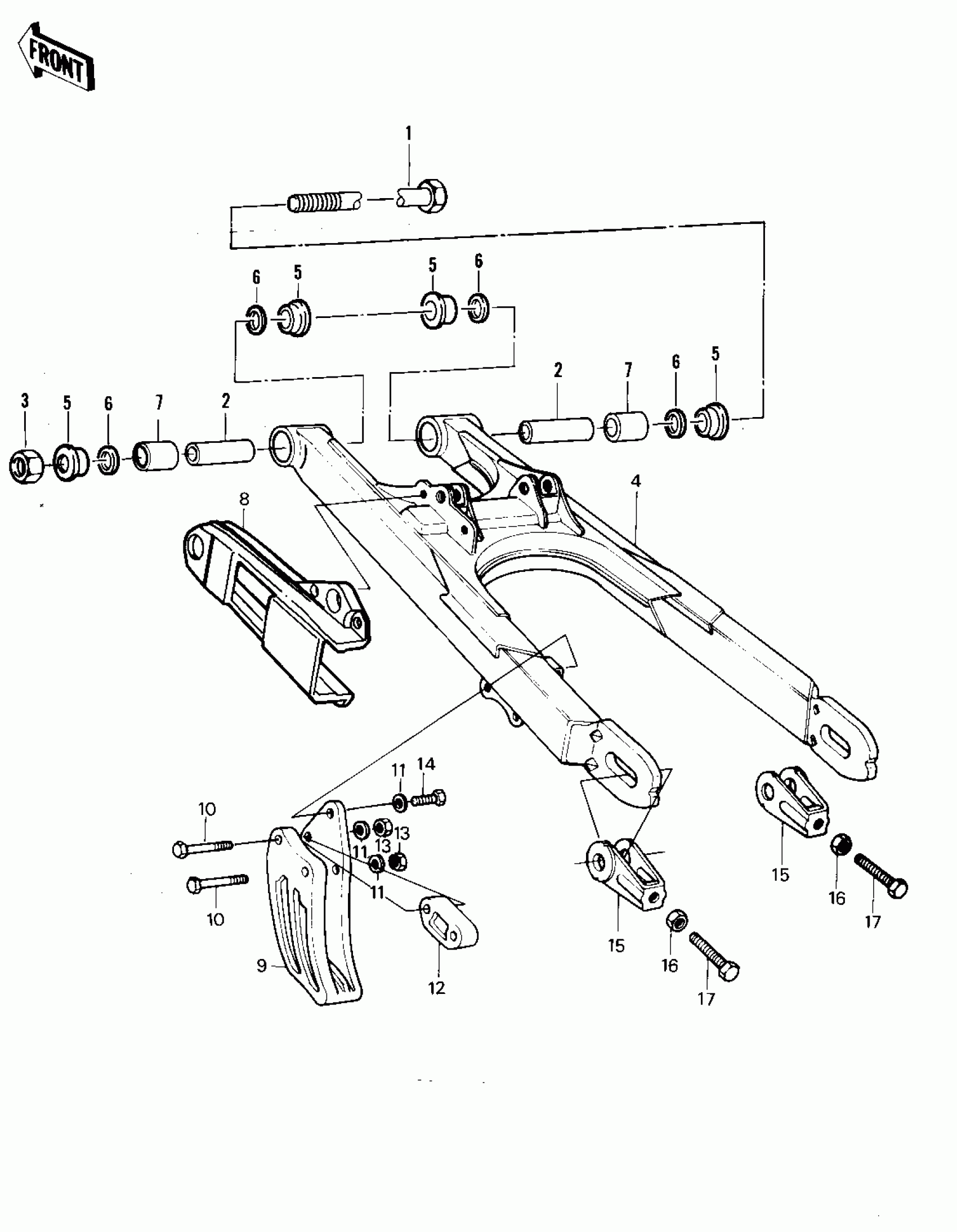

Kawasaki KX420 SWING ARM (KX420-A1) Diagram

SHAFT-SWING ARM

SLEEVE,SWING ARM

NUT-LOCK,14MM

ARM,SWING

CAP,SWING ARM

SHIM,SWING ARM

BUSHING

GUIDE,CHAIN,FRONT

GUARD,CHAIN

BOLT-UPSET

WASHER,6.5X20X1.6

GUIDE,CHAIN,REAR

NUT,LOCK,6MM

BOLT-UPSET,6X20

ADJUSTER,CHAIN

NUT,8MM

BOLT,CHAIN ADJUSTER
