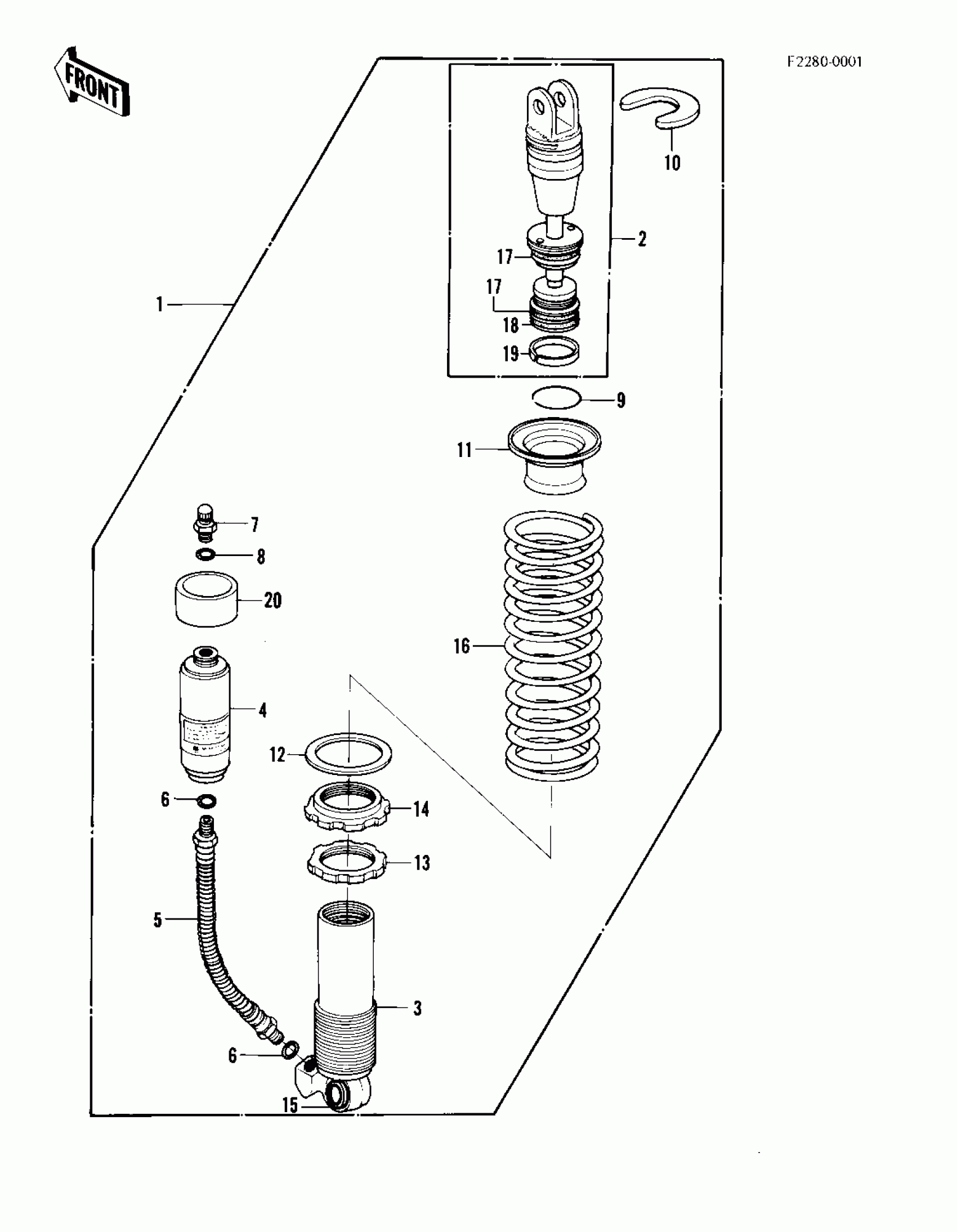

Kawasaki KX420 SHOCK ABSORBER (KX420-A2) Diagram

#

Description
Price

1

SHOCK ABSBR RR

45014-1116

$574.80

2

ROD,SHOCKABSORBER

46102-1028

$526.30

3

CYLINDER-SHOCKABSORBE

43089-1022

$278.00

4

TANK-OIL,SHOCKABSORBR

52001-1012

$146.86

5

PIPE-COMP-SUSP

39093-1053

$101.68

6

"0" RING

92055-1099

Unavailable

7

VALVE ASSY,AIR

16126-1003

Unavailable

8

"0" RING,AIR VALVE

92055-1018

Unavailable

9

RING-SNAP,AIR VALVE

92033-1061

$3.80

10

GUIDE,SPRING

13070-1041

Unavailable

11

GUIDE,SPRING

13070-1042

Unavailable

12

WASHER,SPRING

92022-1235

$10.34

13

NUT,SPRING ADJUST

92015-1139

$30.21

14

NUT,SPRING ADJUST

92015-1140

Unavailable

15

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$34.49

16

SPRING,RR SHOCK,STD

92081-1372

$223.38

16

SPRING

92081-1320

$180.98

16

SPRING

92081-1322

$172.38

17

"0" RING,REAR SHOCK

92055-1102

$6.00

18

"0" RING,REAR SHOCK

92055-1103

Unavailable

19

BUSHING,REAR SHOCK

92028-1127

Unavailable

20

GUARD,AIR TANK

55020-1044

Unavailable
